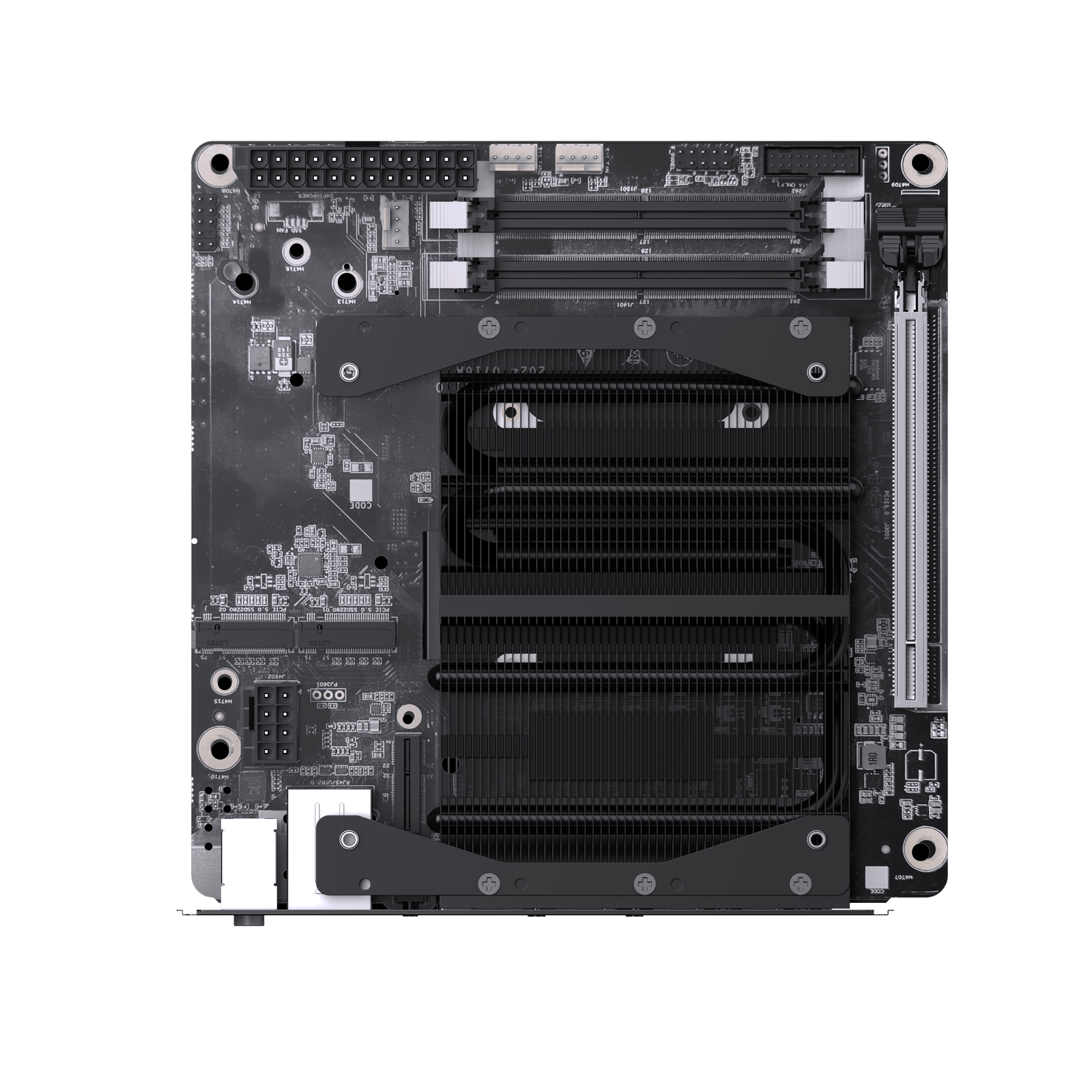

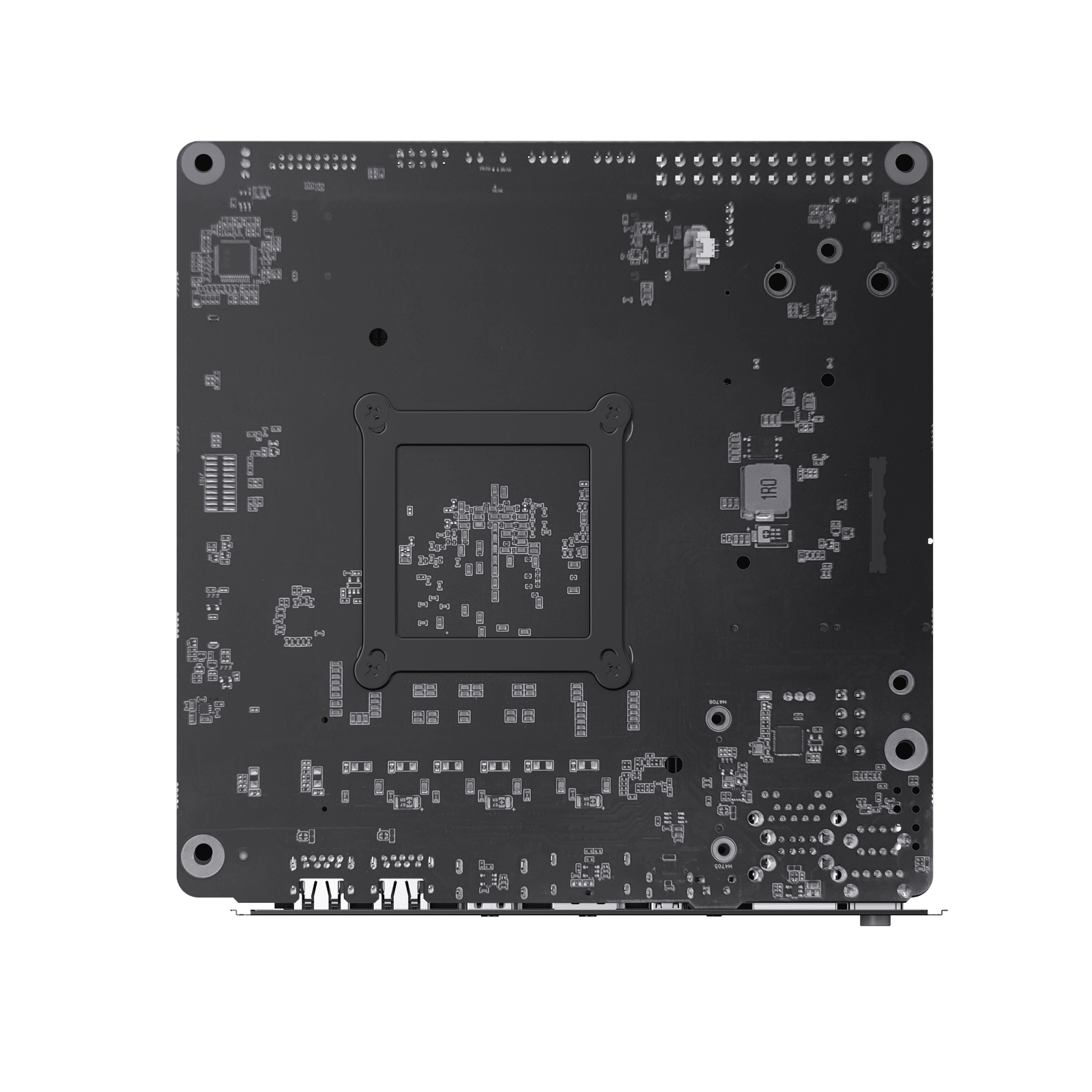

MINISFORUM BD895i SE Motherboard Refurbished
- AMD Ryzen™ 9 8945HX, 16 Cores/32 Threads
- Dual DDR5-5200 MHz | Up to 96GB
- 2×M.2 2280 NVME SSD Slot (up to 4TB)(PCIe 4.0 × 4)
- PCle5.0 × 16 Expansion Slot
- Support Triple-screen Display | 8K@60Hz
Power at Its Core
Powered by the

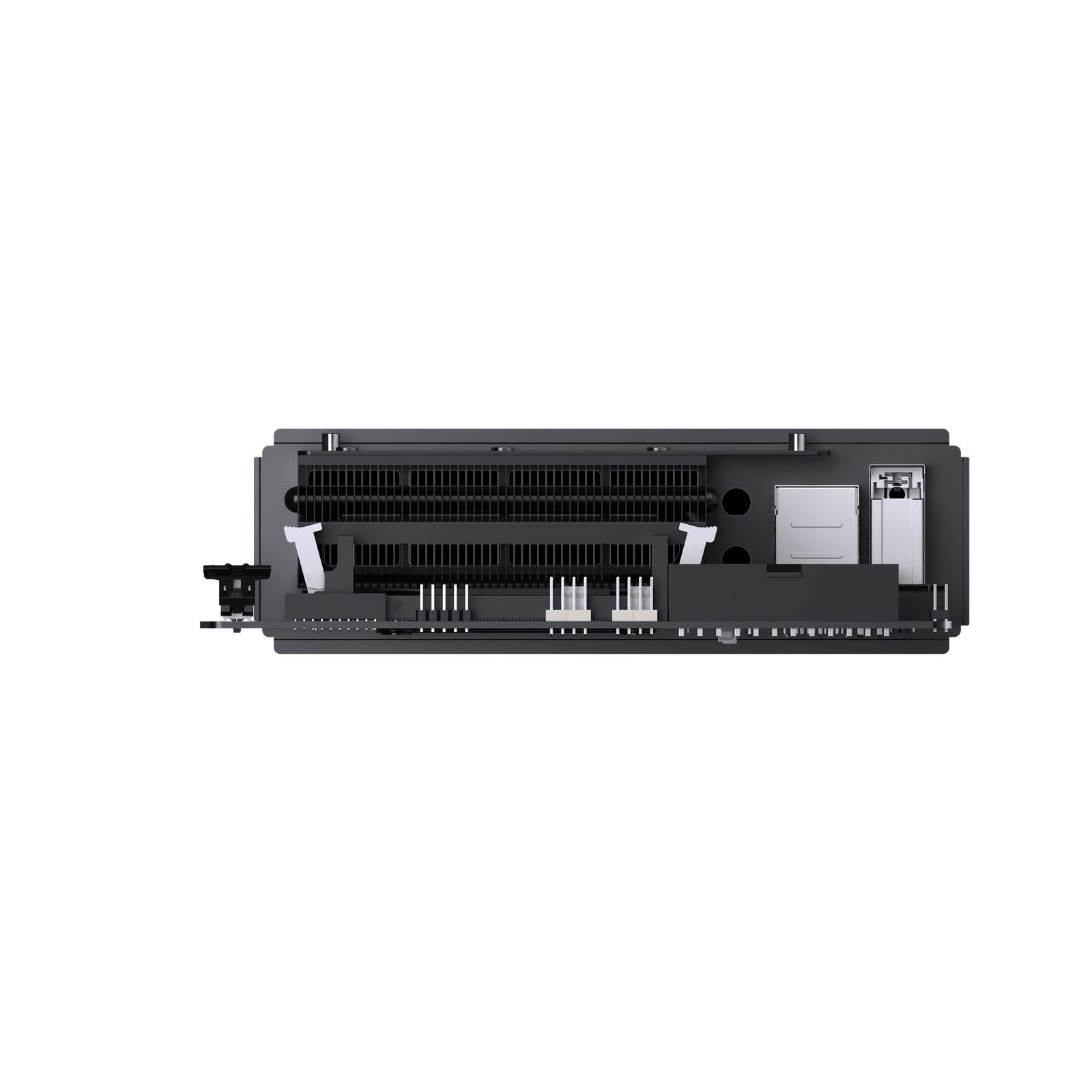

Expansion Freedom
2 X M.2 2280 PCIe 4.0 x4 SSD Slots
1x PCle5.0 x16 (Full-Speed Graphics Slot)

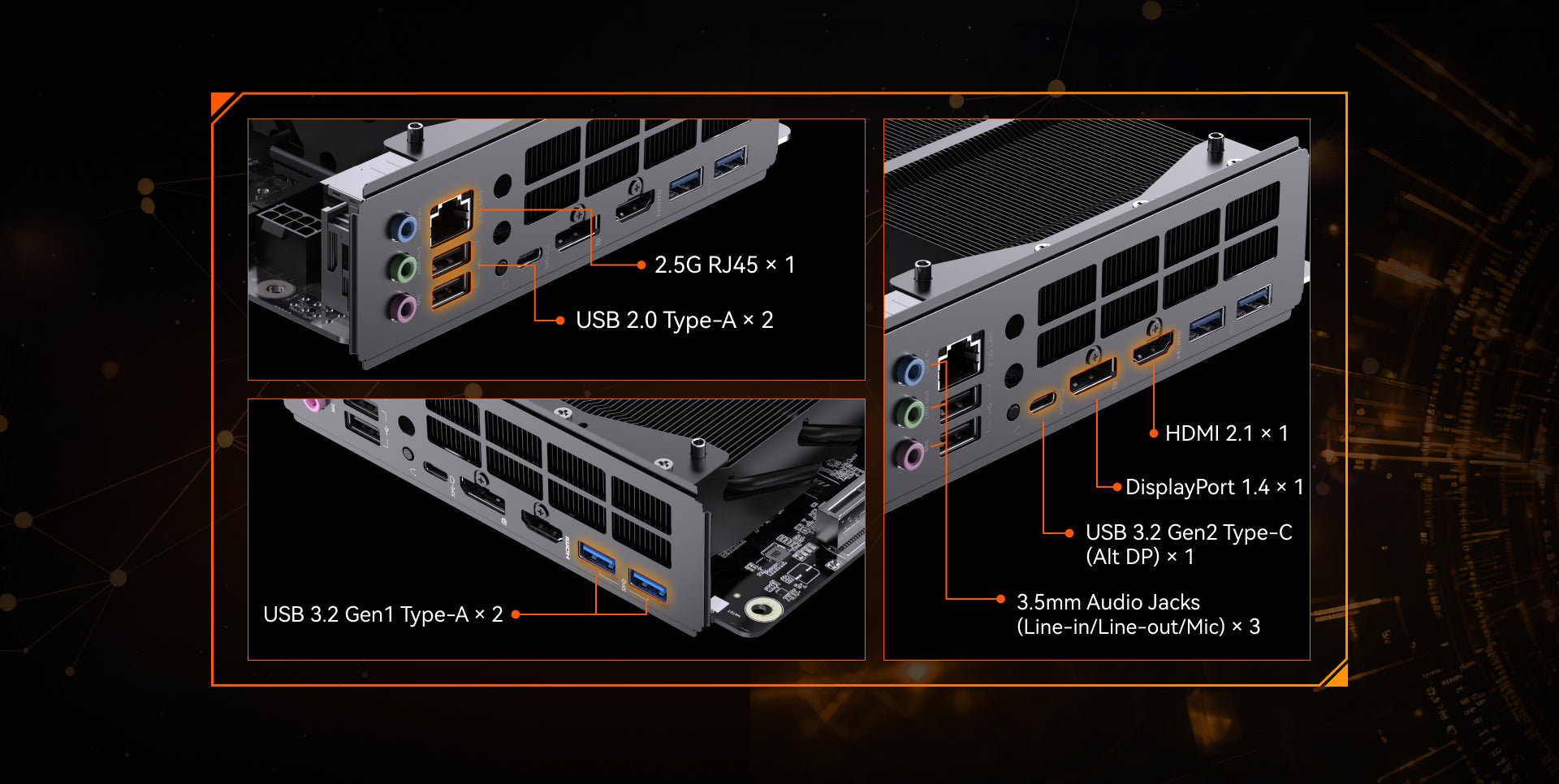

Rich Connectivity
Loaded with high-speed USB ports (including USB-C), dual video outputs
(HDMI 2.1 & DP 1.4), a 2.5G Ethernet jack, and multi-channel audio
Expand Your View
Supports simultaneous triple-screen display output
Supports up to
Power Starts Here
Revolutionize Your Creative Workflow
Ryzen 9 + Dedicated GPU: Smooth Creation for Design, Edit, Code
Alongside Gamers, Conquer Every World
Specification
MINISFORUM BD895i SE
Processor: AMD Ryzen™ 9 8945HX
Total Cores: 16
Total Threads: 32
Frequency: 2.5 GHz
Max Turbo Frequency: 5.4 GHz
TDP: 100W, 120W Max Turbo

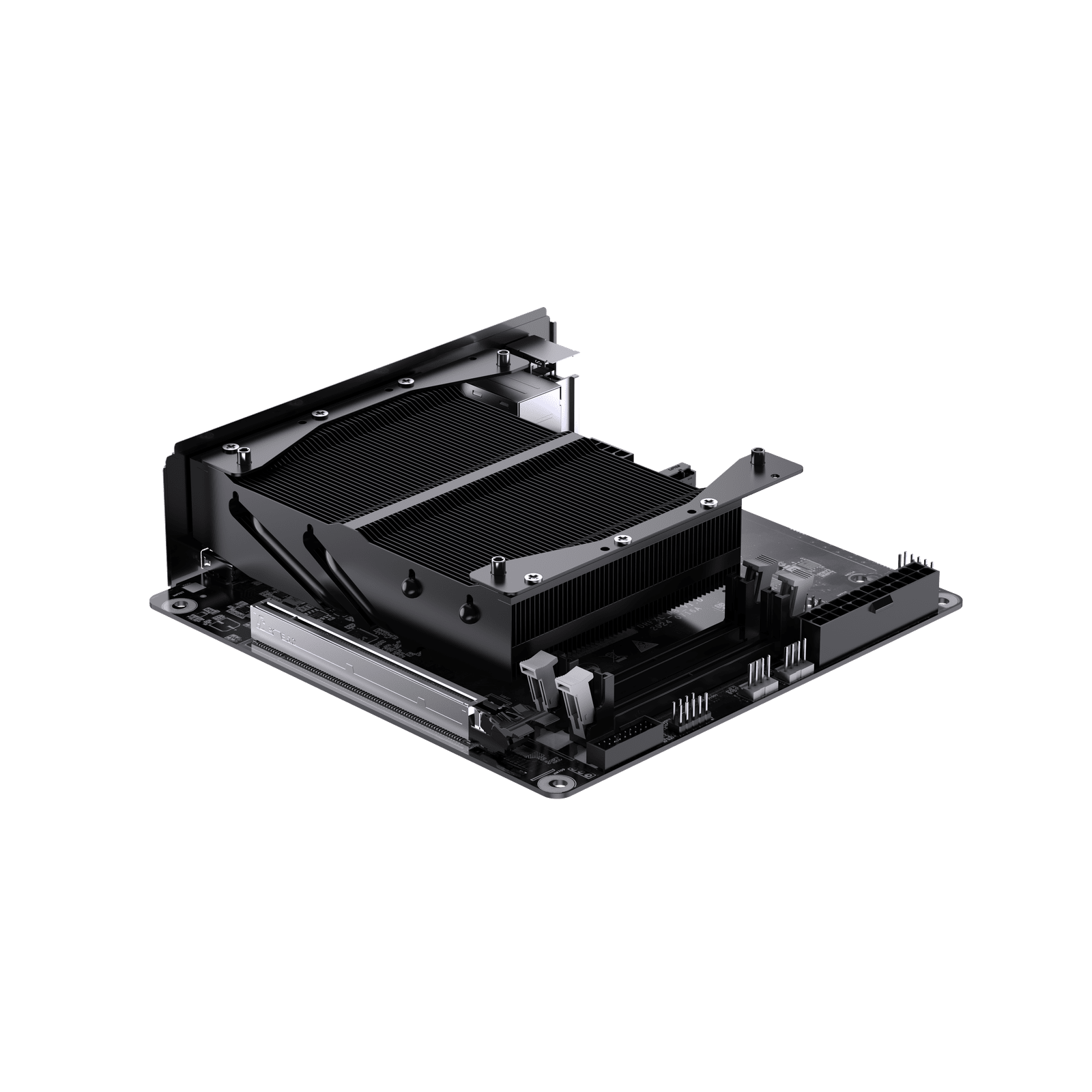

CPU Cooler height: 37mm(12cm fan not included)
Graphics Cards: AMD Radeon™ 610M
1×PCle 5.0×16 Connector
Memory Type: DDR5 (SO-DIMM x 2)
Max Speed Support: 5200MHz
Max Capacity Support: 96GB
Storage Type: 2xM.2 2280 NVME SSD Slot (up to 4TB)(PCle4.0x4)
Optional SKU SSD Capacity: N/A
M.2 2230 E-Key(PCle Only)

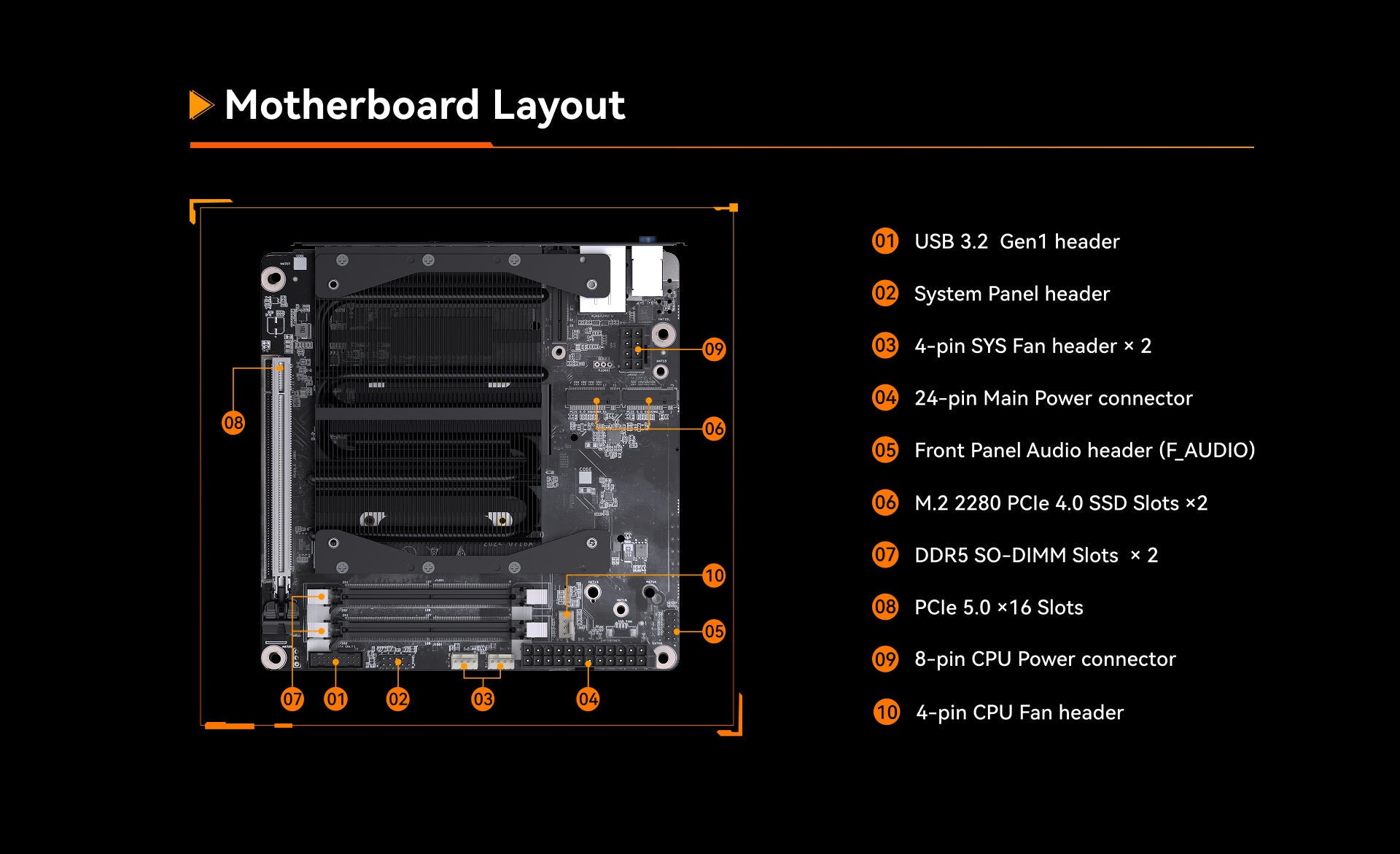

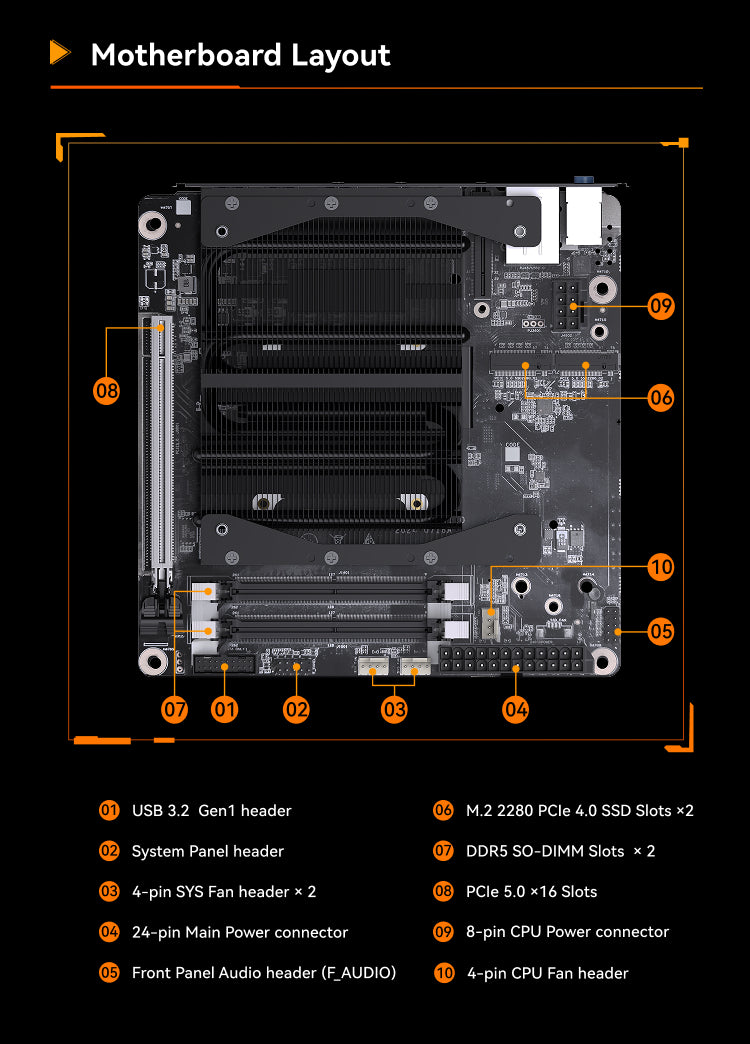

1×24-pin Main Power connector
1x8-pin +12V CPU Power connector

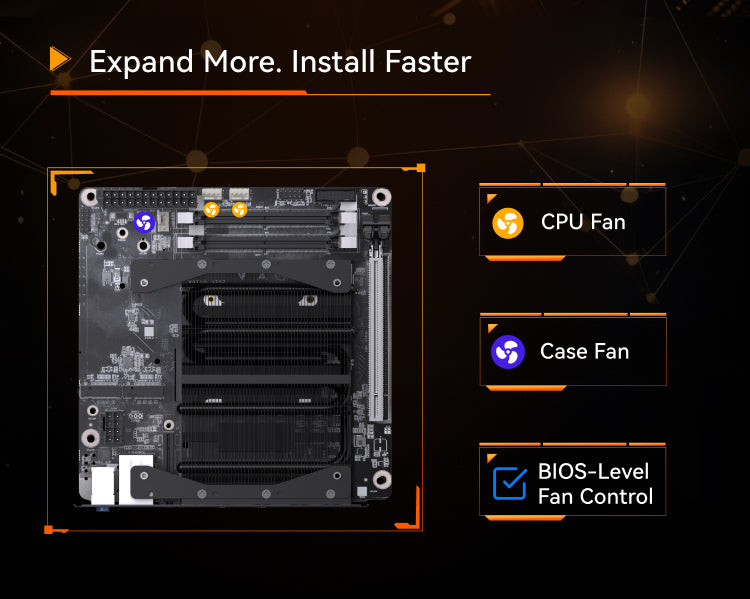

1x4-pin CPU Fan header
2 x 4-pin SYS Fan header
1×System Panel header
1xFront Panel Audio header (F_AUDIO)
1×USB 3.2 Gen1 header
HDMI™ 2.1 FRL x 1 (Up to
8K@60Hz/4K@120Hz)
DP 1.4 x 1 (Up to 8K@60Hz/4K@120Hz)
1 x USB-C (Up to 8K@60Hz/4K@120Hz)
HDMI™ x1
Line Out x1
Line in x1
Mic x1

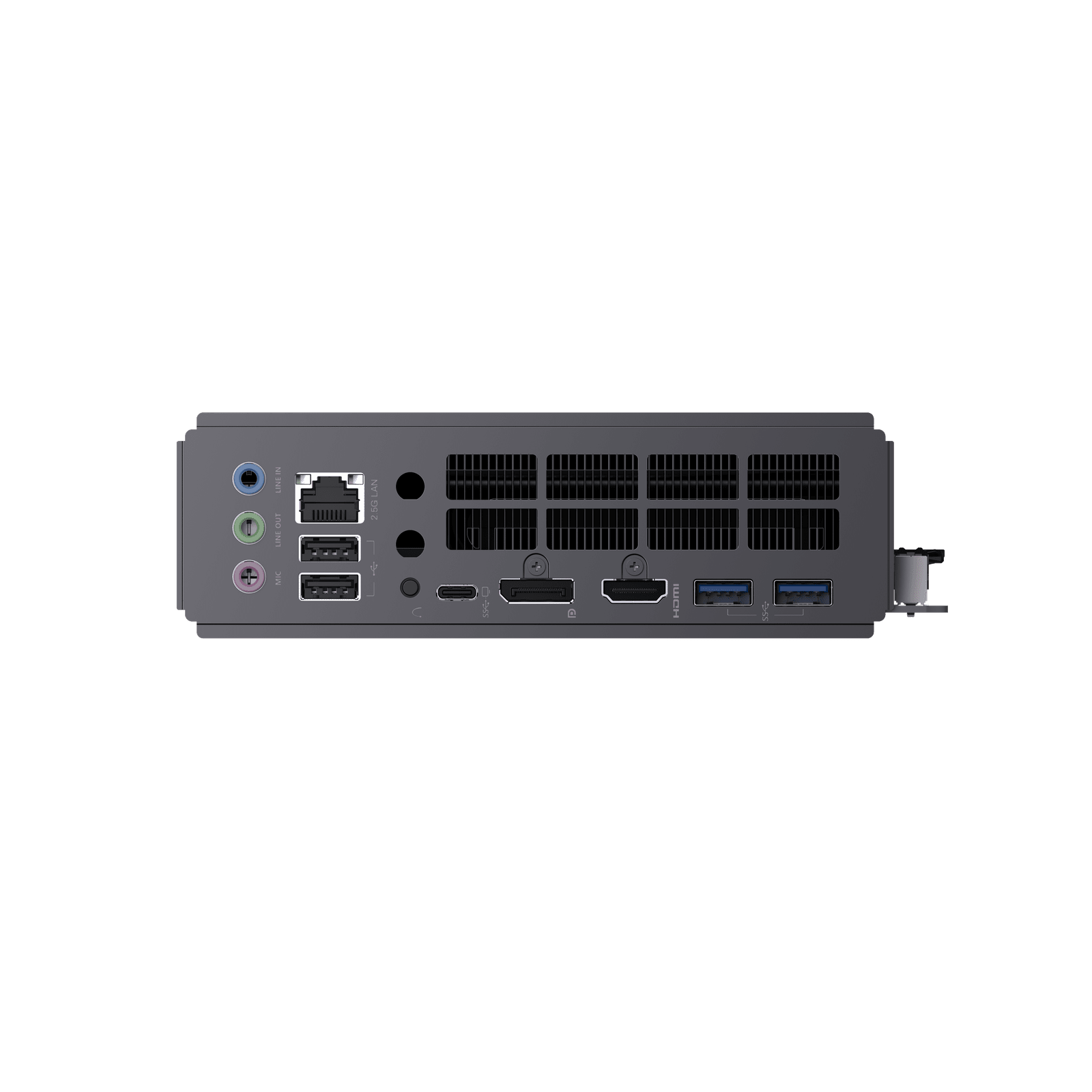

2.5Gigabit LAN(RJ45) x1
USB Type A(USB2.0) x2
USB Type A(USB3.2 Gen1) x2
USB Type C (USB3.2 Gen2)(Alt DP) x1
HDMI2.1 x1
DP1.4 x1
Line in x1
Line Out x1
Mic x1
CLR COMS x1
ATX Power(>200W)
Windows 11
170x170x1.6mm(LWH)
