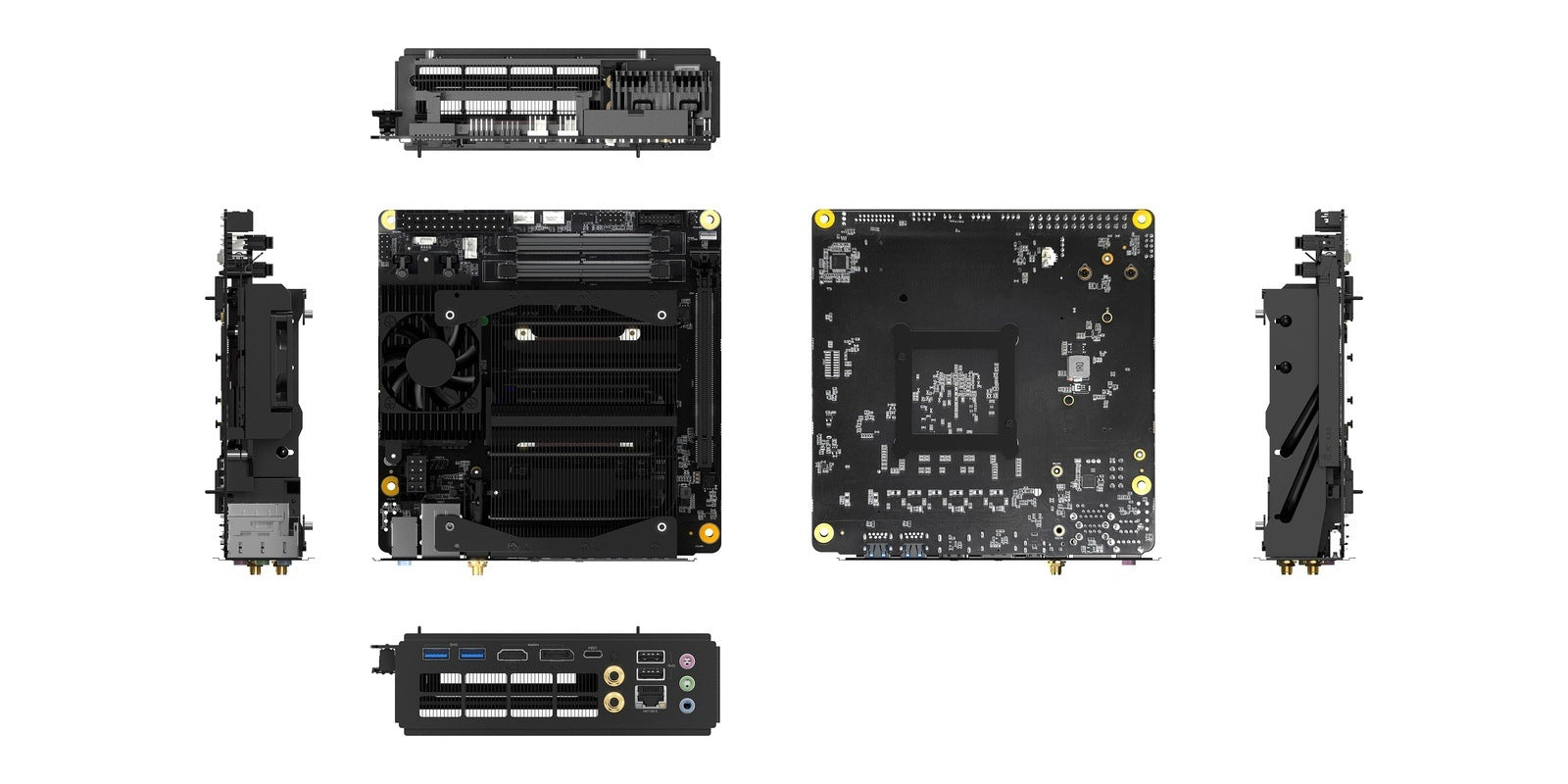

MINISFORUM AR900i Motherboard Refurbished
- Intel® Core™ i9-13900HX
- Intel® HM770
- DDR5 Dual channel (SODIMM Slots×2, up to 5200 MT/s, Max 96GB)
- M.2 2280 PCIe 4.0 SSD Slots *4

Unleashed Performance

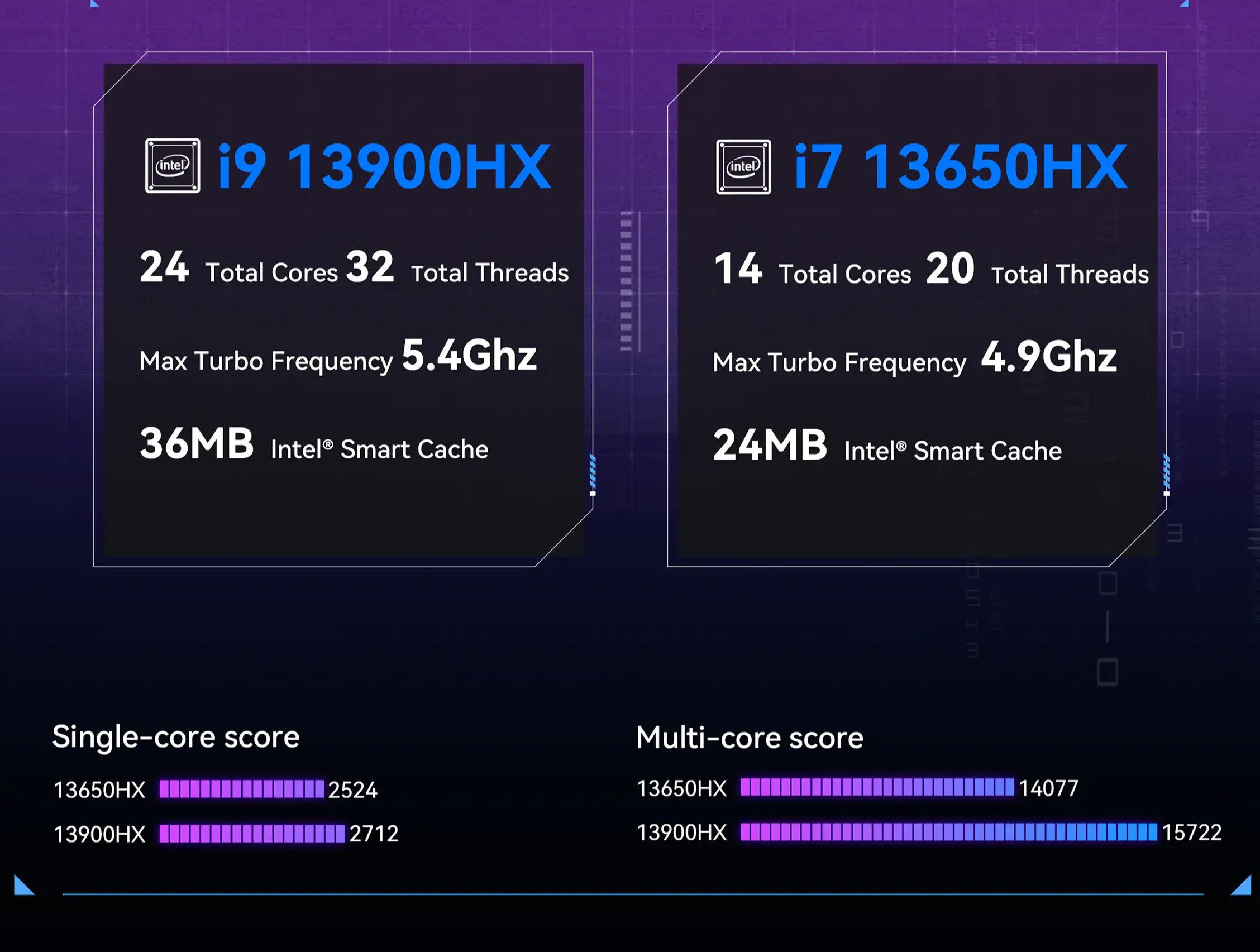

The AR900i motherboard features the 13th generation Core i9-13900HX flagship processor with 24 cores and 32 threads, a maximum RWI frequency of 5.4GHz, and 36MB of cache for gaming performance comparable to 13900K desktop processors.
Highly efficient heat dissipation system

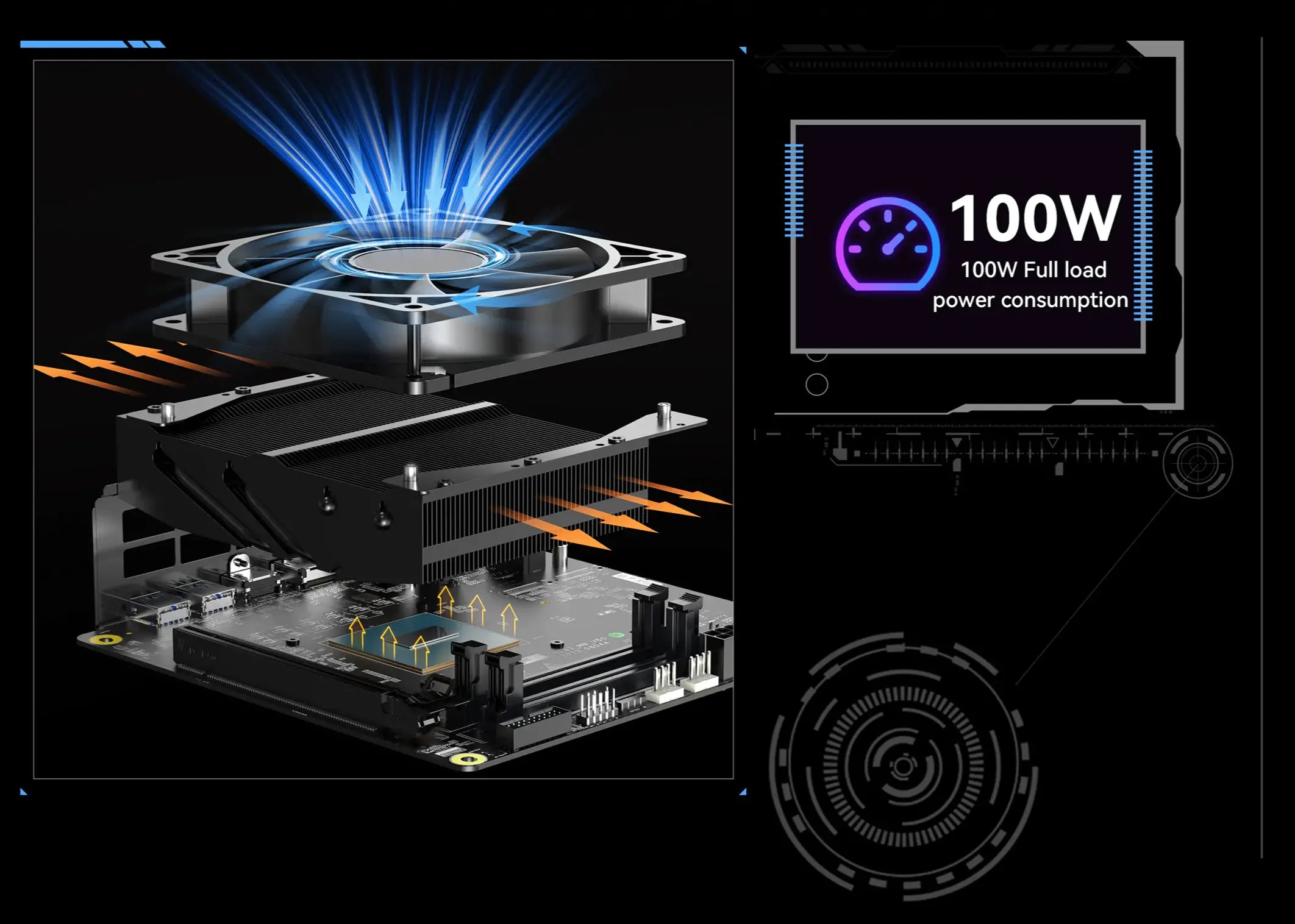

AR900i features a customized CPU heatsink designed for mobile processors. Supporting the customized cooling design of 12CM fan, it significantly improves the cooling efficiency, and with i9-13900HX processor, it provides up to 100W of stable performance release for the system.

Customized CPU coolers
Customized cooling for mobile processors. Very safe and reliable to stabilize performance release
*Support 12CM fan

Custom PCle SSD Cooler
Long-lasting and efficient operation

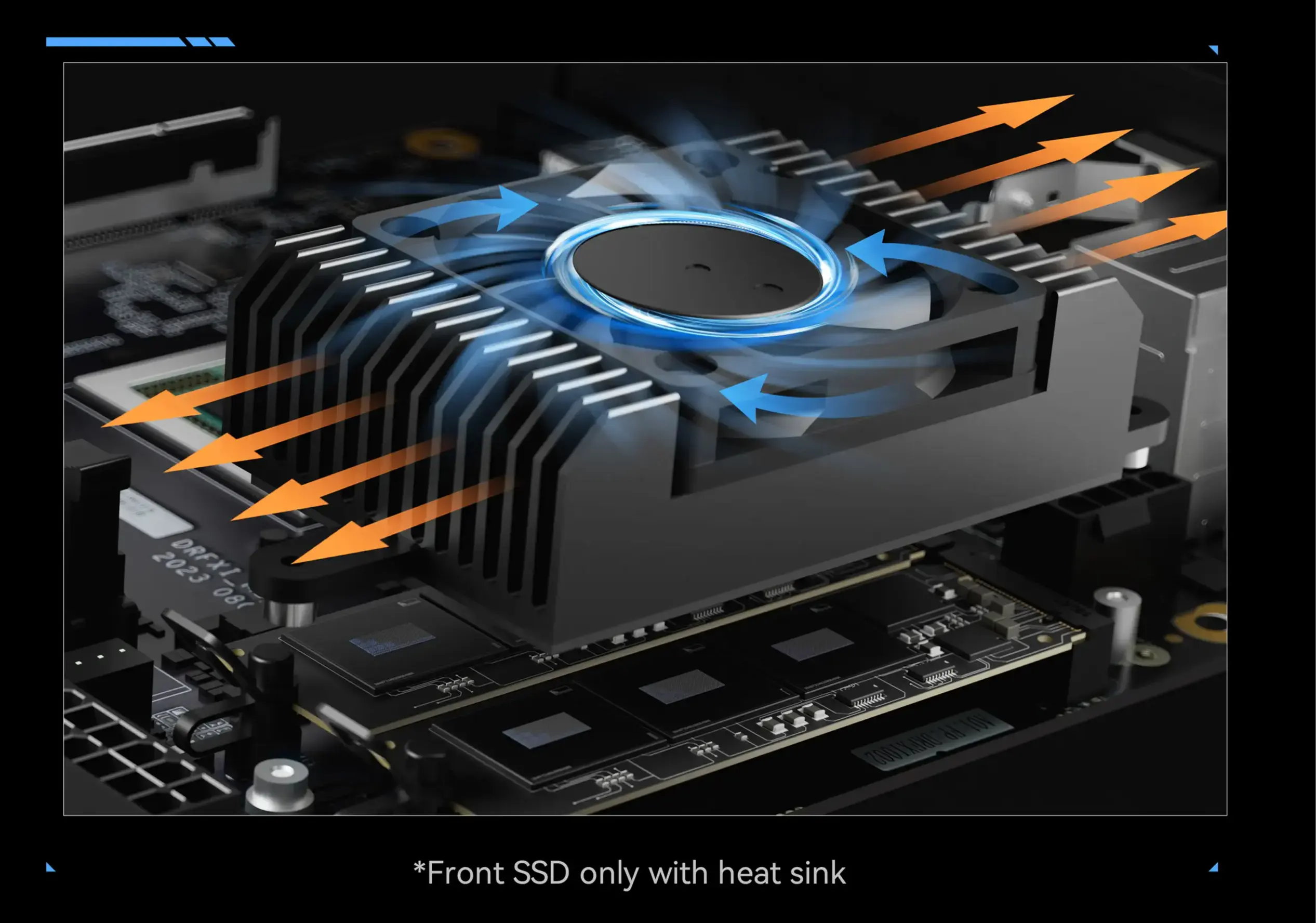

Front SSD only with heat sink

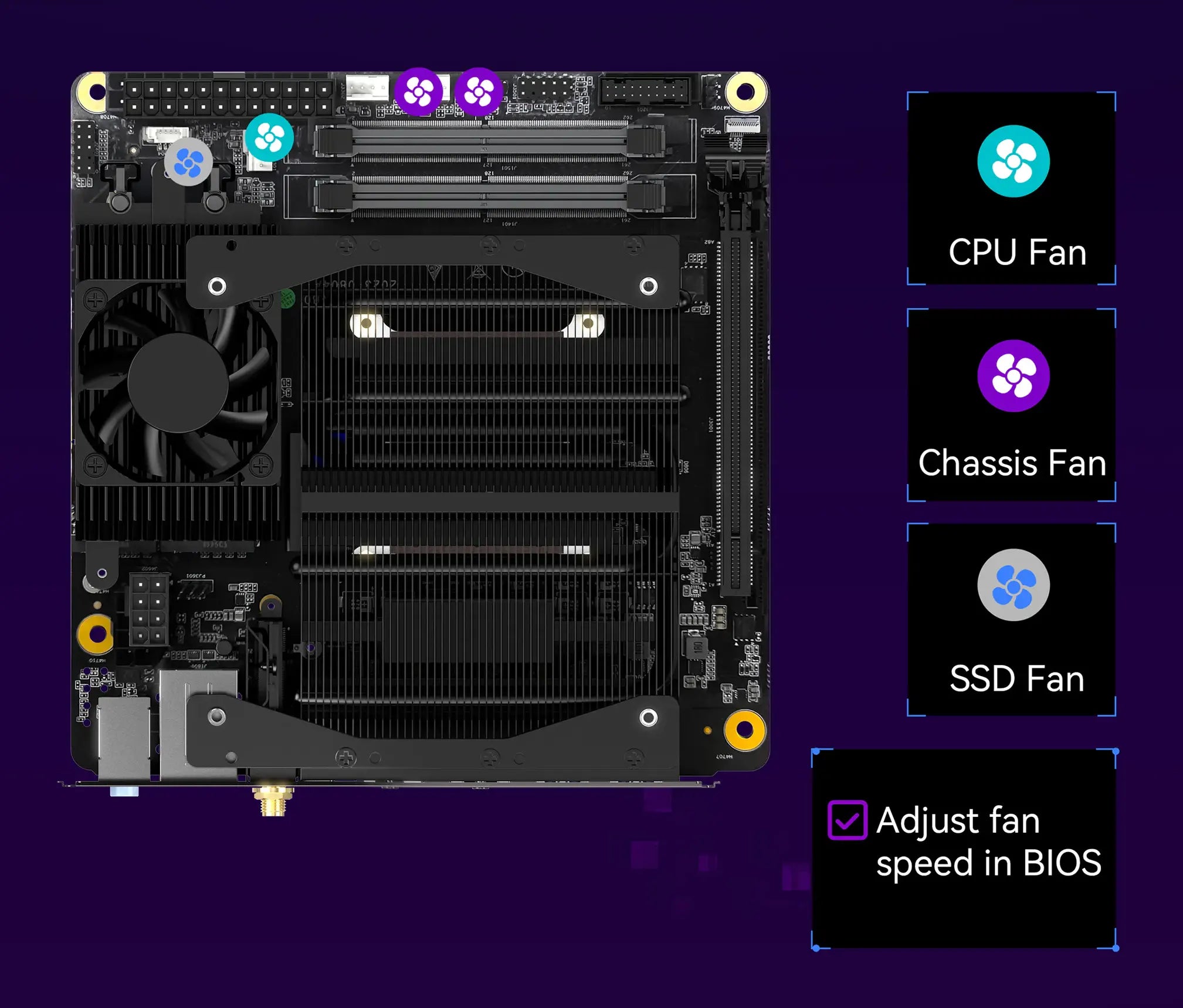

Fan connector pin

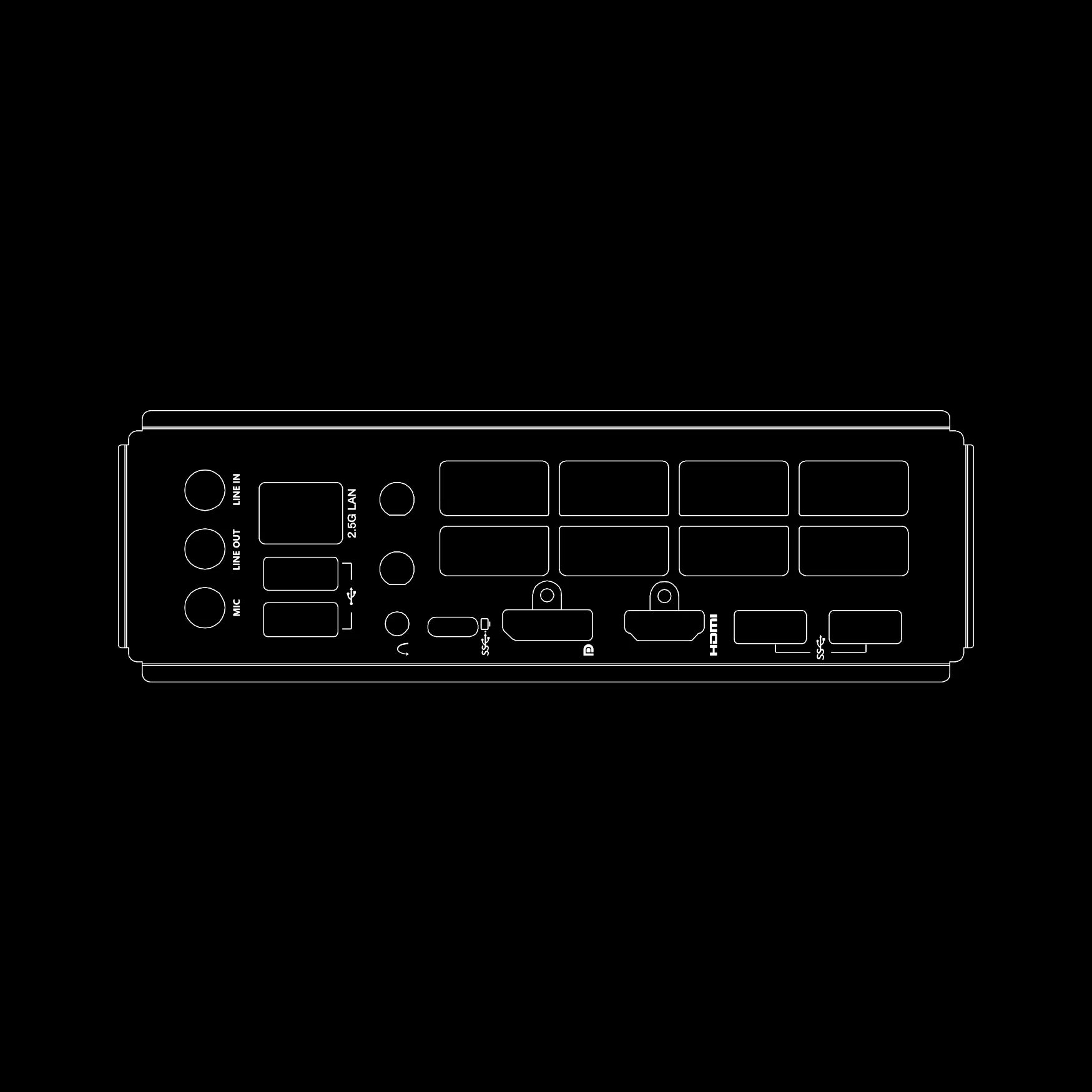

DIYer's Dream: Comprehensive Connectivity
AR900i has a wealth of interfaces.

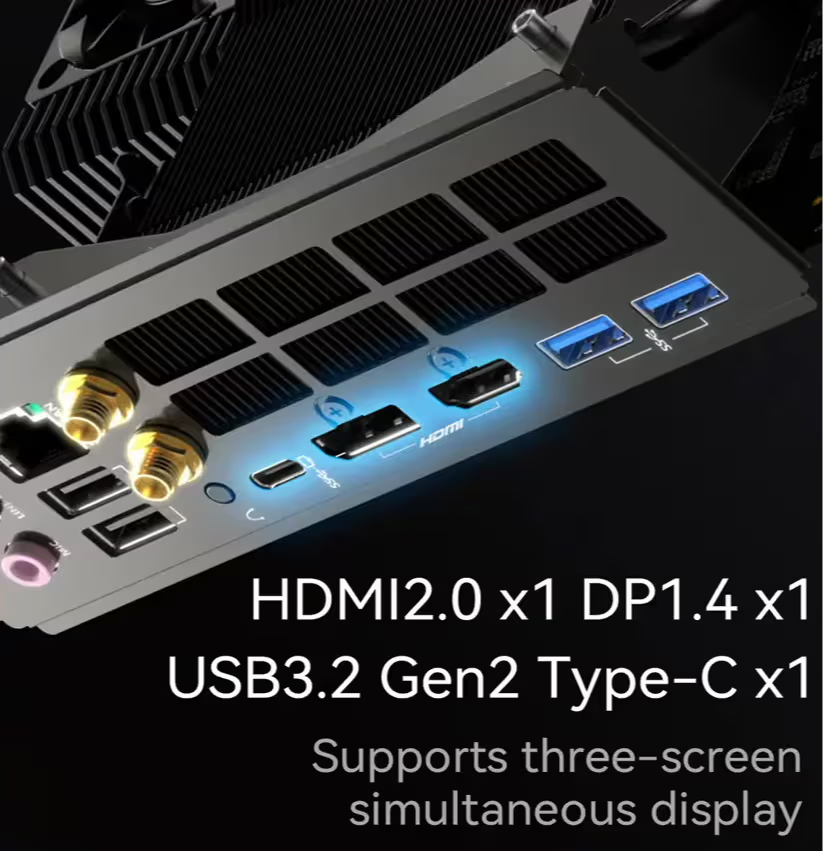

Including 1 * HDMI2.0 & 1 * DP1.4 & 1 * USB 3.2 Gen2 Type-C.

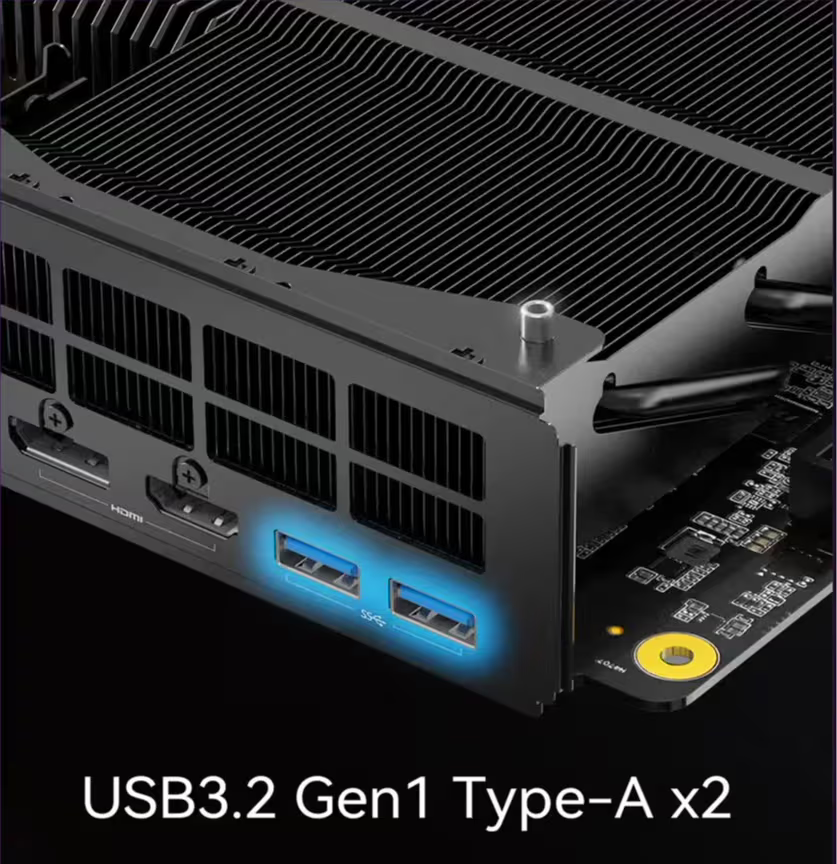

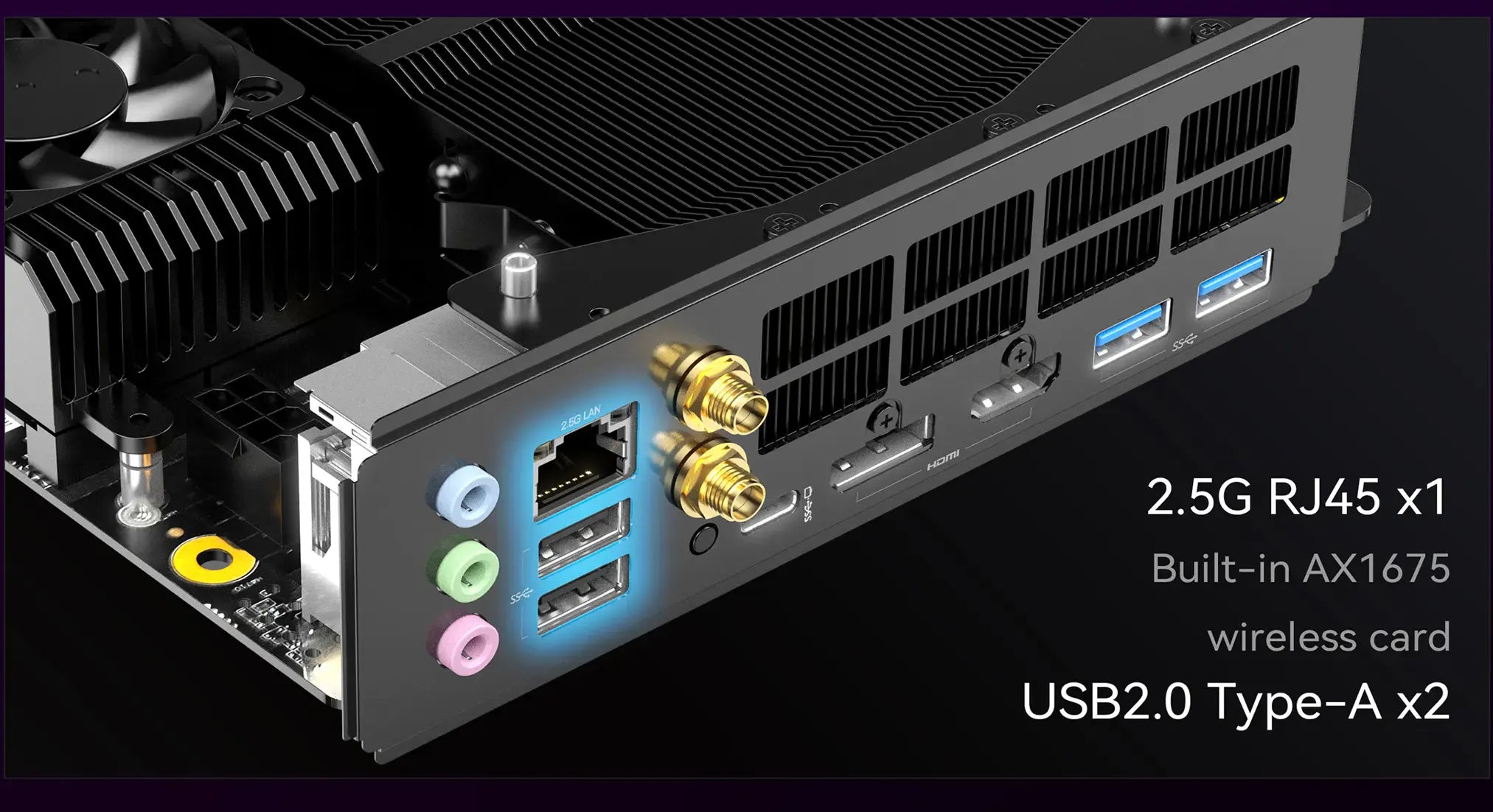

Support for three-screen simultaneous display. Up to 8K display. 2 * USB3.2 Gen1 Type-A & 2 * USB2.0 Type-A & 1 * 2.5G RJ45 network port.
Built-in AX210 wireless network card, support for WiFi6E high channel and Bluetooth 5.3, each speed channel is complete, connection is worry-free.


Ultra-expansive, next-level performance
AR900i has a wealth of interfaces.

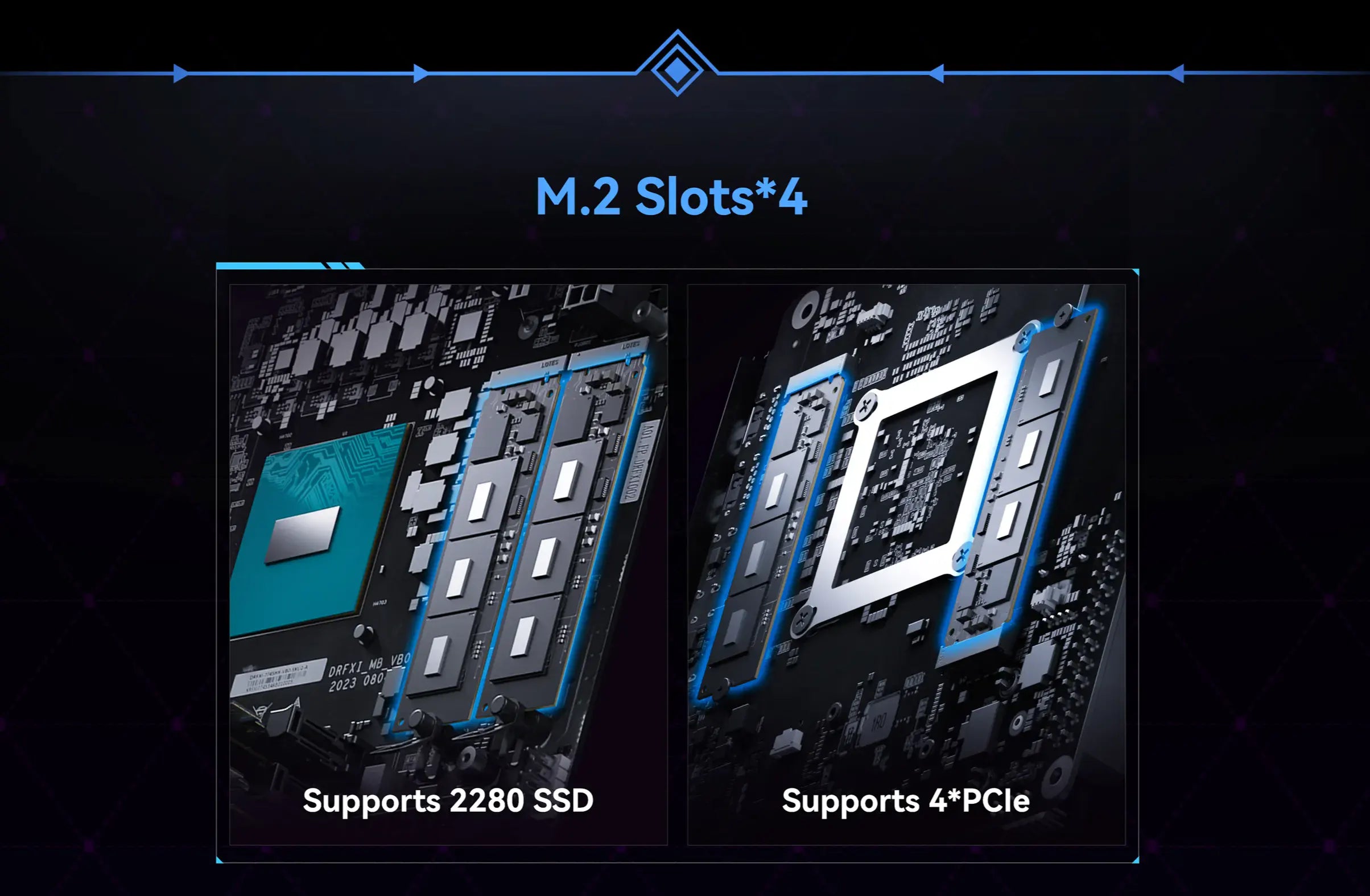

MINISFORUM has taken into consideration the user's need for versatile expansion. AR900i has 4 * M.2 slots, making it easy for gamers to set up their own home NAS system. the addition of PCIe5.0 x16 slot provides users with unlimited expansion possibilities, which can support the latest generation of graphics card standards to meet the needs of 3D rendering, video editing, and more.

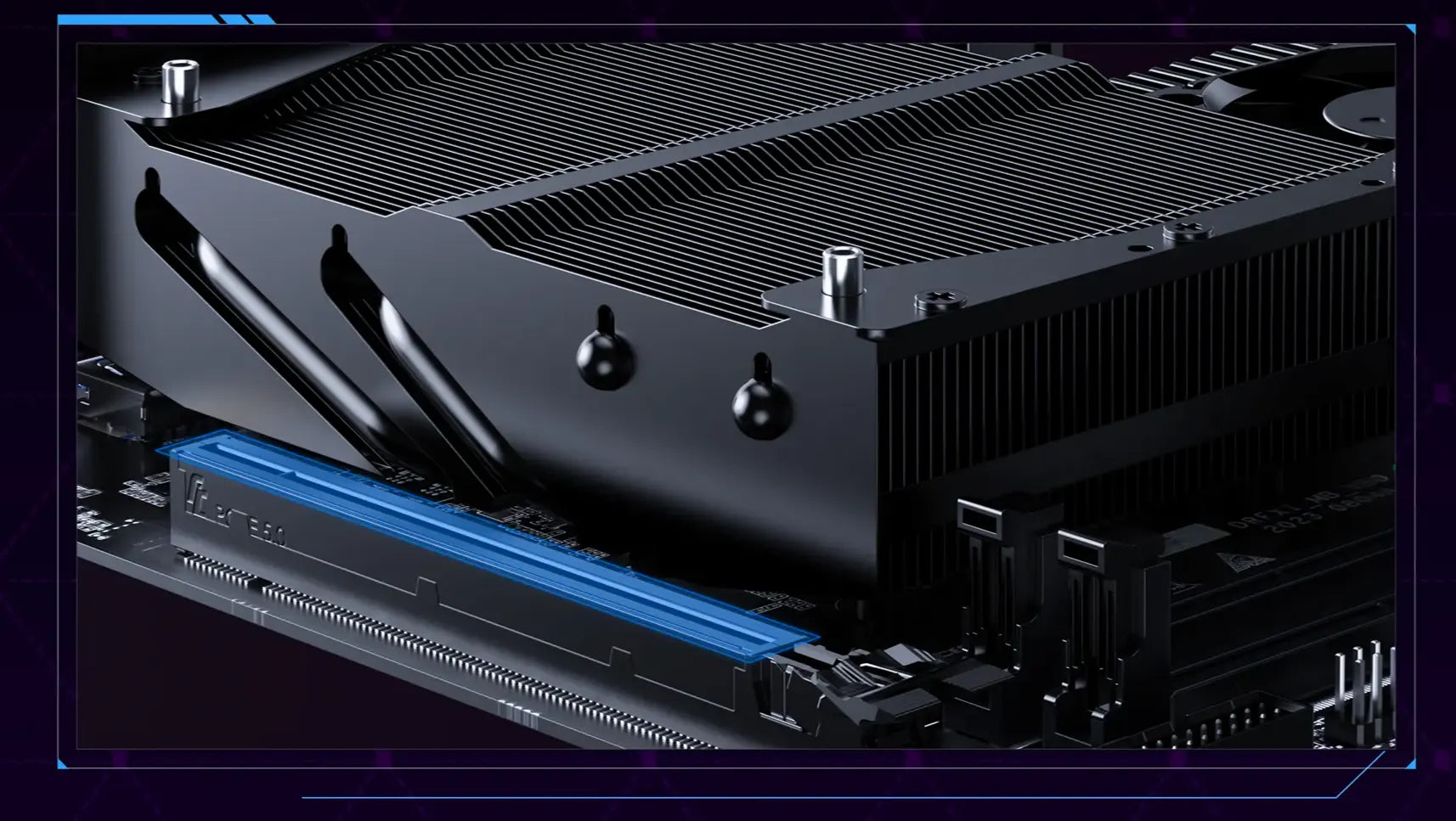

Supports the latest generation of graphics card
Multi-scenario application

3A Gaming

Design/Video editing
What's in the Box

Motherboard

Mounting Screw Set

User Manual

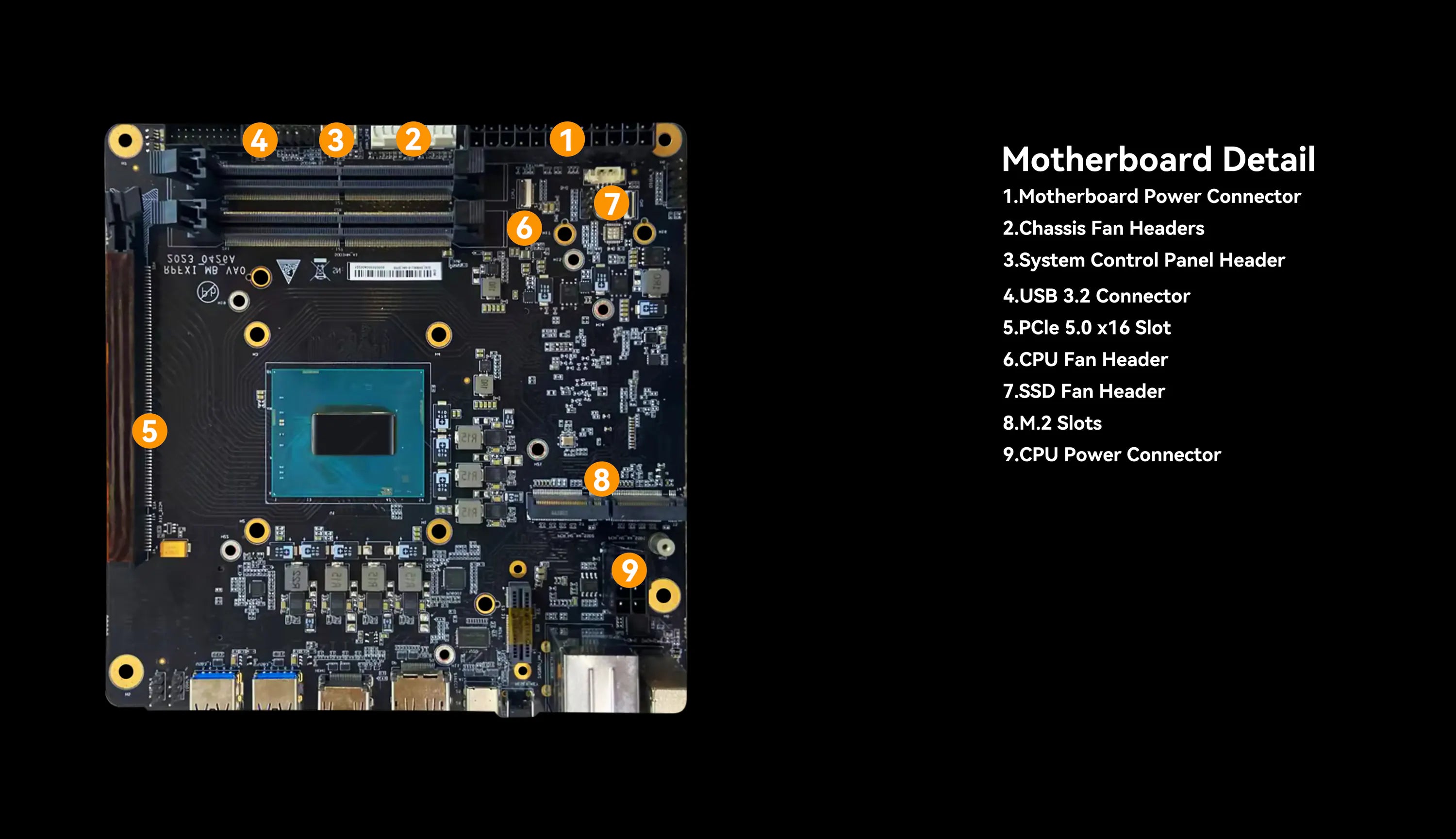

Specification
MINISFORUM AR900i
Intel® Core™ i9-13900HX
Intel® HM770
DDR5 Dual channel (SODIMM Slots×2, up to 5200 MT/s, Max 96GB)
M.2 2280 PCIe 4.0 SSD Slots *4
PCIe 5.0 X16 connector ×1
M.2 2230 Key E Slot
HDMI2.0 (4K@60Hz)×1
DisplayPort1.4 (8K@60Hz)×1
USB-C (4K@60Hz)×1
HDMI2.0 ×1
DisplayPort1.4 ×1
USB-C ×1
Line Out ×1
RJ45 2.5G Ethernet Port×1
USB3.2 Gen2 Type-C Port ×1(Alt DP)
USB3.2 Gen1 Type-A Port ×2
USB2.0 Type-A Port ×2
4-pin CPU Fan header ×1
4-pin System Fan header ×2
4-pin SSD Fan header ×1
USB 3.2 Gen 1 header ×1
Front Panel Audio header ×1
System Panel header ×1
Mini-ITX Form Factor(170x170x1.6mm)
