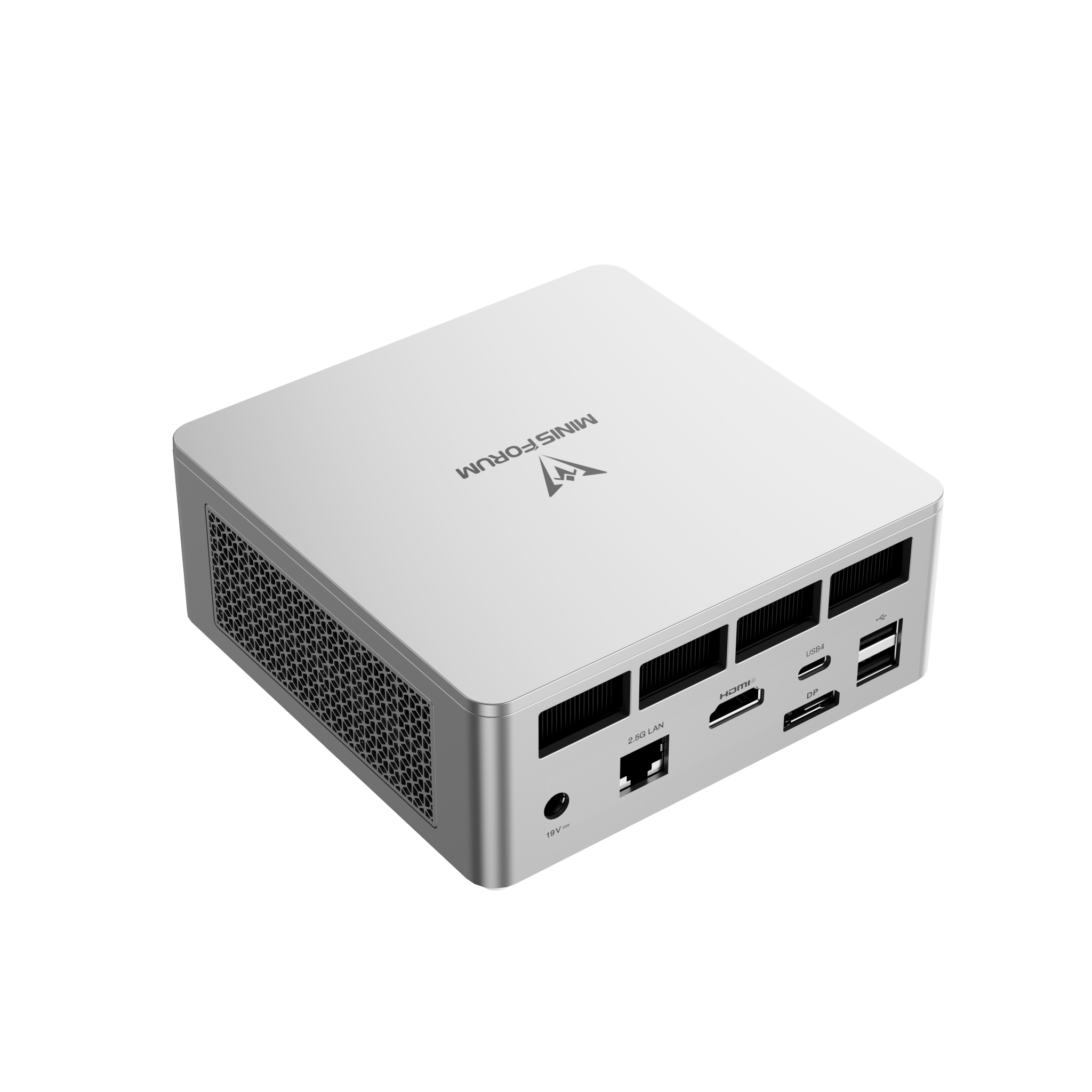

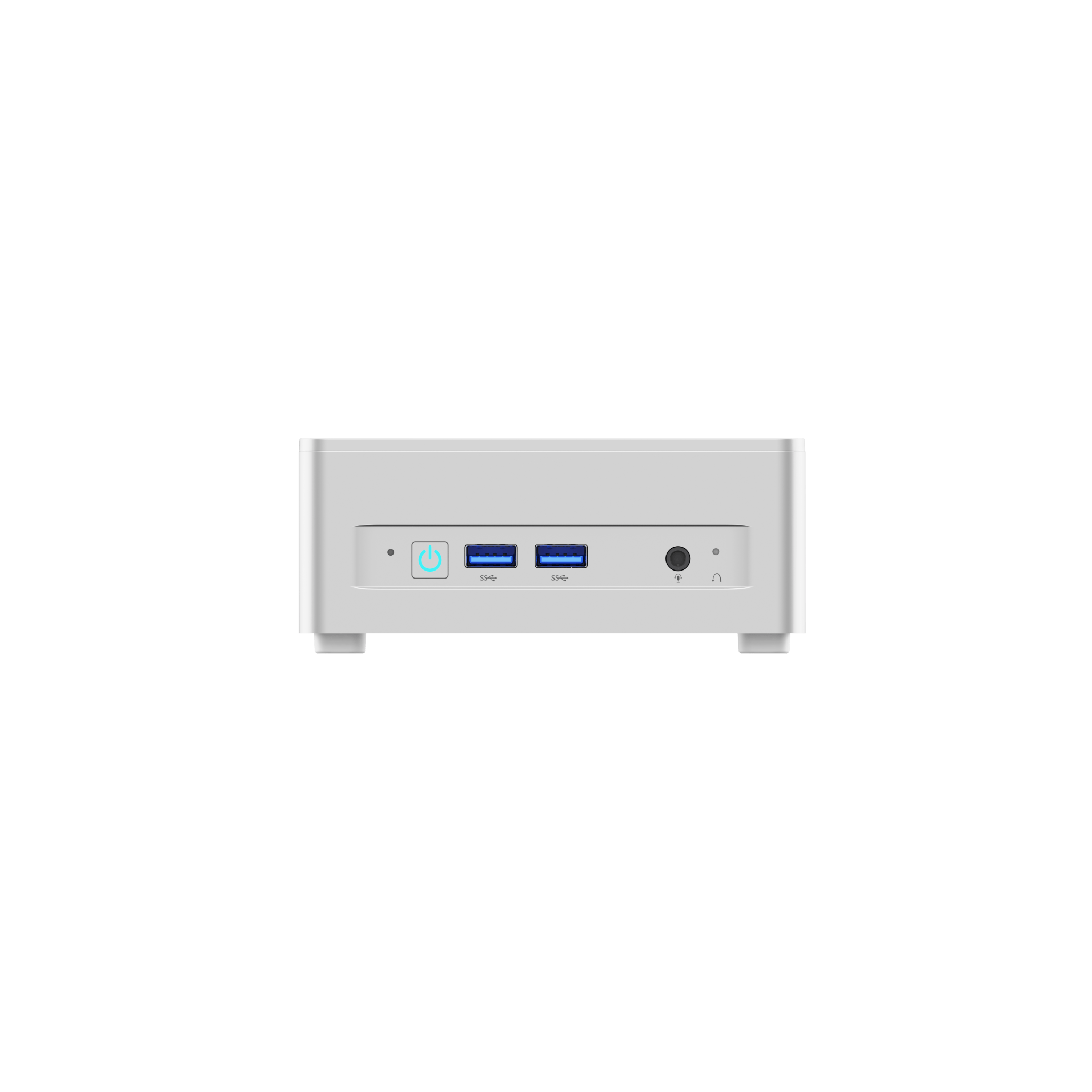

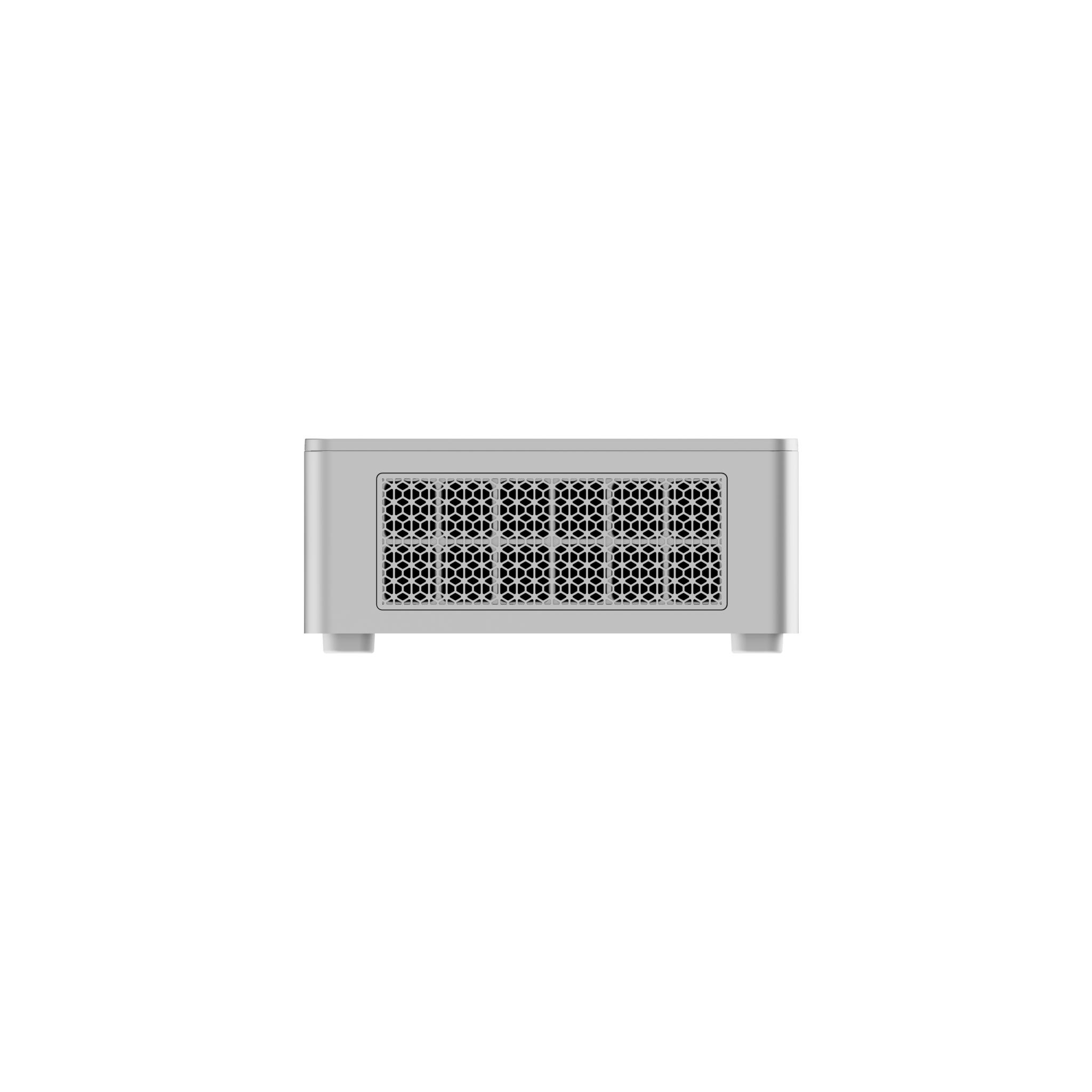

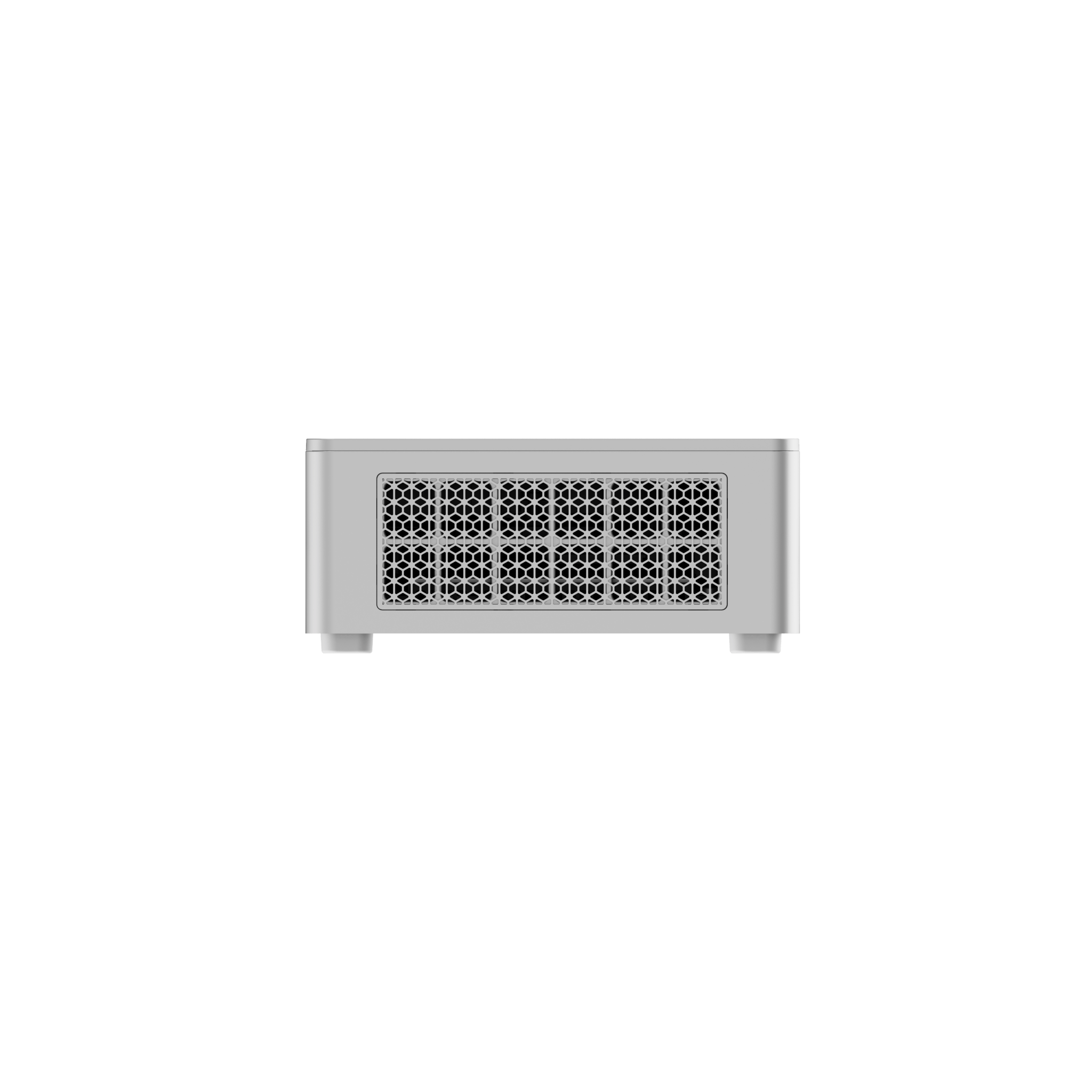

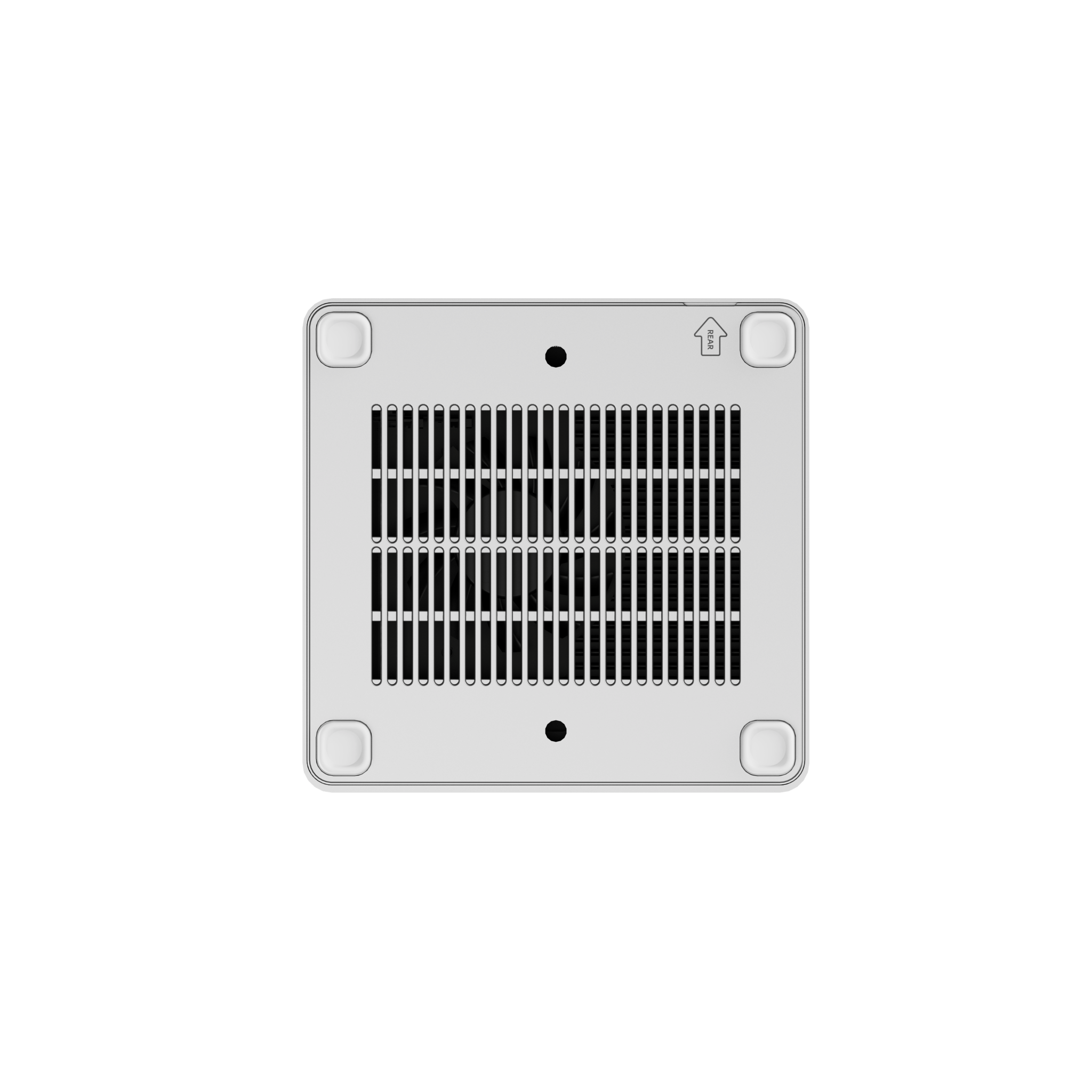

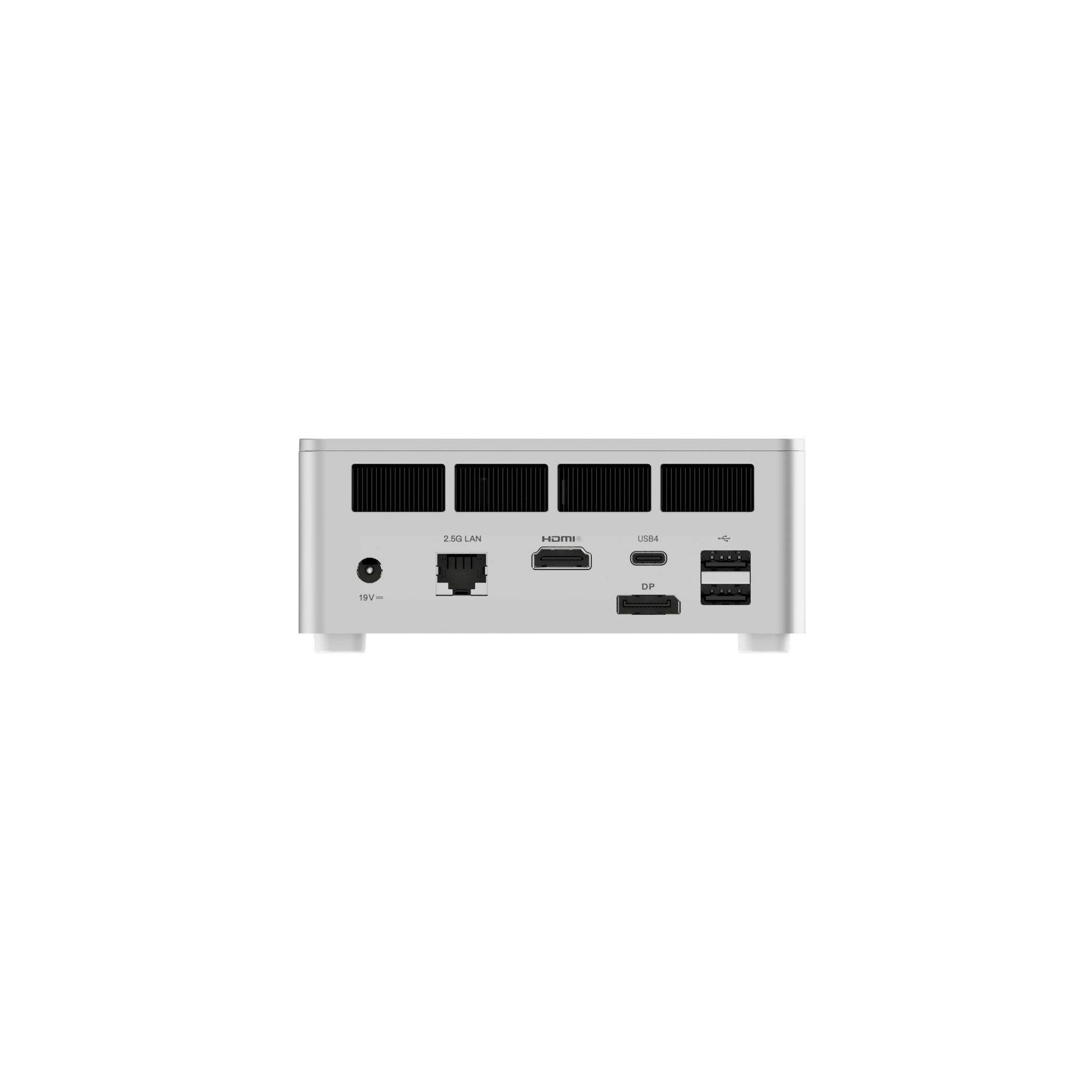

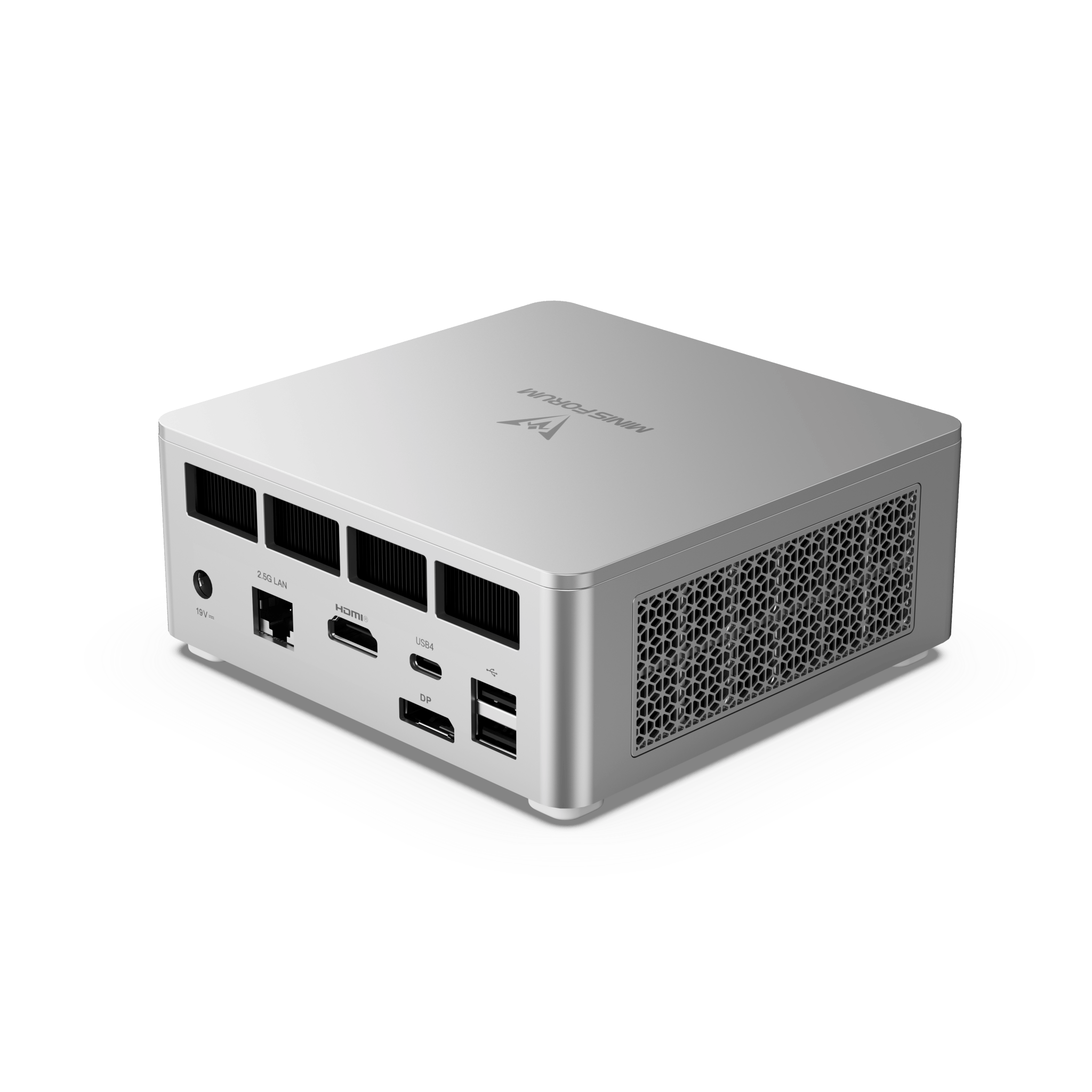

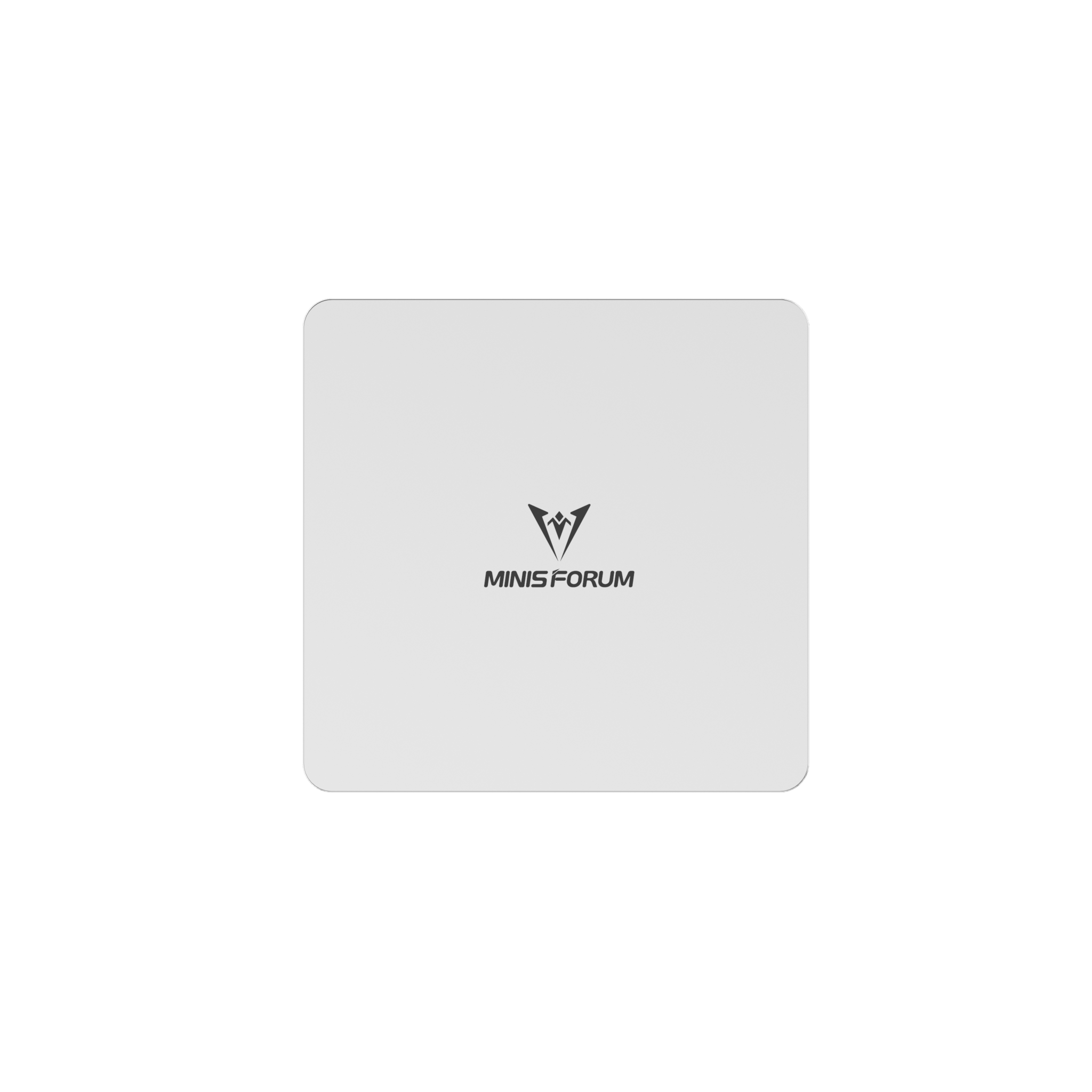

Minisforum UM680 / UM690 / UM760 / UM870 Slim Generalüberholt
- AMD Ryzen™ 5 7545U
- AMD Radeon™ Graphics
- 8K Display: HDMI 2.1 & USB4 & DP
- Speedy Network: 2.5G RJ45 ethernet port, WiFi6E and BT5.3
Compact Size, Powerful Core
AMD Ryzen™ 5 7545U
Minisforum UM750L Slim Featuring AMD Ryzen™ 5 7545U Processor — Powerful Performance in a Compact Mini PC with 6 Cores and 12 Threads for Seamless Multitasking and Enhanced System Efficiency.
AMD Radeon™ GPU
The integrated AMD Radeon™ GPU delivers exceptional graphics
performance for daily visual tasks.
LPDDR5 6400MHz blazes past standard 5600MHz, delivering dramatically faster response.
Graphene cooling tech dissipates heat in seconds, unleashing full performance without thermal throttling.
Reduces lag whether running heavy software or multitasking, significantly boosting productivity.
Supports dual M.2 2280 PCIe 4.0 SSDs for blazing-fast data storage and retrieval, meeting demands for high-capacity, high-speed storage.
Data Transfer Speeds
Up to 7000MB/s
Up to
4TB Storage Space
*Actual transmission speed:
PCIe 4.0 x4: 6700-7300 MB/s
PCIe 4.0 x2: 3000-3500 MB/s
LPDDR5 6400MHz blazes past standard 5600MHz, delivering dramatically faster response.
Graphene cooling tech dissipates heat in seconds, unleashing full performance without thermal throttling.
Reduces lag whether running heavy software or multitasking, significantly boosting productivity.
Supports dual M.2 2280 PCIe 4.0 SSDs for blazing-fast data storage and retrieval, meeting demands for high-capacity, high-speed storage.
Data Transfer Speeds
Up to 7000MB/s
Up to
4TB Storage Space
*Actual transmission speed:
PCIe 4.0 x4: 6700-7300 MB/s
PCIe 4.0 x2: 3000-3500 MB/s
Efficient Cooling System
The system utilizes phase-change material (PCM) cooling technology, featuring dedicated CPU heatsinks plus active cooling for memory and storage. Compared to single-fan designs, it reduces temperatures by 25%, enhancing both performance and device longevity.
Top-speed Network
Pre-installed with high-speed wired LAN and wireless connectivity for fast, stable networking.
Enjoy seamless networking whether downloading large files, gaming online, or video conferencing.
2.5G Ethernet Port | WIFI 6E | BT5.3
Compatible with PD Power Supplies
Supports 65-100W PD input for host power plus 15W output capability, delivering flexible power options for diverse usage scenarios.
PD IN：65～100W
PD OUT：15W
Triple Independent Displays
Connect triple 4K displays simultaneously via USB4, HDMI and DP interfaces for effortless multi-screen productivity that dramatically enhances workflow efficiency.
USB4 40Gbps
Full-featured USB4 ports deliver blazing 40Gbps speeds for effortless handling of large files, complex projects, and demanding applications - dramatically boosting productivity.
Multi-scenario application
The UM750L Slim combines compact design with powerful performance and reliability, offering exceptional capabilities in manageability, AI readiness, Wi-Fi sensing, wireless connectivity, and customization.
It’s perfectly suited for modern business applications, edge computing, and IoT scenarios.
Super Small,Excellent Texture
Specification
MINISFORUM UM750L Slim
AMD Ryzen™ 5 7545U, 6 Cores/ 12 Threads, Max. 4.9 GHz
AMD Radeon Graphics
LPDDR5 6400MT/s (On Board, max. 32GB)
1×M.2 2280 NVME SSD Slot (Up to 4TB,PCIe 4.0 x4,Located above the WiFi slot.)
1×M.2 2280 NVME SSD Slot (Up to 4TB,PCIe 4.0 x2)
M.2 2230 E-Key WiFi Card(WiFi 6e+BT5.3)(PCle Only)
HDMI x1 (Up to 8K@60Hz/4K@120Hz)
DP x 1 (Up to 4K@120Hz)
USB4 х 1 (Up to 8K@60Hz/4K@120Hz)
HDMI х 1
3.5mm Combo Jack х 1
3.5mm Combo Jack х 1
USB 3.2 Gen2 х 2
3.5mm Audio Jack х 1
2.5 Gigabit Ethernet (RJ45) х 1
USB 2.0 х 2
USB4 х 1(40Gbps,Alt PD in 65-100W & PD out 15W)
DP 1.4 х 1
HDMI 2.1 FRL х 1
Power Button х 1
Reset Hole х 1
Windows 11
DC 19V/3.42A (5525mm) (65W）
