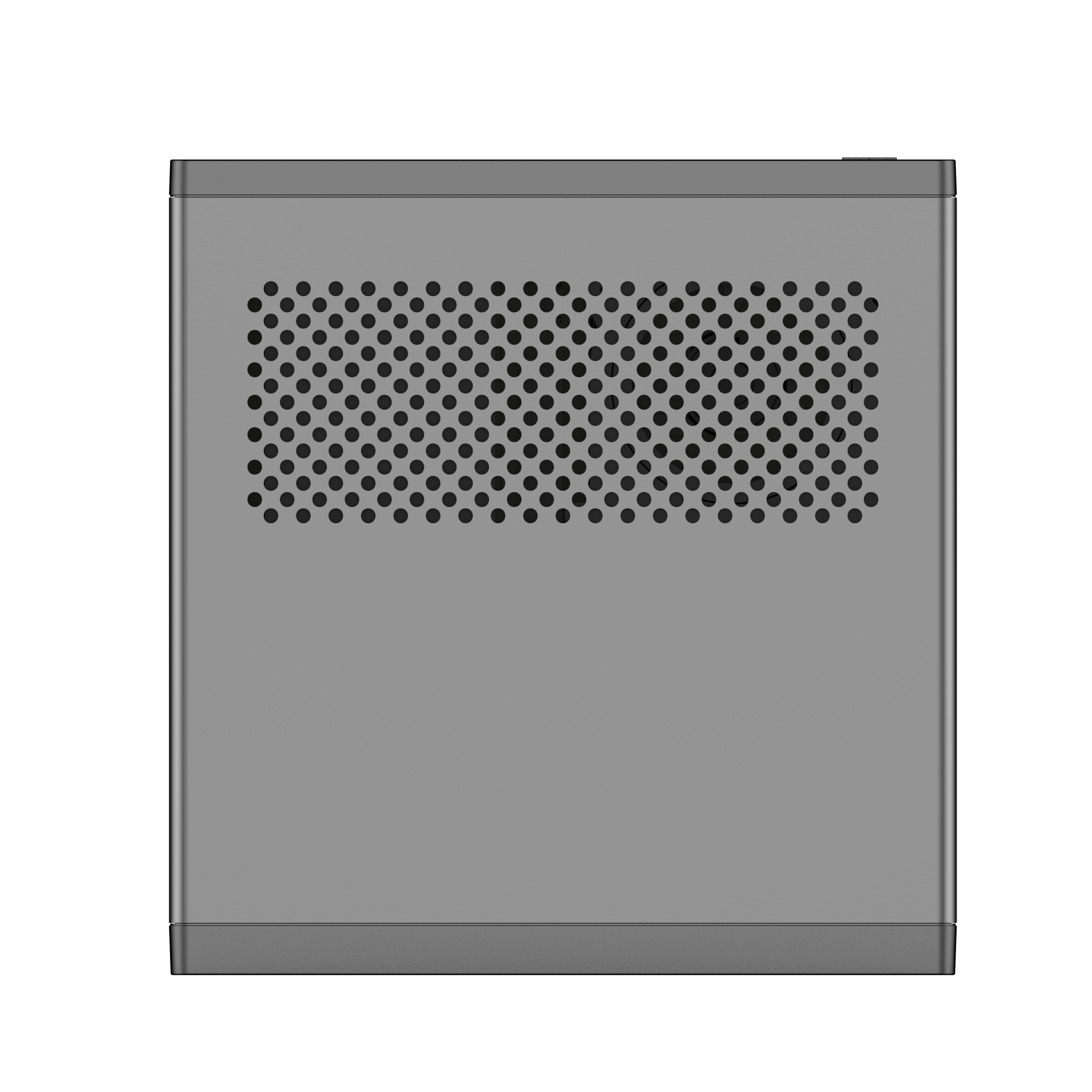

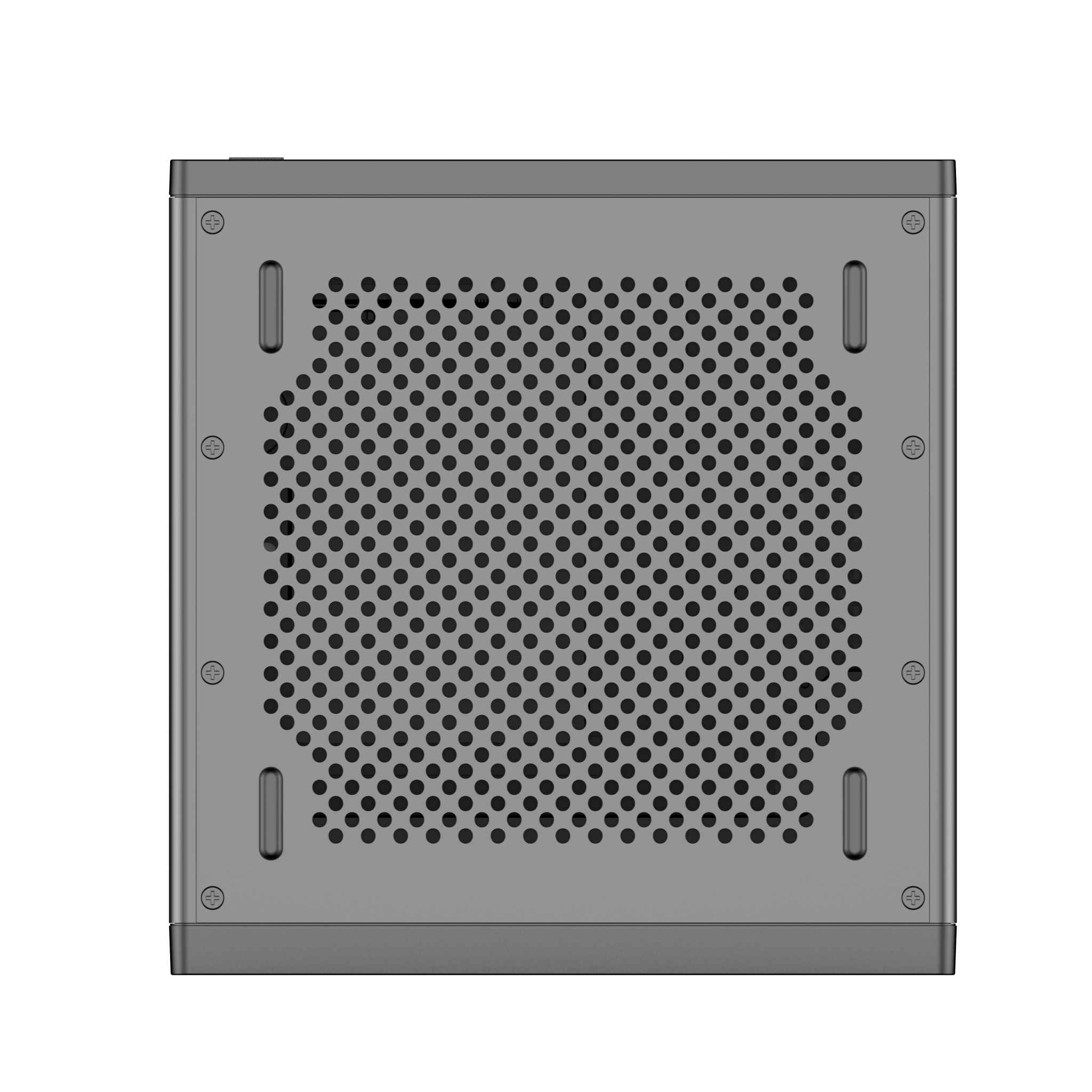

Minisforum MS-01 Arbeitsstation Generalüberholt

Name: MINISFORUM MS-01 Work Station Refurbished
Rating: 4.75 (8 reviews)

$537.00 $799.00

Optional Intel® Core™ i9-13900H | 13900HK | 12900H | i5-12600H
Up to 24TB of SSD storage
10Gbps SFP X2 + 2.5Gbps RJ45 X2
PCIe 4.0 x16 slot

Payment Methods:

Trusted Delivery:

Free Shipping

Quality Guaranteed

Sustainable Choices

1 Year Warranty

Up To 50% Savings

$537.00 $799.00 Save $262.00

Buy Now

Purchase

Overview

Specs

Reviews

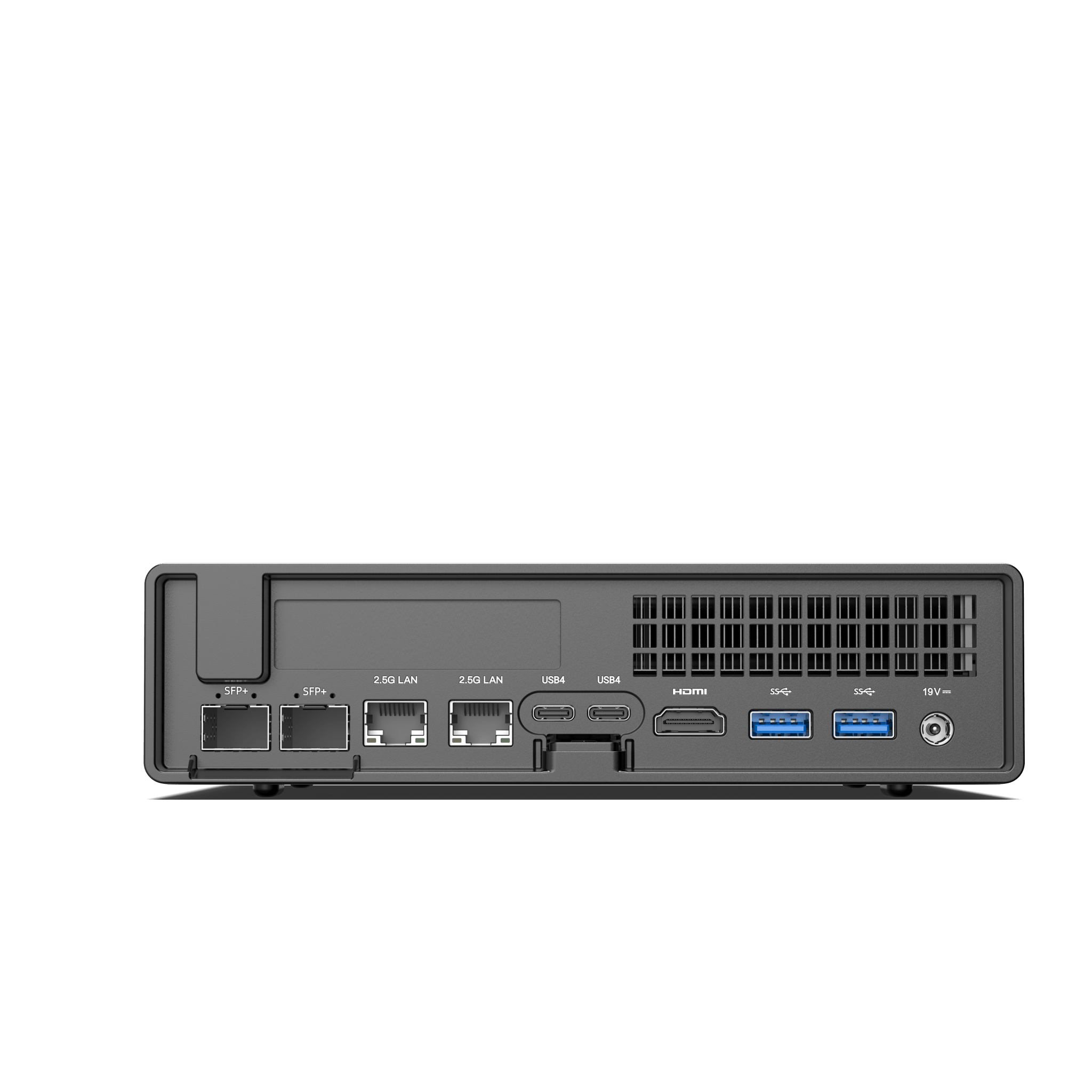

High-speed Network Ports

The MS-01 is capable of building a high-speed network experience with two 10Gbps SFP+ LAN ports, two 2.5Gbps RJ45 LAN ports, and two USB4 ports, providing a total maximum Ethernet throughput of 65Gbps. Enjoy an unprecedented high-speed networking experience.

Intel 13th Generation
Core i9 Processor

The MS-01 is equipped with the high-end Intel 13th Generation Core i9-13900H and Core i9-12900H processors. It provides 14 cores (6P+8E) and 20 threads, along with a 24MB L3 cache. The maximum clock speeds reach 5.4GHz and 5.0GHz, respectively.

Featuring integrated Intel Iris Xe Graphics with maximum frequencies of 1.5GHz and 1.45GHz, it delivers exceptional performance for a smooth and responsive experience.

M.2 NVMe SSD slot

It is possible to expand with up to three M.2 NVMe SSDs, with each slot supporting a maximum capacity of 2TB. The leftmost slot is PCIe 4.0 compatible, with a maximum transfer speed of 7000MB/s. It supports both RAID0 for increased capacity and RAID1 for enhanced data safety.

7000MB/s

Data Transfer Speeds up to

12TB

Storage Capacity up to

U.2 NVMe SSD support

It also supports enterprise-class storage, allowing for expansion up to a total maximum of 24TB with a configuration of one U.2 NVMe SSD and two 22110 M.2 NVMe SSDs. This meets the demands of professionals who require high-capacity storage.

High expandability

PCIe 4.0 x16 slot

The MS-01 is equipped with a PCIe 4.0 x16 slot, allowing for the installation of high-performance external GPUs, network cards, storage controllers, and other external devices. The PCIe 4.0 x16 slot enables faster data transfer, delivering optimal performance in various applications that require high computational power and bandwidth, such as gaming, video editing, and 3D rendering.It supports PCIe 4.0 x8 (128GT/s) and is compatible with up to RTX A2000 Mobile.

Disassembly diagram

Compatible with
Intel vPRO

Intel vPRO technology provides hardware-level protection and reduces security risks between virtual machines. vPRO supports hardware acceleration, such as device virtualization for GPUs and sound cards, allowing for more efficient processing of graphics and audio tasks.

10Gbps SFP+

network ports× 2

The MS-01 is equipped with two 10Gbps SFP+ Ethernet ports. The SFP+ modules offer high stability, and the optical fiber transmission ensures network security by preventing eavesdropping and interception.

With a transmission speed of 10Gbps, it is ten times faster than traditional 1000Mbps Ethernet, meeting the demands of high-performance networking devices.

2.5Gbps RJ45

network ports X 2

In addition to the two SFP+ network ports, the MS-01 also features two standard 2.5Gbps RJ45 network ports, providing double the transmission speed compared to a single 2.5Gbps port, enabling enhanced network performance.

The RJ45 network ports offer high compatibility with a wide range of network devices, catering to the needs of general use

USB Port X 2

The MS-01 is equipped with two USB4 ports, which incorporate dual-channel transmission technology, enabling data transfer speeds of up to 40Gbps. This doubles the data transfer speed compared to USB 3.2 at 20Gbps.

Additionally, it is capable of building a 20Gbps Ethernet network using USB4 Thunderbolt Bridge technology.

Excellent cooling system.

The small smart fan on top of the SSDIt achieves efficient heat dissipation, reducing the operating temperature of the computer and improving the product's lifespan.

The CPU has two U-shaped heat pipes.
It utilizes a high-speed cooling fan, ensuring stable performance even under high load conditions.

Supports 8K
and triple display

With triple display support, you can simultaneously display more work content, making it easier to switch between multiple windows and improving work efficiency. It allows for multitasking and enhances multitasking capabilities by handling multiple tasks simultaneously.

Package Contents

MS-01 Specifiction

Model

MiniWorkStation MS-01

CPU

S1390: Intel® Core™ i9-13900H(With vPro® Enterprise Support)

S1290: Intel® Core™ i9-12900H(With vPro® Enterprise Support)

S1260: Intel® Core™ i5-12600H(With vPro® Enterprise Support)

Graphics

S1390/S1290/S1260: Intel® Iris® Xe Graphics eligible

Memory

DDR5-5200MHz Dual Channel (SODIMM slots x2, up to a total maximum of 64GB)

SSD

M.2 2280 NVME SSD slot (Up to 4TB) (PCIe 4.0 x4) x1

M.2 2280 NVME SSD slot (Up to 4TB) (PCIe 3.0 x4) x1

M.2 2280 NVME SSD slot (Up to 4TB) (PCIe 3.0 x2) x1

It has transformed my home lab experience
Excellent purchase. Highly recommend for anyone starting a home lab
They are the best

5 stars: 6 (75%)
4 stars: 2 (25%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Intel® Core™ i5-12600H / Barebone(No RAM/SSD/OS) / US

Possibly the Perfect OPNsense Appliance

I purchased a refurbished MS-01 with the Intel Core i5-12600H specifically to replace a much larger dedicated OPNsense firewall.

For this application, the MS-01 may be just about perfect.

Two native 10Gb SFP+ ports, two 2.5Gb Ethernet ports, expandable DDR5 memory, and multiple NVMe storage options provide remarkable flexibility in such a compact system.

I'm running OPNsense on a dedicated Samsung NVMe with ZFS. The combination of physical network interfaces and VLAN support allows me to separate my internal network, public-facing infrastructure, and IoT devices without adding network cards or relying entirely on VLANs.

The i5 provides more than enough processing capability for my current requirements, with considerable room for expansion.

Coming from a full-size Acer system, the difference in physical footprint is extraordinary.

BIOS configuration could be more straightforward, but the overall hardware platform is exceptionally well suited to this application.

At the refurbished price, the value is difficult to beat.

If you're building a serious OPNsense firewall, the MS-01 deserves a very close look.

Intel® Core™ i9-12900H / Barebone(No RAM/SSD/OS) / US

Only had it online for about a week, but it has transformed my home lab experience. I was able to combine my container server, NAS, and build servers into one amazing platform.

Shipping was fast.

Received the item, everything looks good for a refurbished unit. However several of the screws are stripped. Couldn’t get one out for the nvme but was able to slide the bracket far enough to mount one nvme.

Installed memory and os. Everything is working as expected.

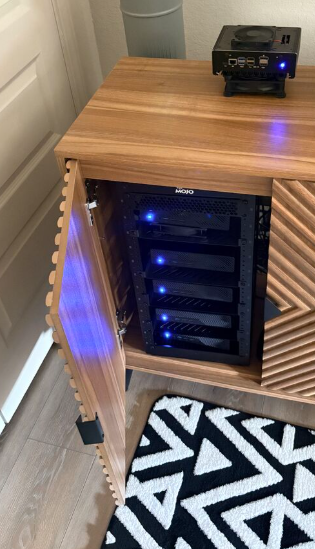

I have three ms-01 in my homelab, I've been using these products for a while now.. they are the best

Excellent purchase. I bought three and highly recommend them for anyone starting a home lab. I’m already looking forward to my next purchase.

Five stars all day.

Intel® Core™ i9-13900H / Barebone(No RAM/SSD/OS) / US

I had to replace the WIFI card it was a generic card but it did not work. I had installed all drivers so I ordered one $12 not a big deal I put 32gb ram in it and now it runs great overall a great product

good-liwenjing

I bought the barebones model. It's wonderful. I use a egpu 3060 12gb with oculink adapter pcie slot . It plays games fine using win 10 ltsc . It was fun setting it up
