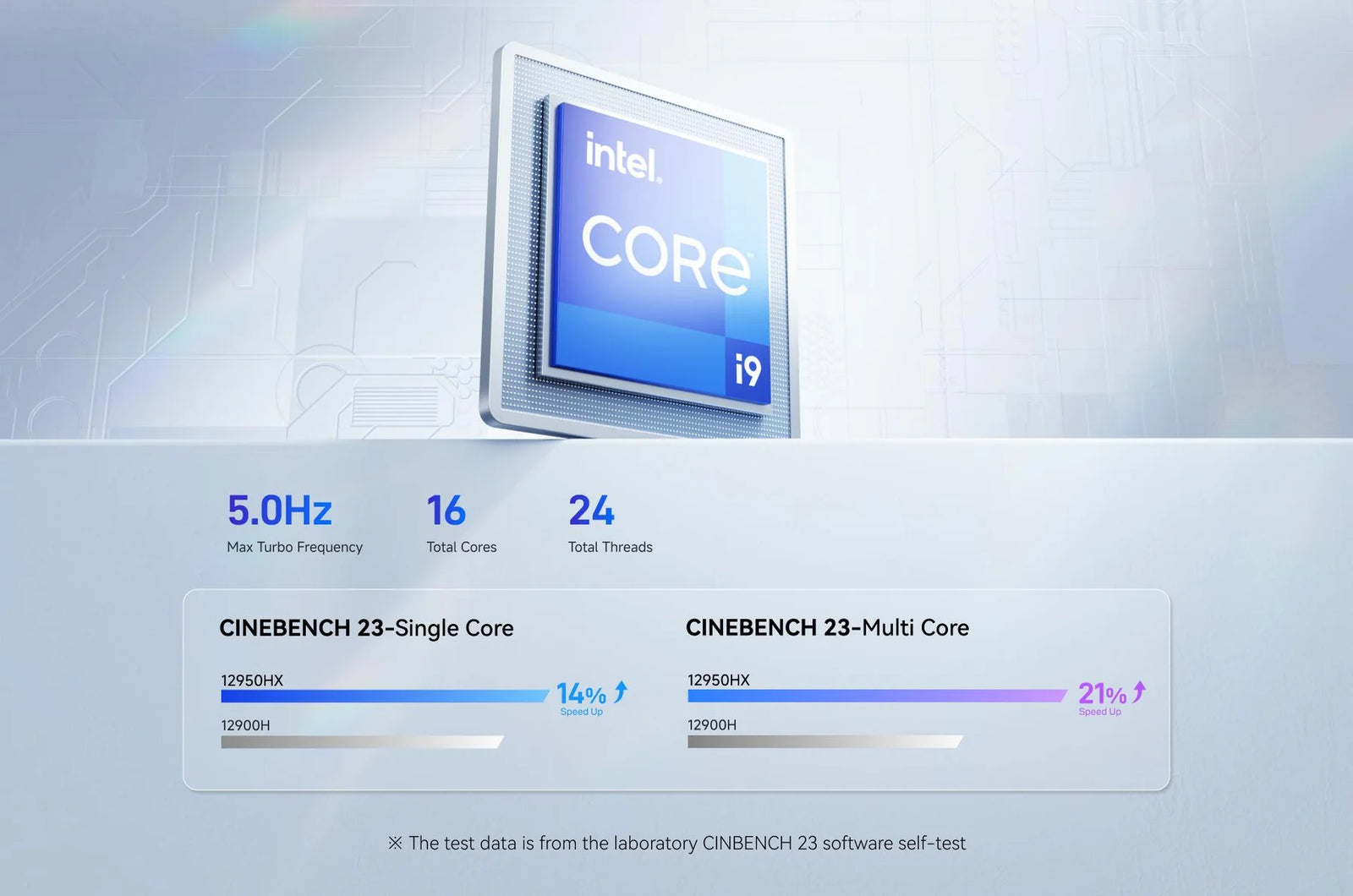

Powerful Business Flagship Performance
Intel® Core™ i9-12950HX processor is equipped with an advanced hybrid architecture of 8-performance cores and 8-energy efficiency cores, which has strong multi-core performance and high-frequency advantages. Let you feel the flagship level silky smooth switching in every operation.
5.0GHz
Max Turbo Frequency
16
Total Cores
24
Total Threads

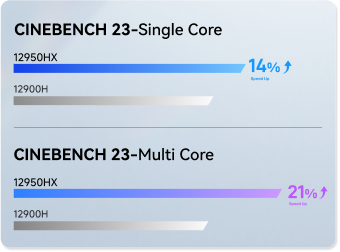

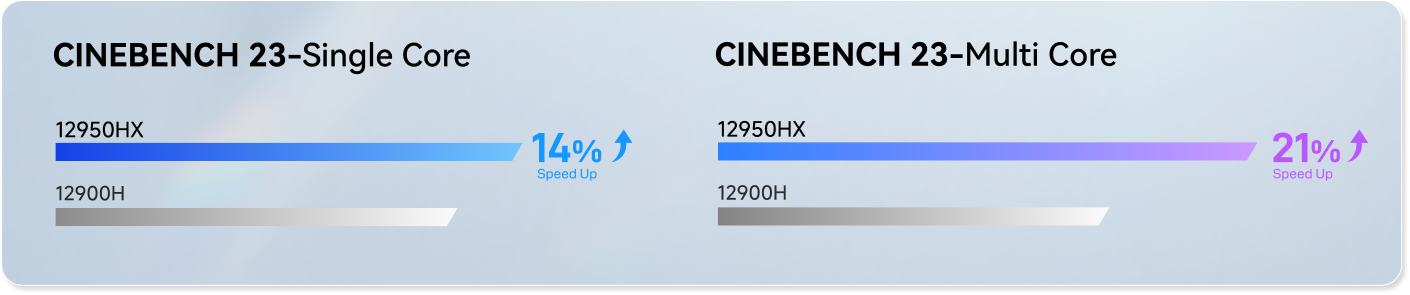

※ The test data is from the laboratory CINBENCH 23 software self-test

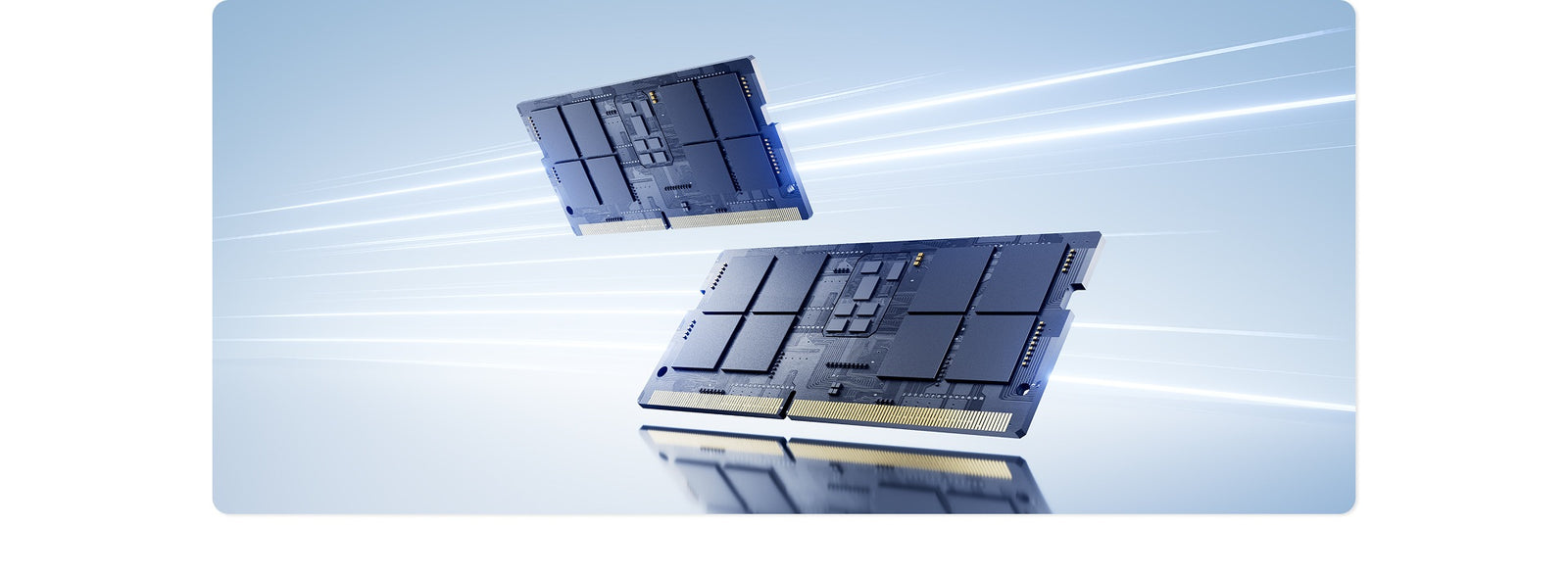

Fast Response Without Lag

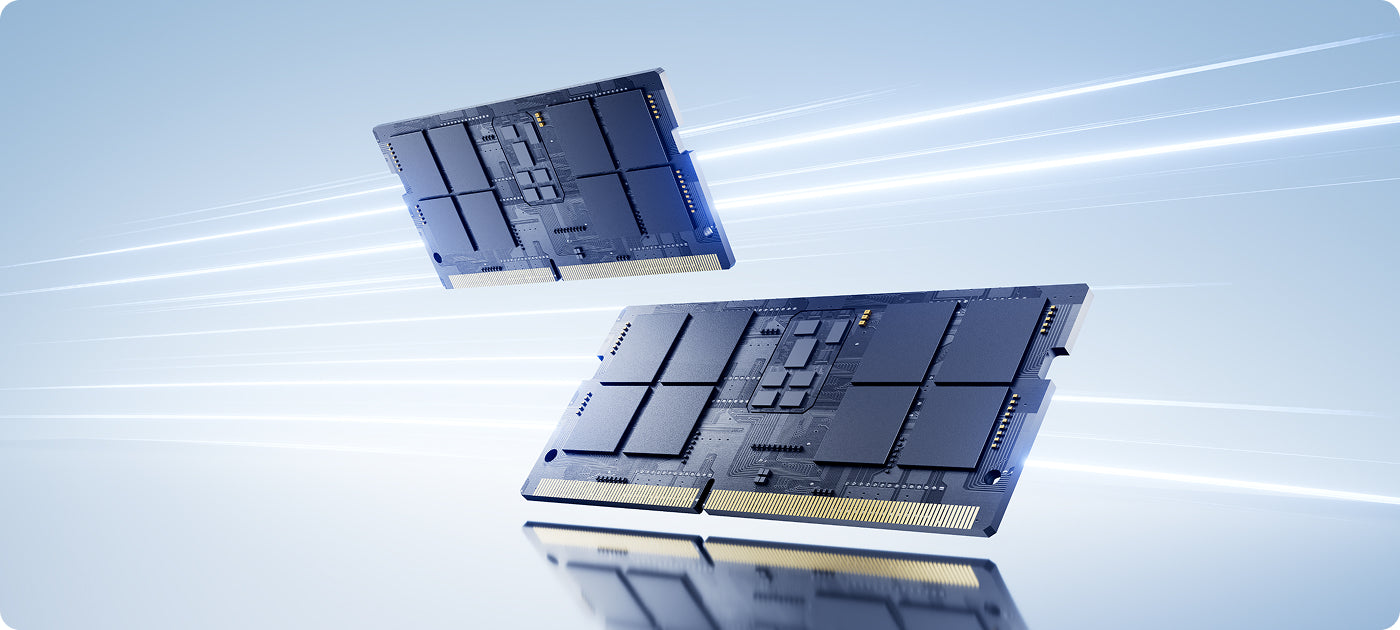

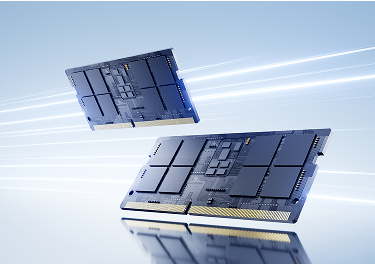

Supports dual DDR4 3200MHz memory (up to 96GB). When multiple large applications are opened or large files are processed simultaneously the memory can quickly complete data reading, writing and exchange, ensuring the system always runs stably and greatly improving the work and entertainment efficiency.

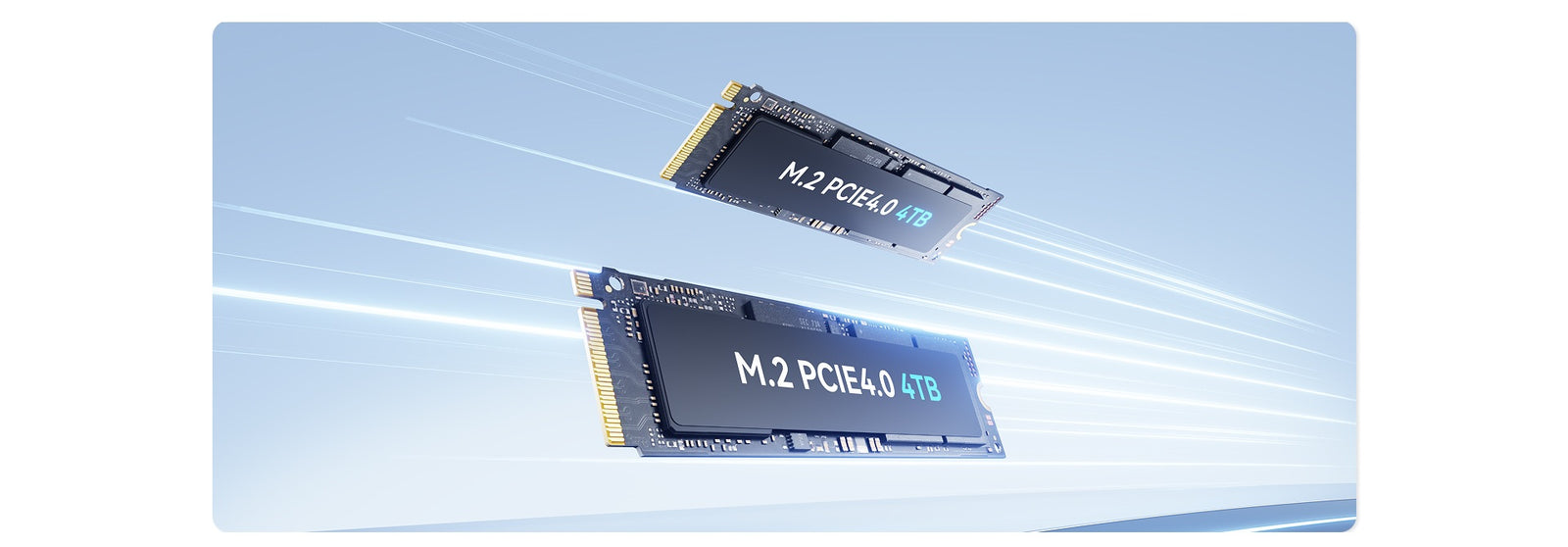

Super Storage, Instant Expansion
Supports dual M.2 2280 NVME SSD Slot (PCle 4.0x4，up to 8TB ). The dual hard drive design provides great convenience for storage expansion, whether it is installing games, loading high-definition video materials, or processing large files, it can be completed at lightning speed, easily meeting the growing storage needs.

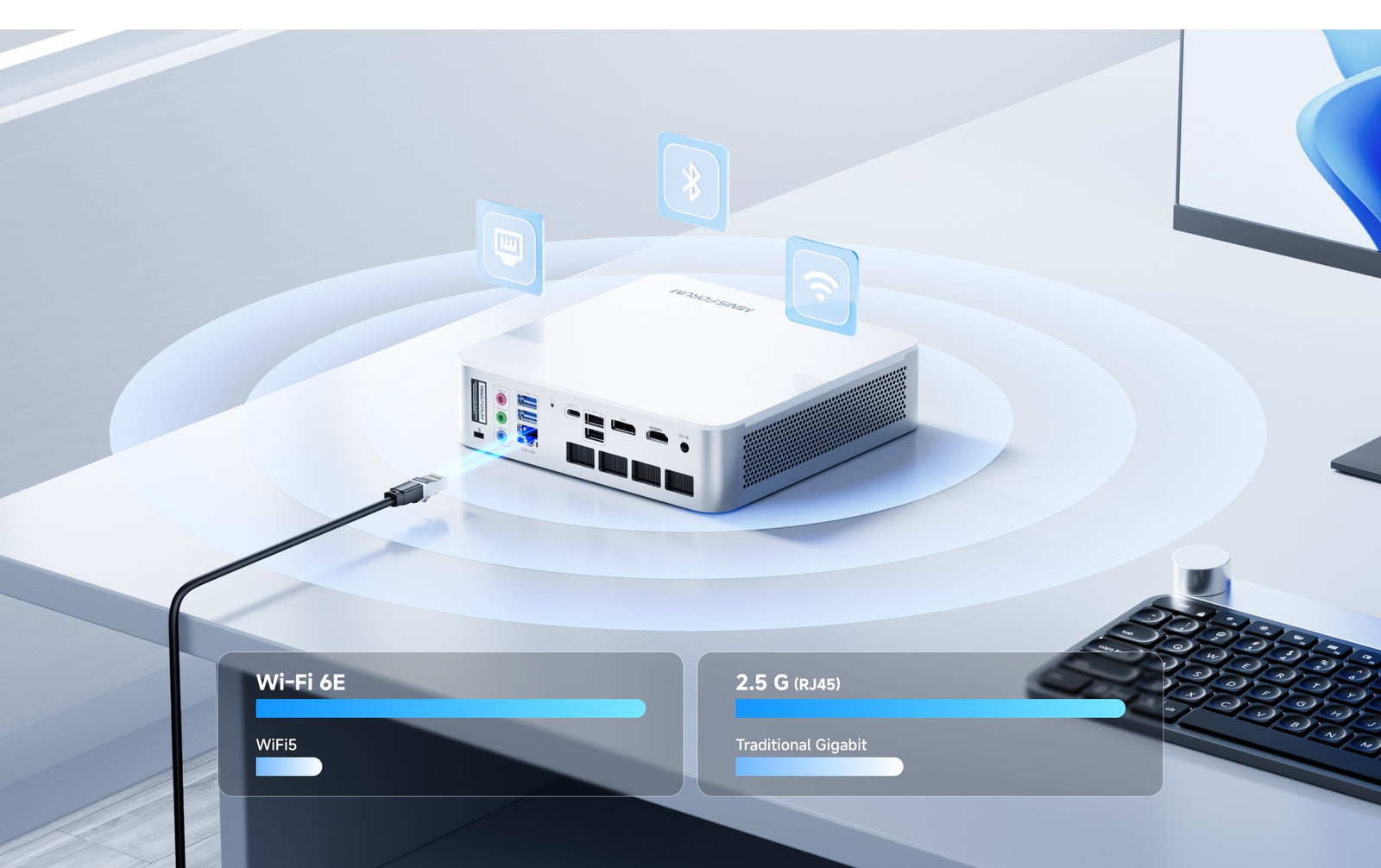

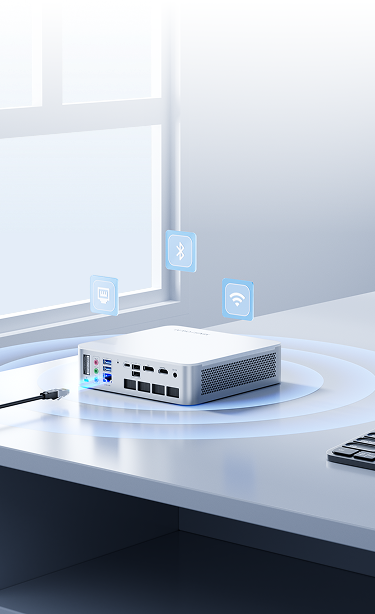

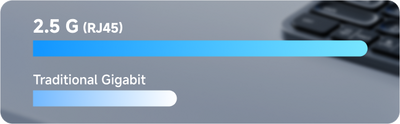

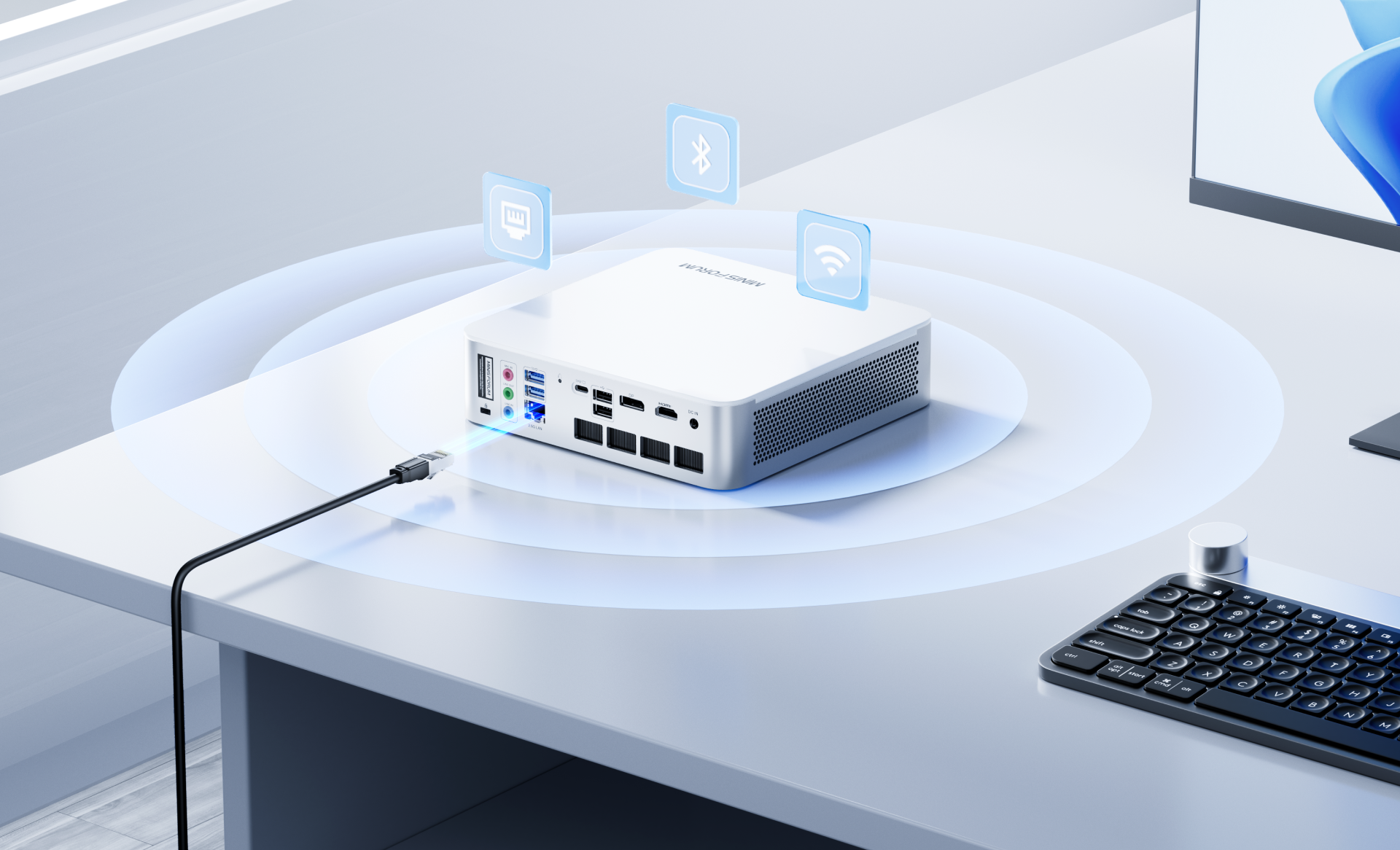

All-Scenario High-Speed Network

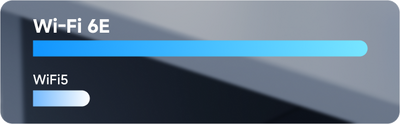

The combination of Wi-Fi 6E, Bluetooth 5.2 and 2.5GbE delivers a robust high-speed network.

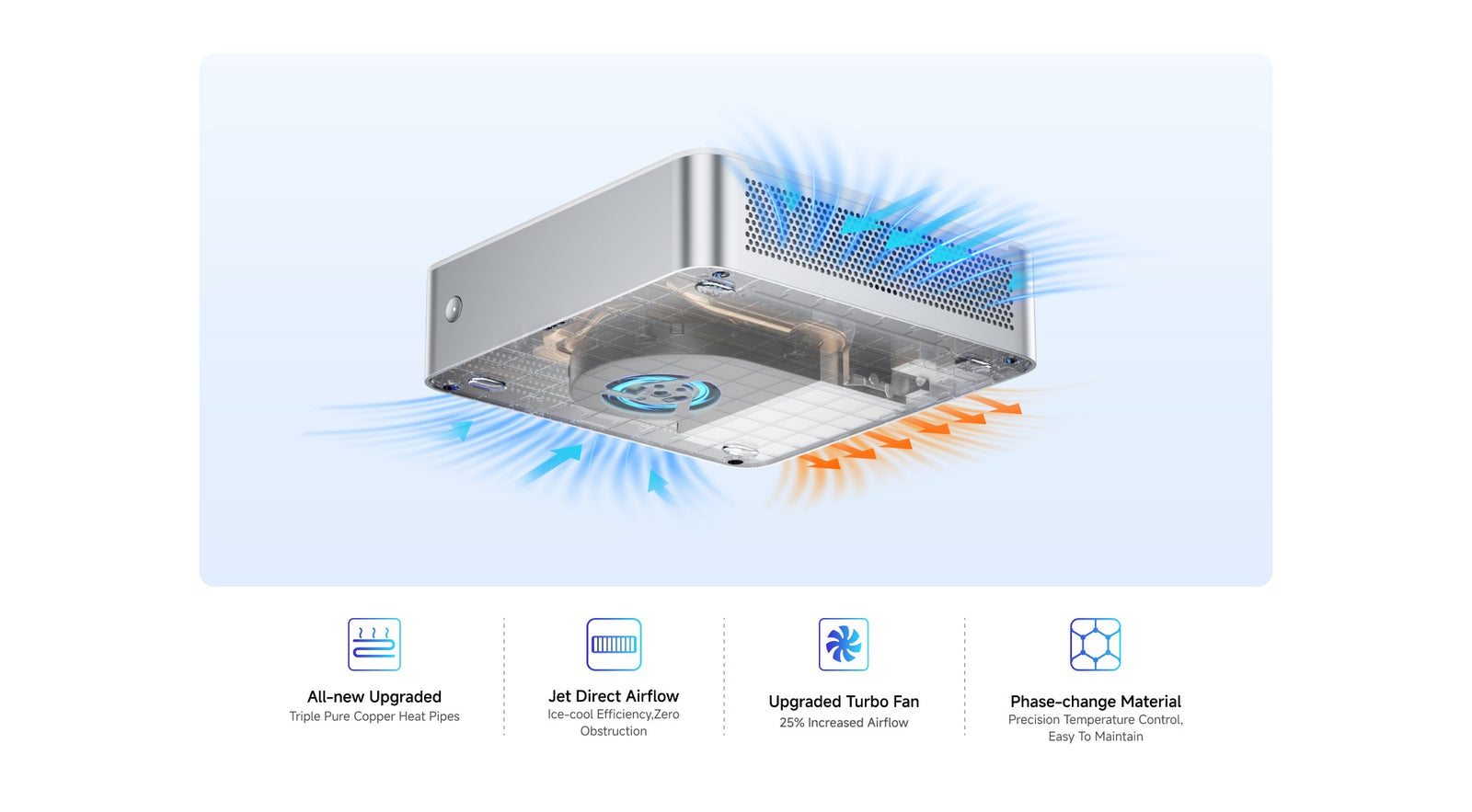

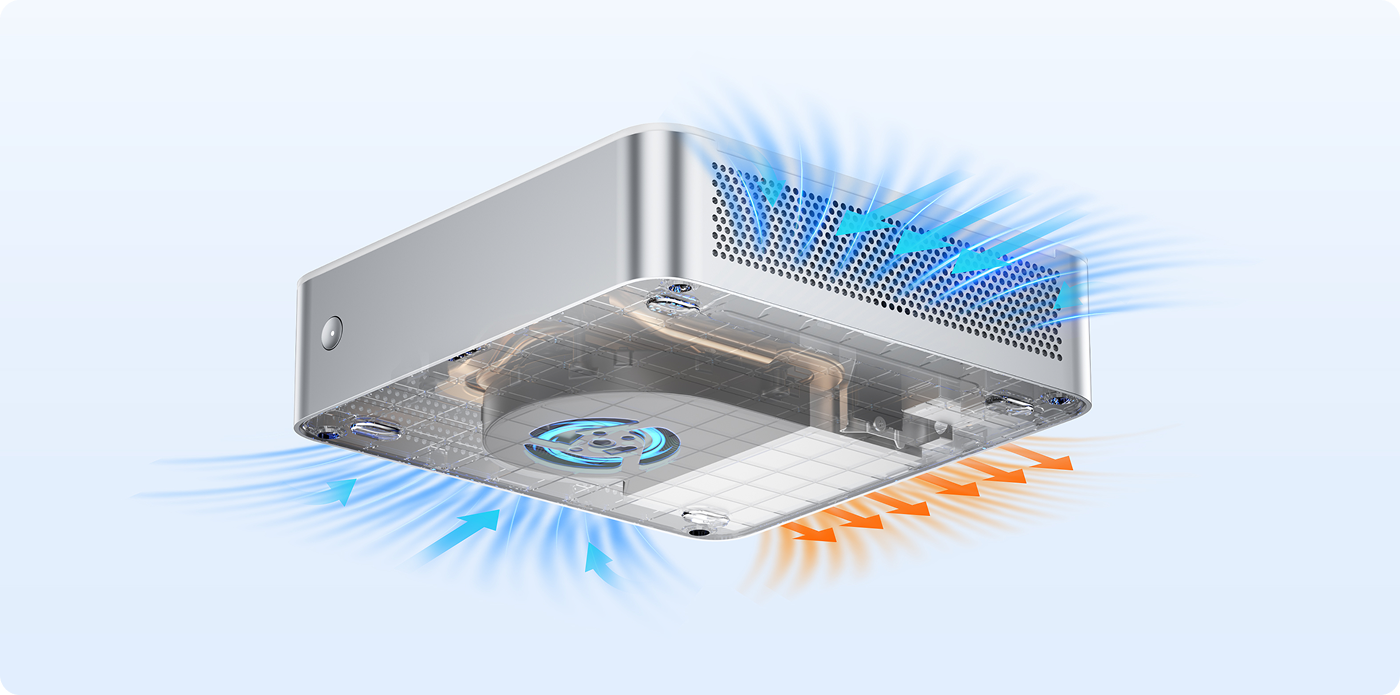

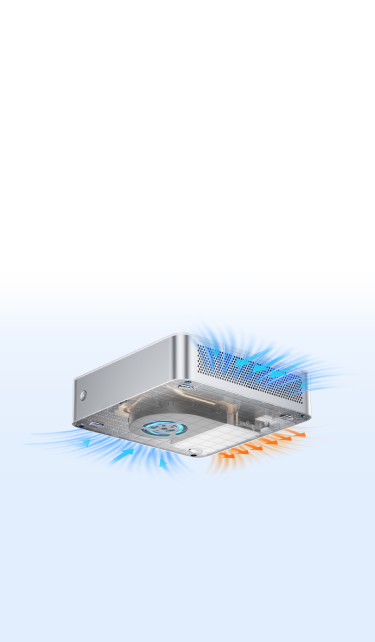

Dual-Channel Ice-Cool Cooling Unleash Extreme Performance
The three heat pipe pure copper thermal architecture reforms heat conduction paths. Innovative turbine fans with aerodynamic vortex grooves boost system airflow by 25%. Advanced phase-change material temperature control technology releasing ultrasmall volume limit performance of mini pc.
Triple Pure Copper Heat Pipes
Ice-cool Efficiency,Zero Obstruction
25% Increased Airflow
Precision Temperature Control,Easy To Maintain
Triple Pure Copper Heat Pipes
Ice-cool Efficiency,Zero Obstruction
25% Increased Airflow
Precision Temperature Control,Easy To Maintain

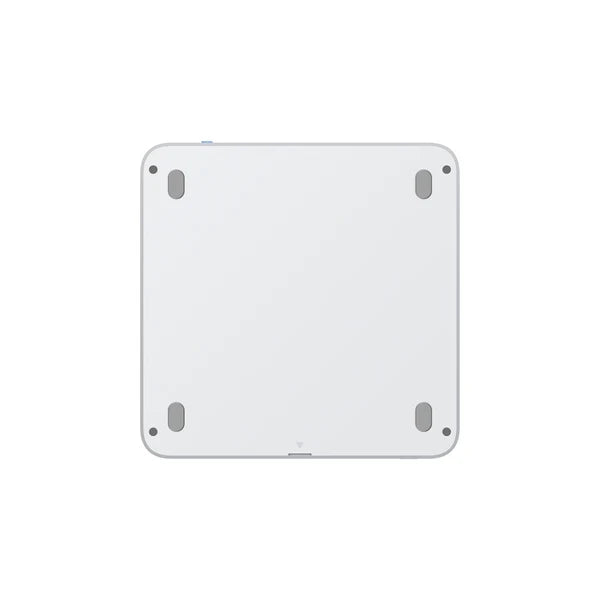

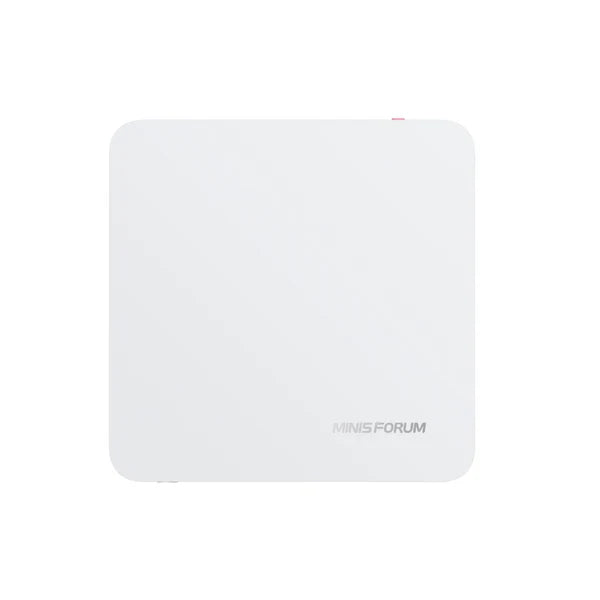

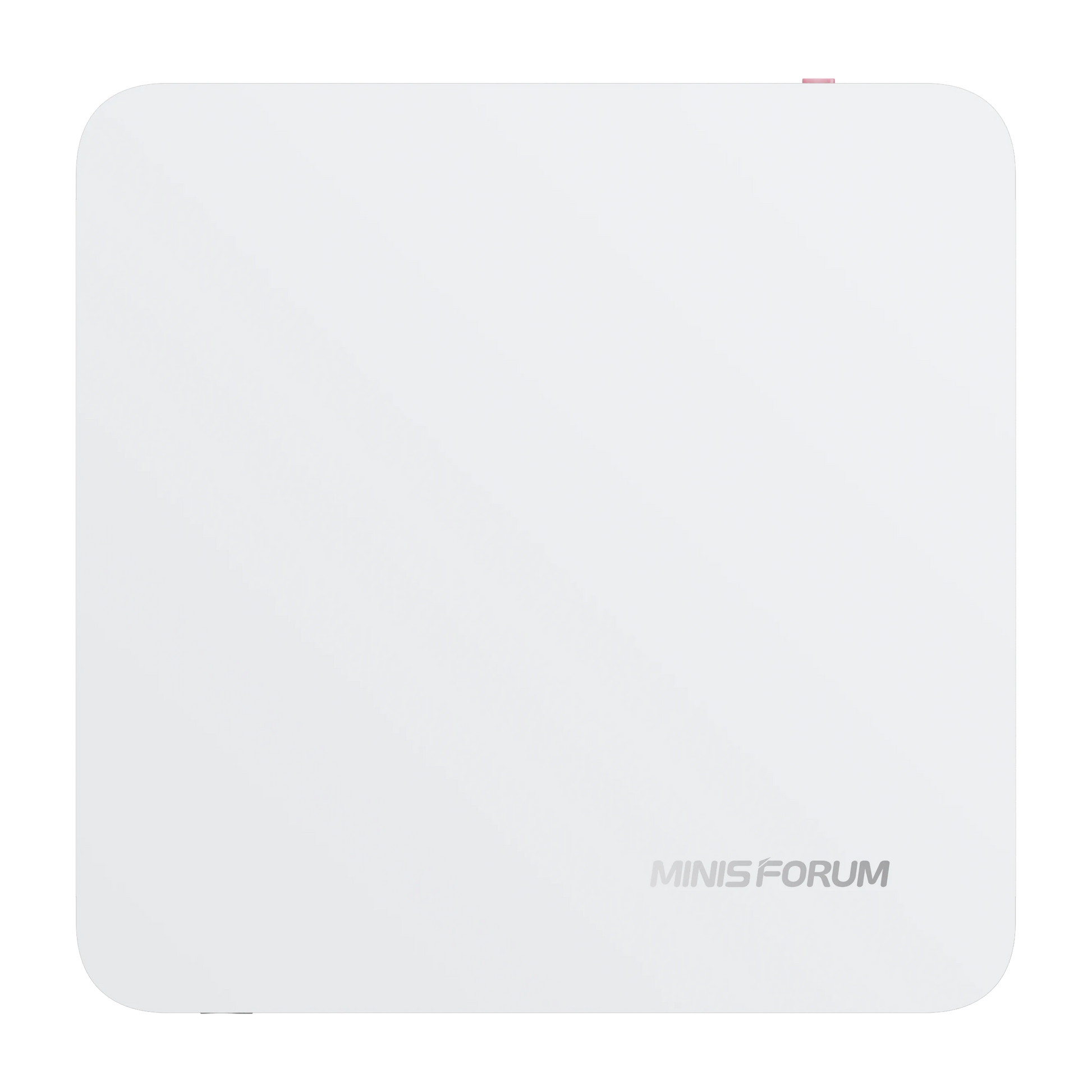

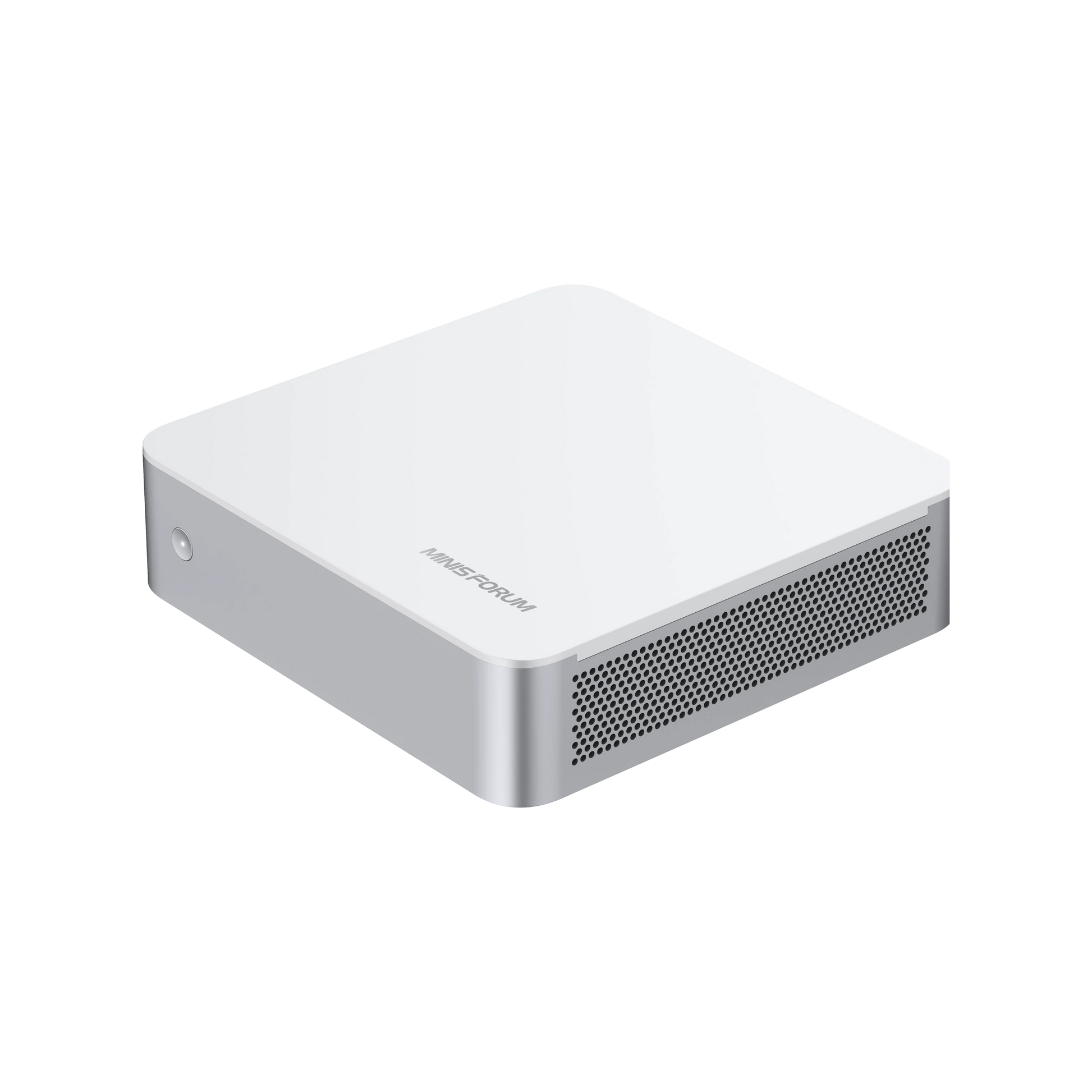

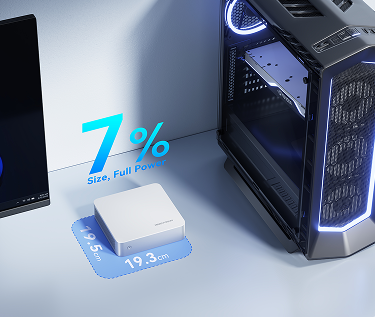

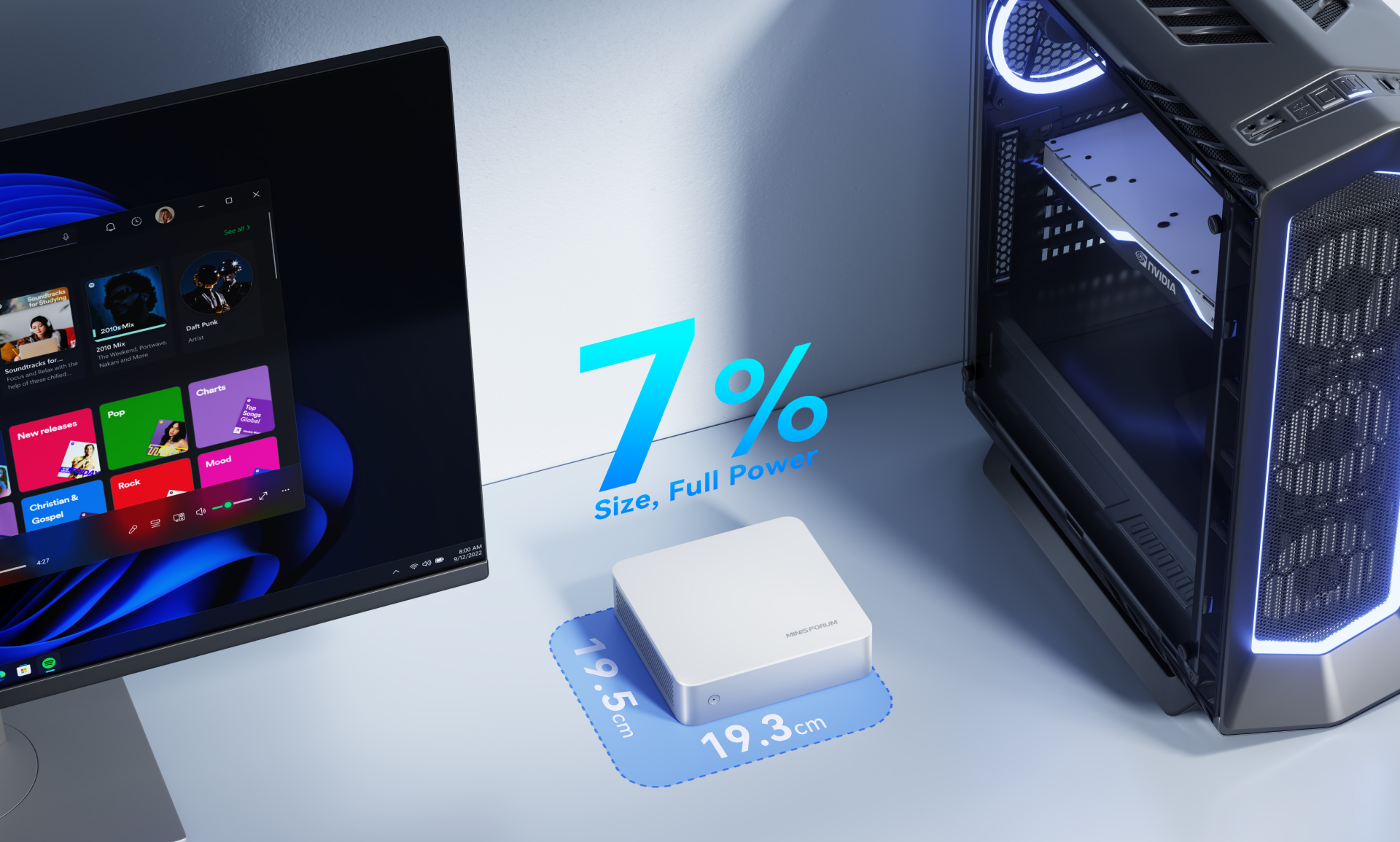

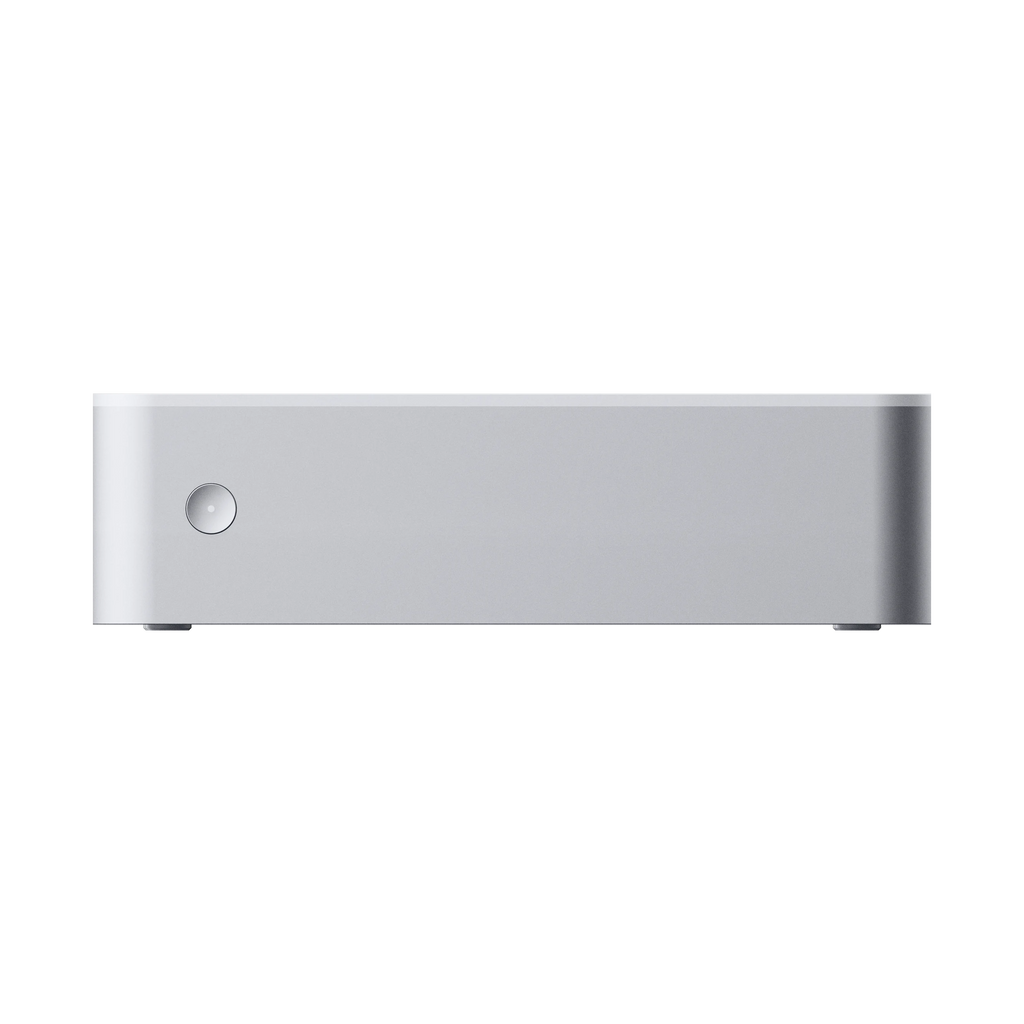

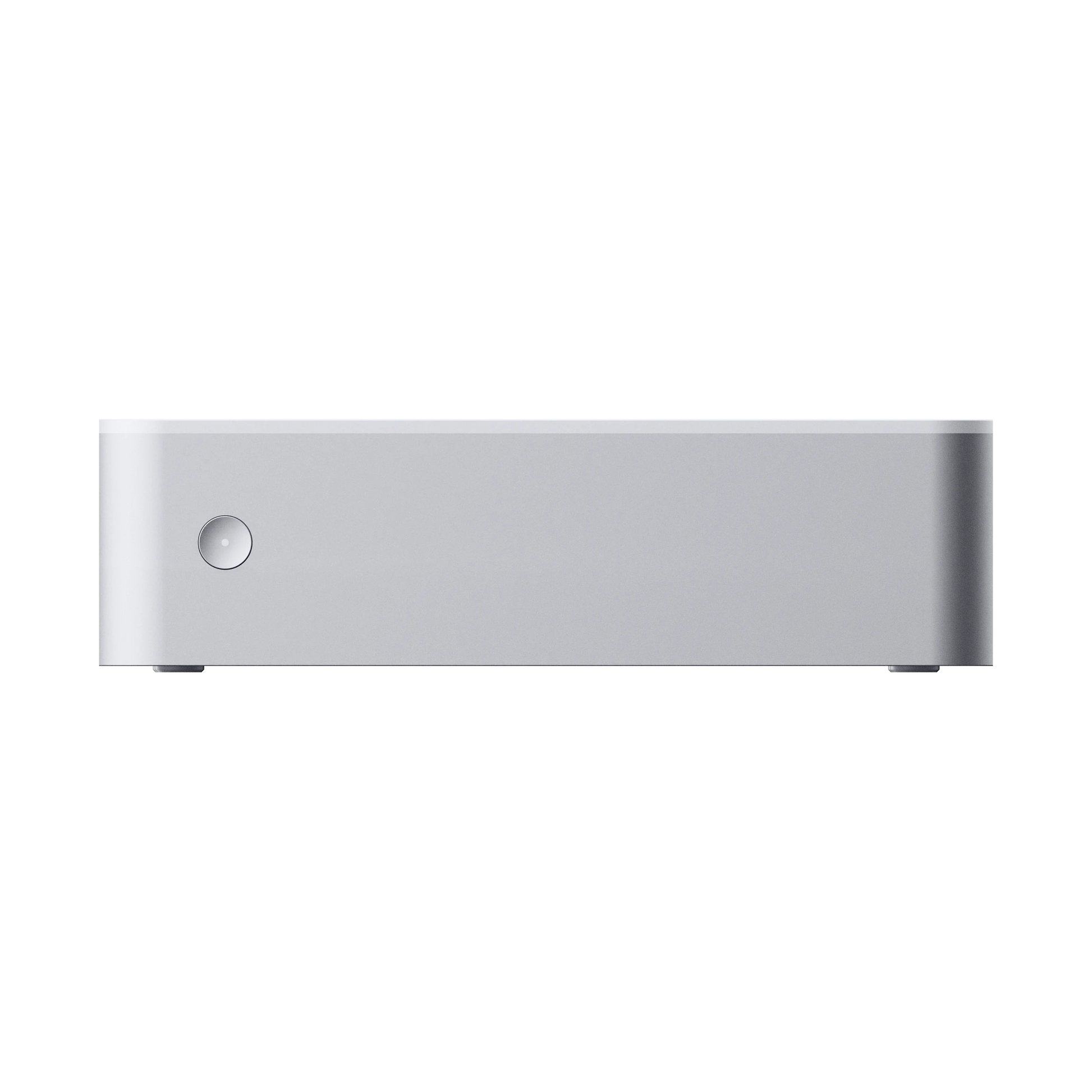

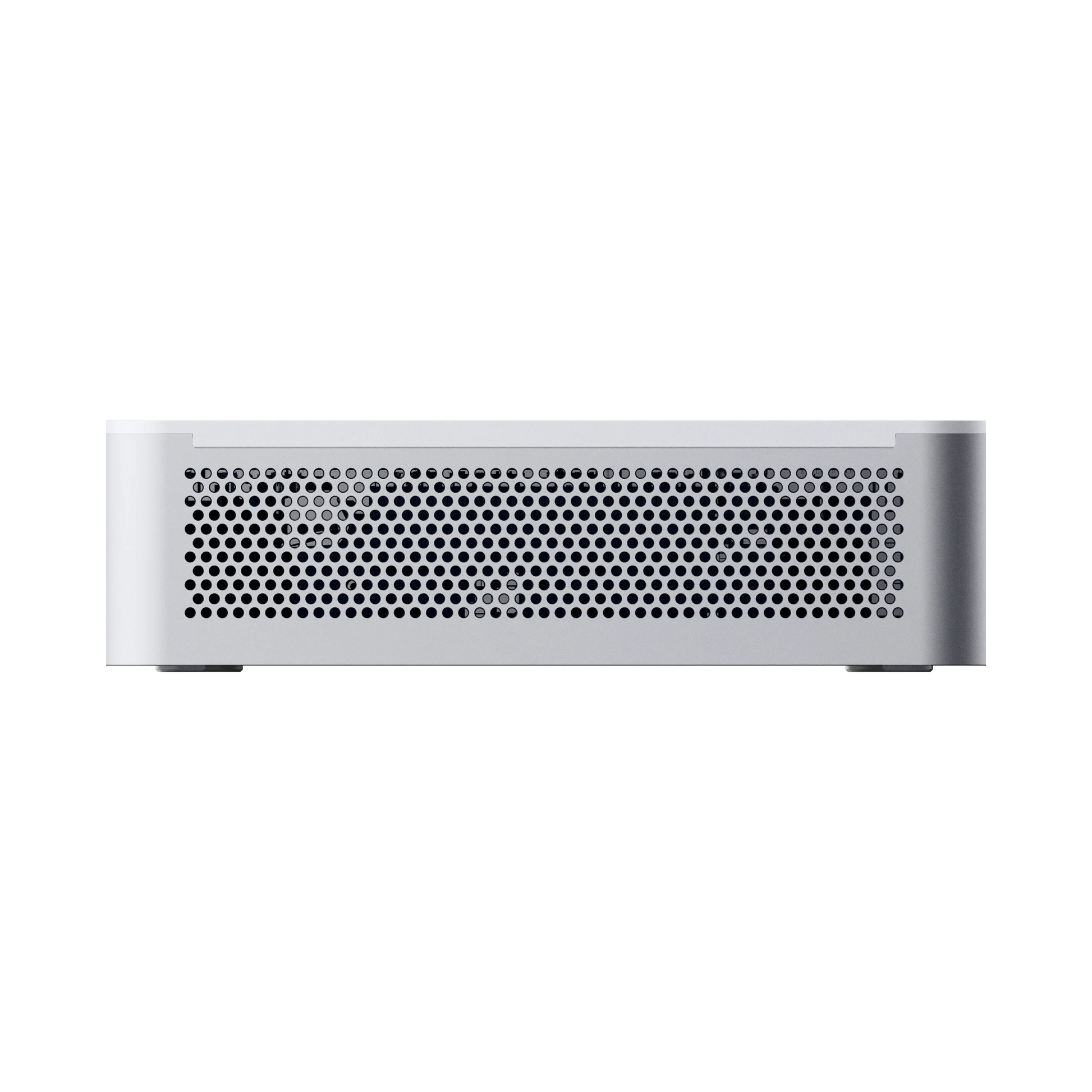

Exquisite Appearance and compact Size
Apple white and elegant silver dual color inlay, with smooth body lines. Every seam has undergone nanoscale precision machining, making it highly attractive for both offices and conference rooms with its compact size and exquisite appearance. The volume is only 7% of that of a desktop computer.
Efficient Office, Plug and Play

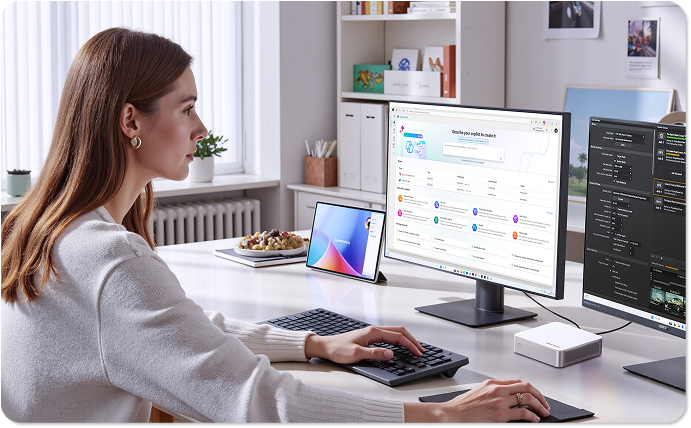

Home Office
Office Work

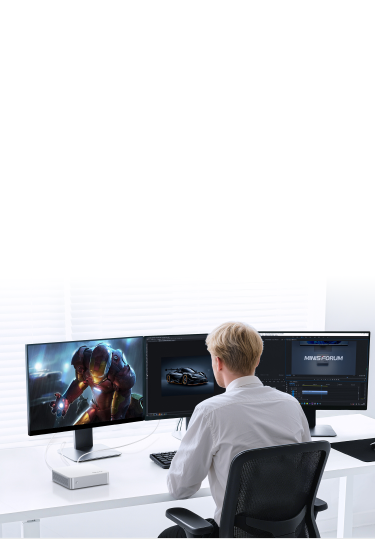

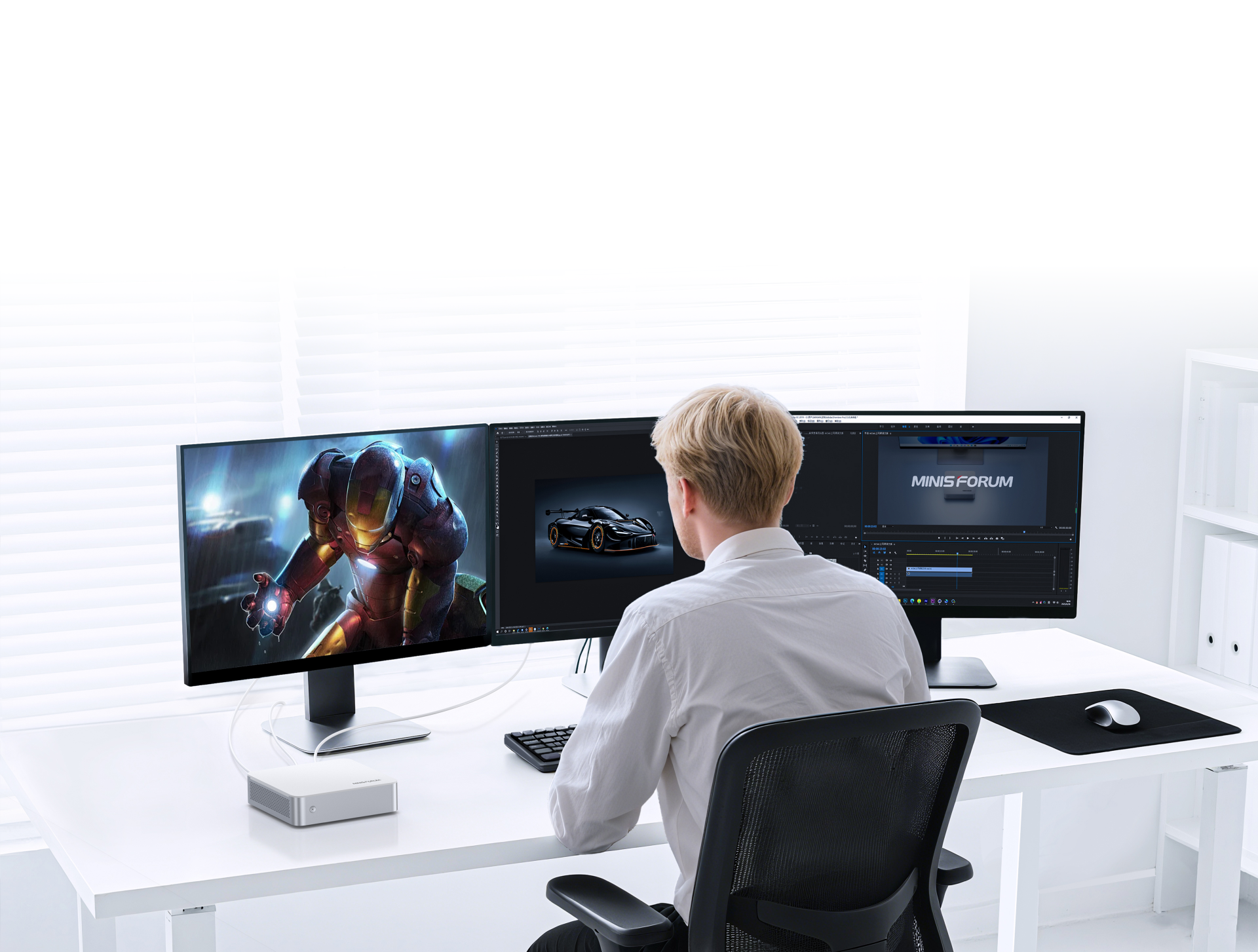

Triple-screen Display
The M1 enhances multitasking with its high-speed USB 3.2, HDMI 2.1 TMDS and DP 1.4 ports.
Easily connect up to three 4K displays to maximize your workflow and increase productivity.

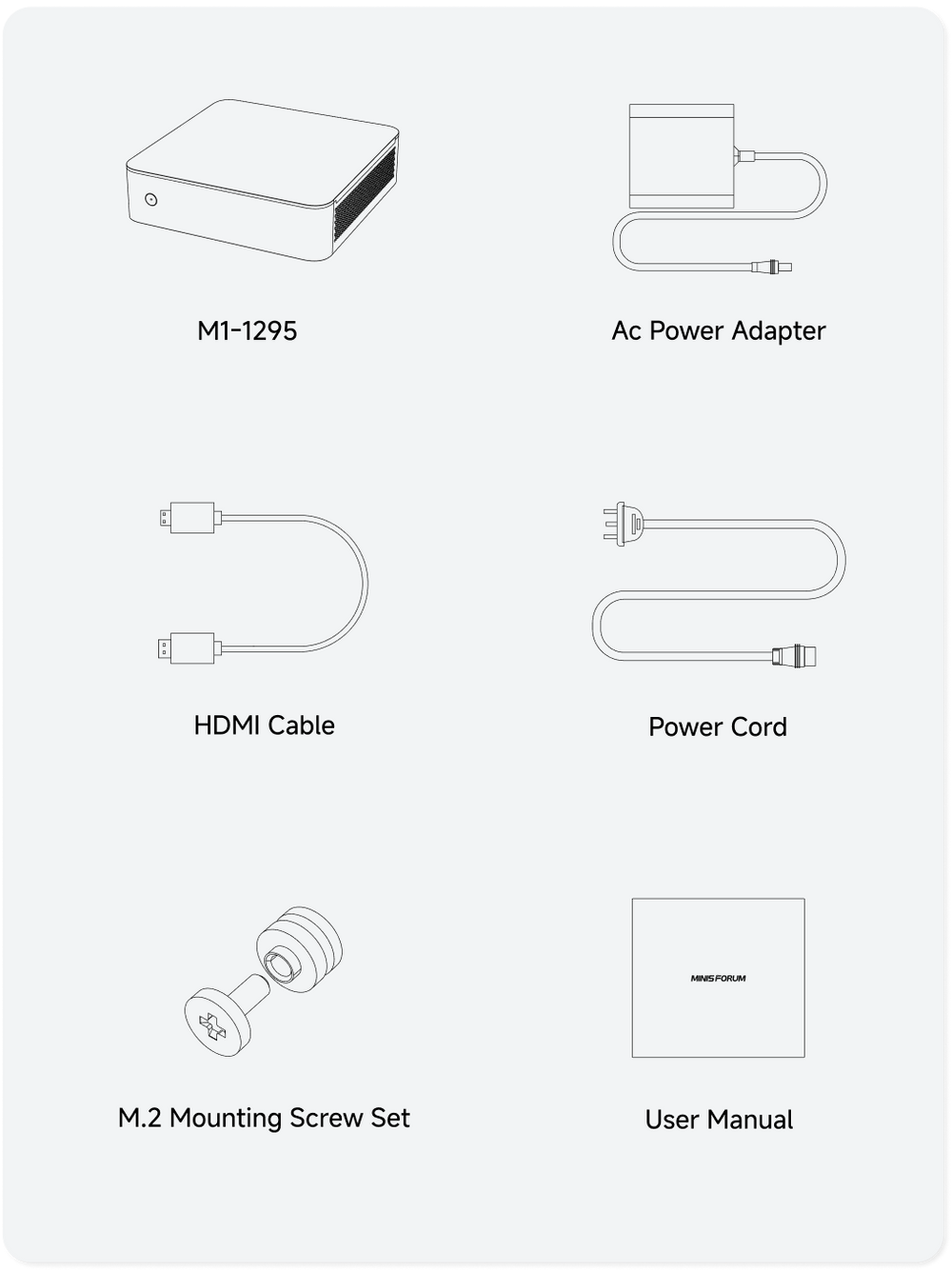

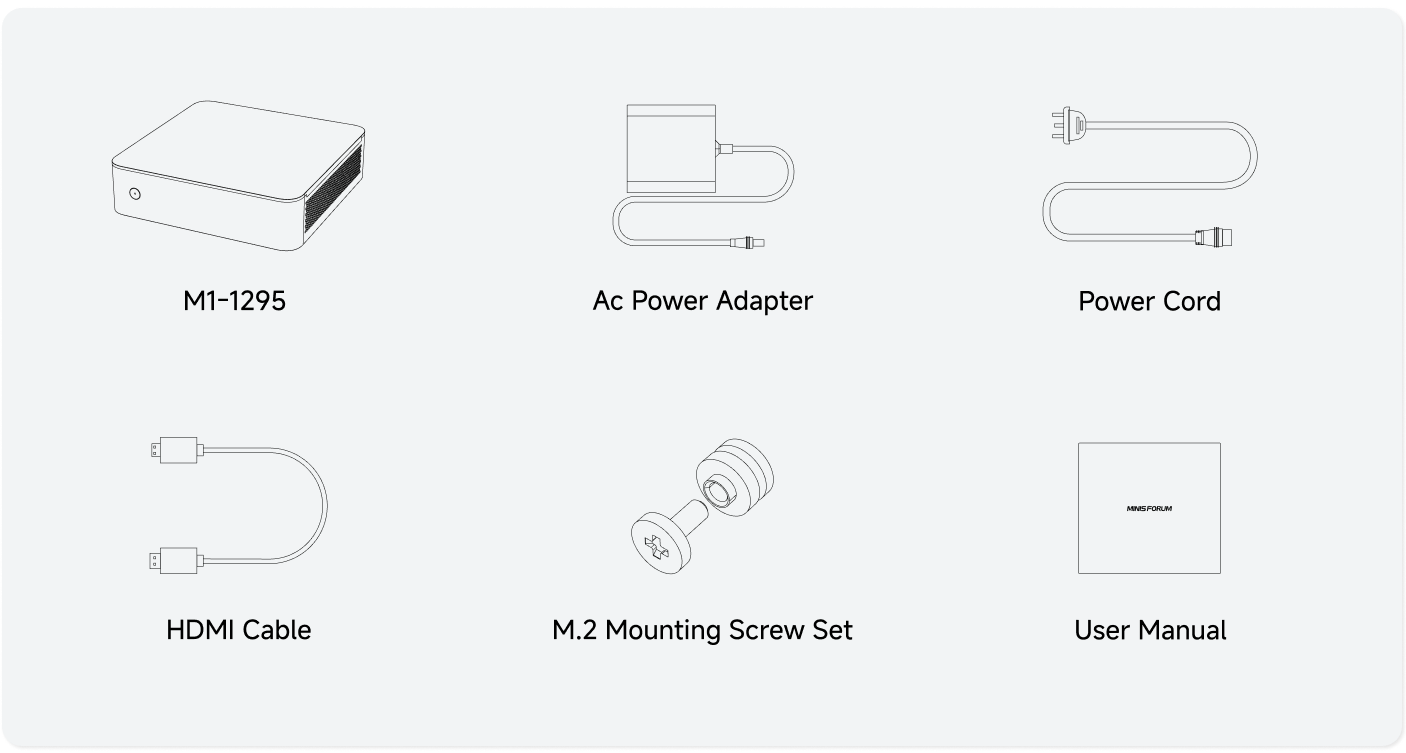

Package Contents
M1-1390
M1-1295
Intel® Core i9-13900HX, 24C (16E+8P) /32T, Max Turbo Frequency 5.4 GHz
Intel® Core i9-12950HX, 16C (8E+8P) /24T, Max Turbo Frequency 5.0 GHz
Intel® UHD Graphics
Intel® UHD Graphics
DDR4 3200MHz (SO-DIMM x2)",
Optional SKU DDR Capacity: 16G/32G/64G
Max Capacity Support 96GB
DDR4 3200MHz (SO-DIMM x2)
Optional SKU DDR Capacity: 16G/32G/64G
Max Capacity Support 96GB
1 x M.2 2280 NVME SSD Slot (up to 4TB, PCIe 4.0 x4)
1 x M.2 2242/2260/2280 NVME SSD Slot (up to 4TB, PCIe 4.0 x4)
Optional SKU SSD Capacity: 0G/1TB/2TB
1 x M.2 2280 NVME SSD Slot (up to 4TB, PCIe 4.0 x4)
1 x M.2 2242/2260/2280 NVME SSD Slot (up to 4TB, PCIe 4.0 x4)
Optional SKU SSD Capacity: 0G/1TB/2TB
Wi-Fi 6E, Bluetooth® 5.2
Wi-Fi 6E, Bluetooth® 5.2
HDMI x1 (Up to 4K@60Hz)
DP (Up to 4K@144Hz)
Type-C (Alt DP,Up to 4K@60Hz)
HDMI x1 (Up to 4K@60Hz)
DP (Up to 4K@144Hz)
Type-C (Alt DP,Up to 4K@60Hz)
HDMI x1
DP x 1
LINE OUT x 1
HDMI x1
DP x 1
LINE OUT x 1
1 x MIC IN
1 x LINE IN
1 x MIC IN
1 x LINE IN

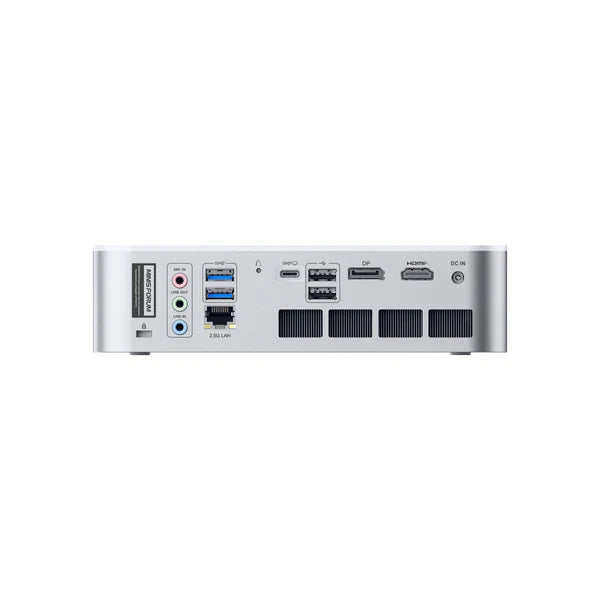

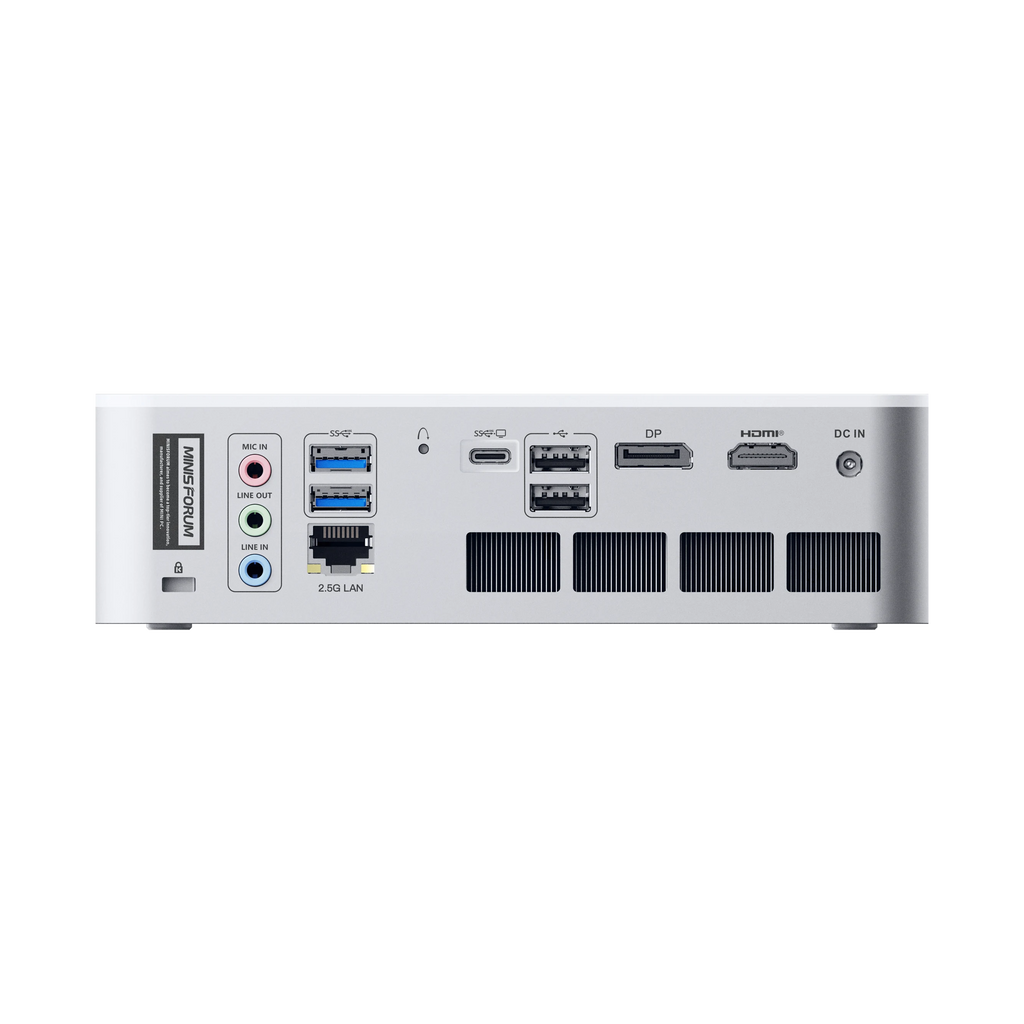

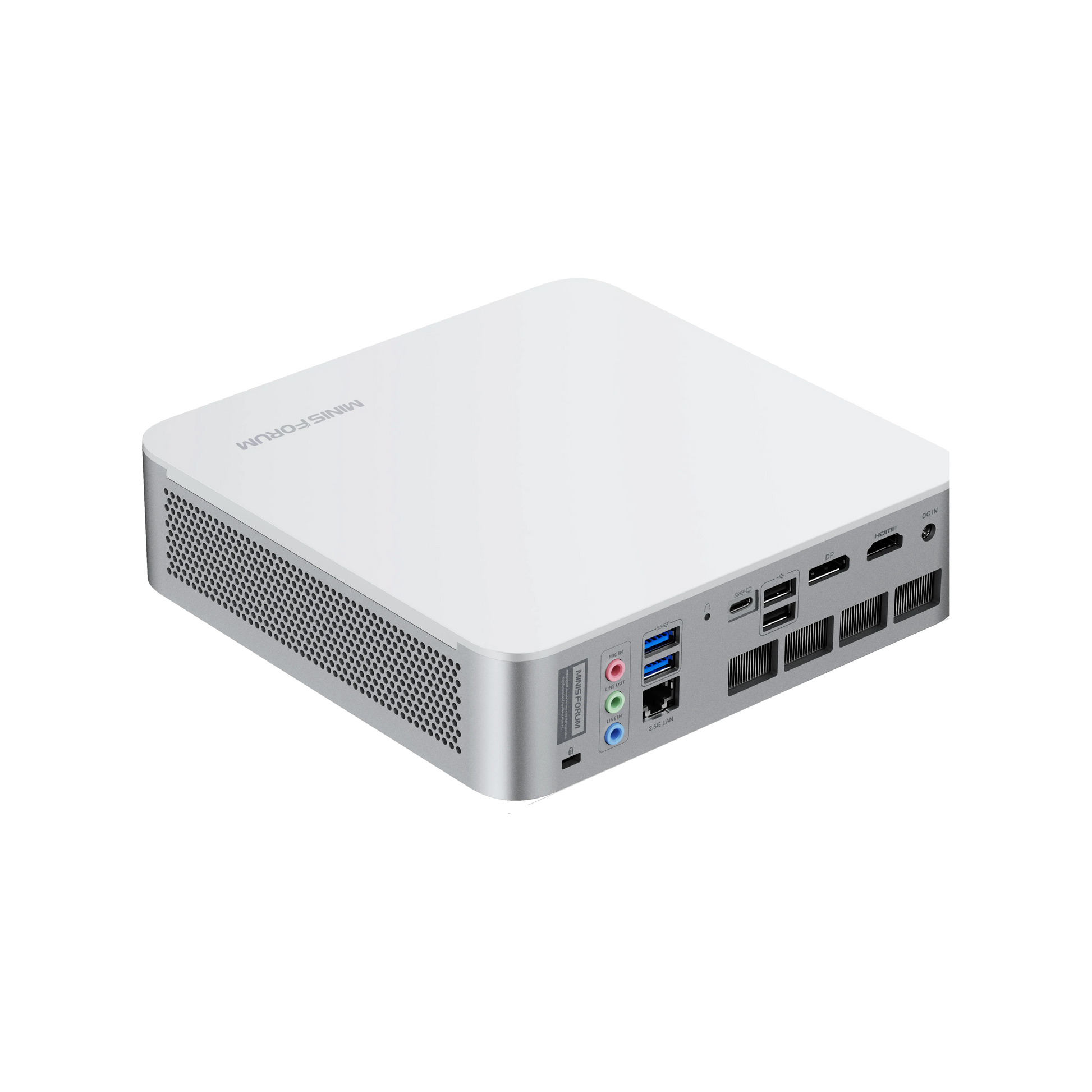

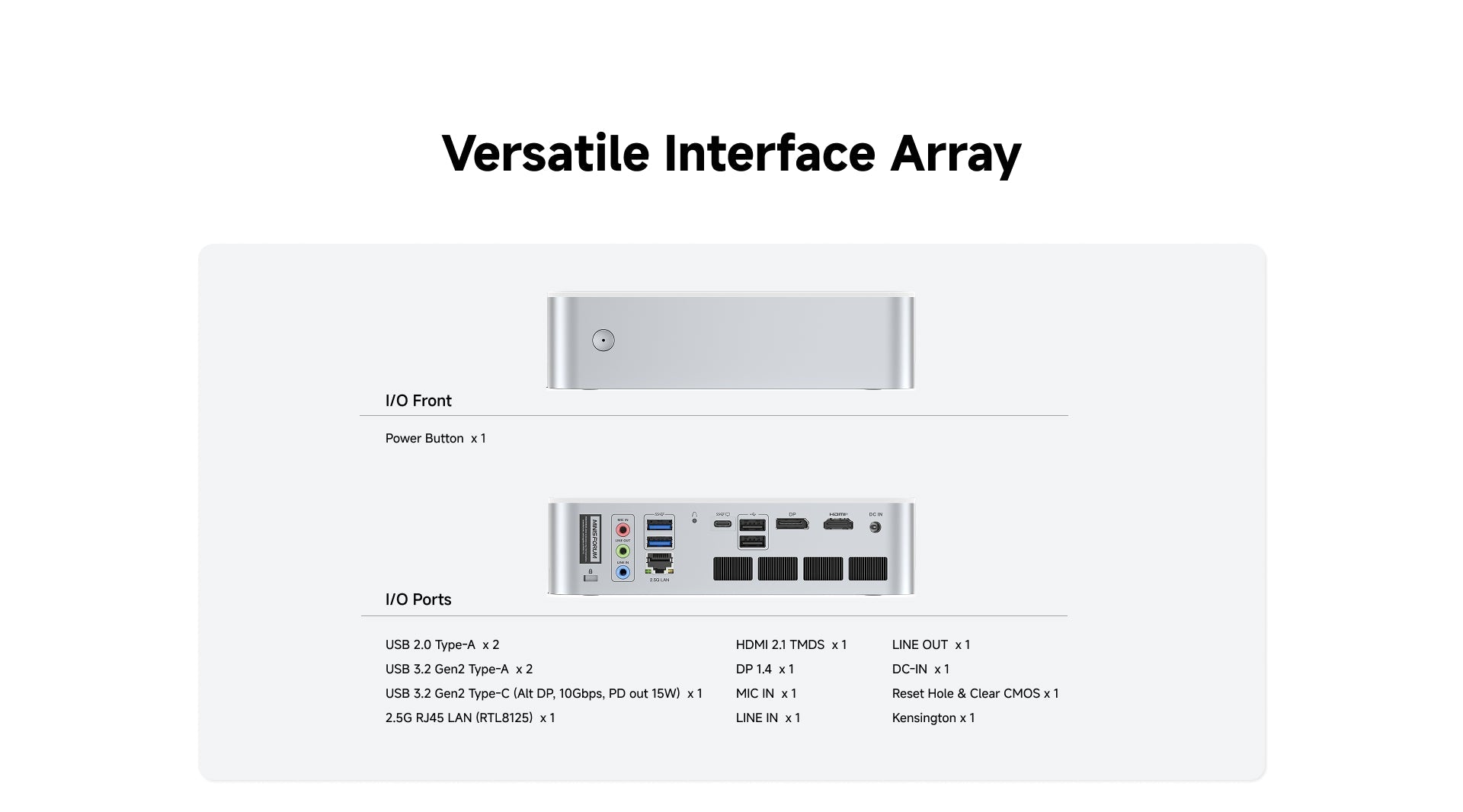

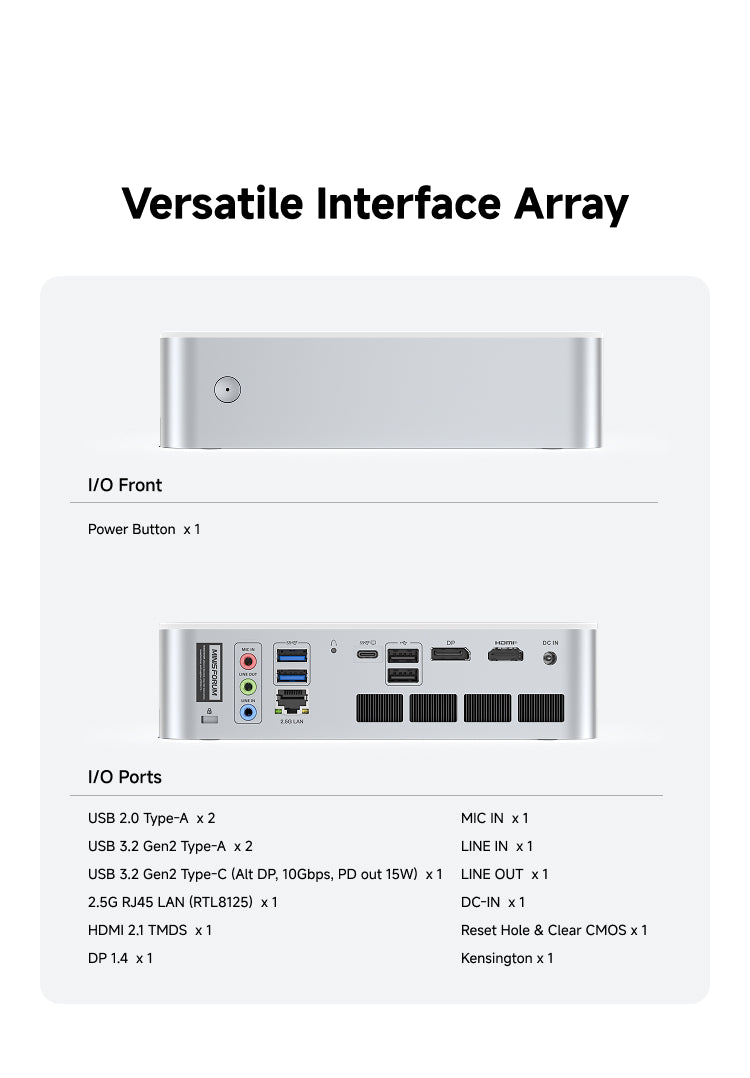

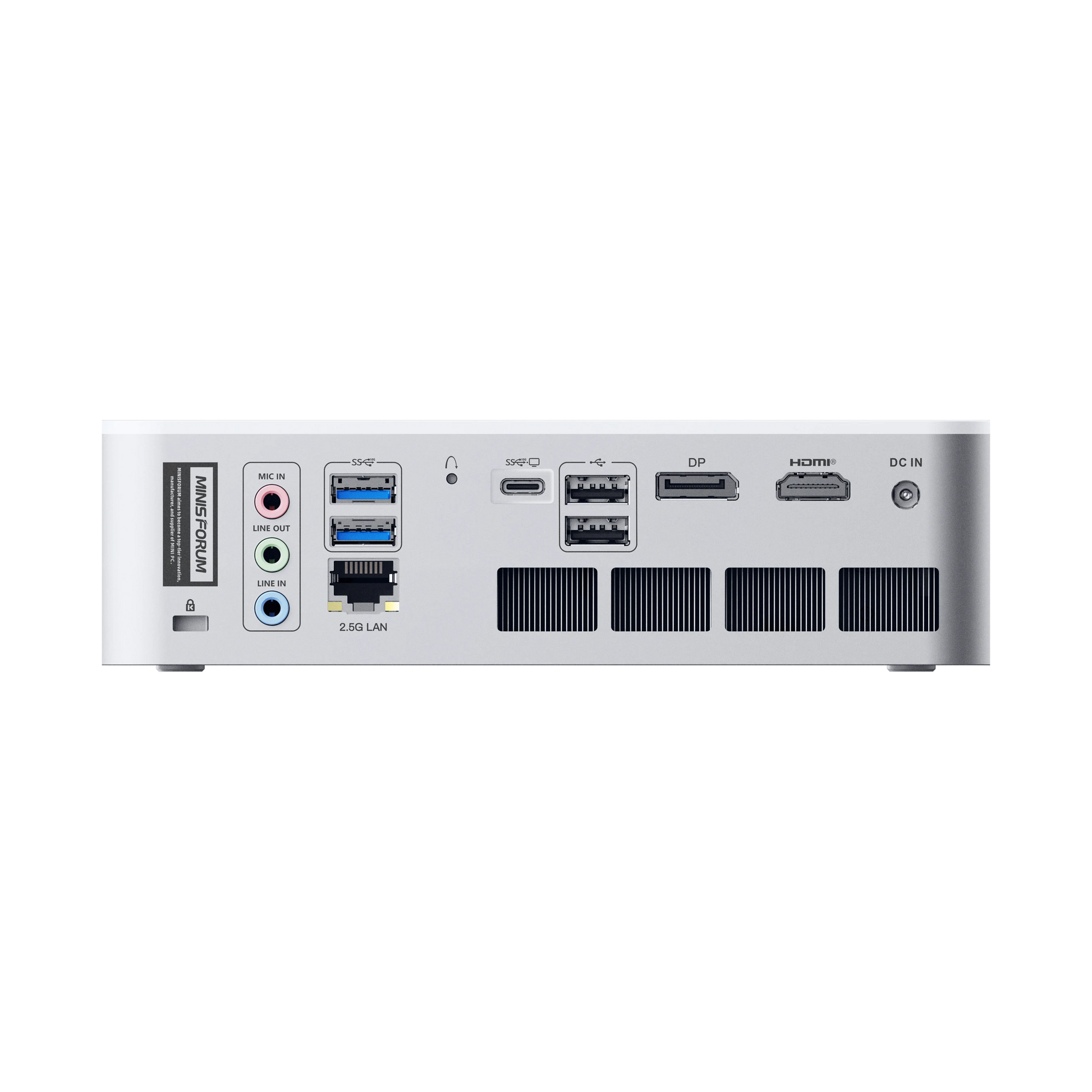

2.5G LAN Port (RJ45) ×1
USB 2.0 Type-A ×2
USB 3.2 Gen2 Type-A ×2
USB 3.2 Gen2 Type-C (Alt DP, 10Gbps, PD out 15W)
DP 1.4 ×1
MIC IN ×1
LINE IN ×1
DC-IN ×1
2.5G LAN Port (RJ45) ×1
USB 2.0 Type-A ×2
USB 3.2 Gen2 Type-A ×2
USB 3.2 Gen2 Type-C (Alt DP, 10Gbps, PD out 15W)
DP 1.4 ×1
MIC IN ×1
LINE IN ×1
DC-IN ×1
Power Button ×1
Reset Hole & Clear CMOS × 1
Kensington x 1
Power Button ×1
Reset Hole & Clear CMOS × 1
Kensington x 1
19V/6.32A (5525mm) 120W
19V/6.32A (5525mm) 120W
Windows 11 Pro
Windows 11 Pro
195 × 193 × 51.9mm
195 × 193 × 51.9mm
1.12 kg
1.12 kg
