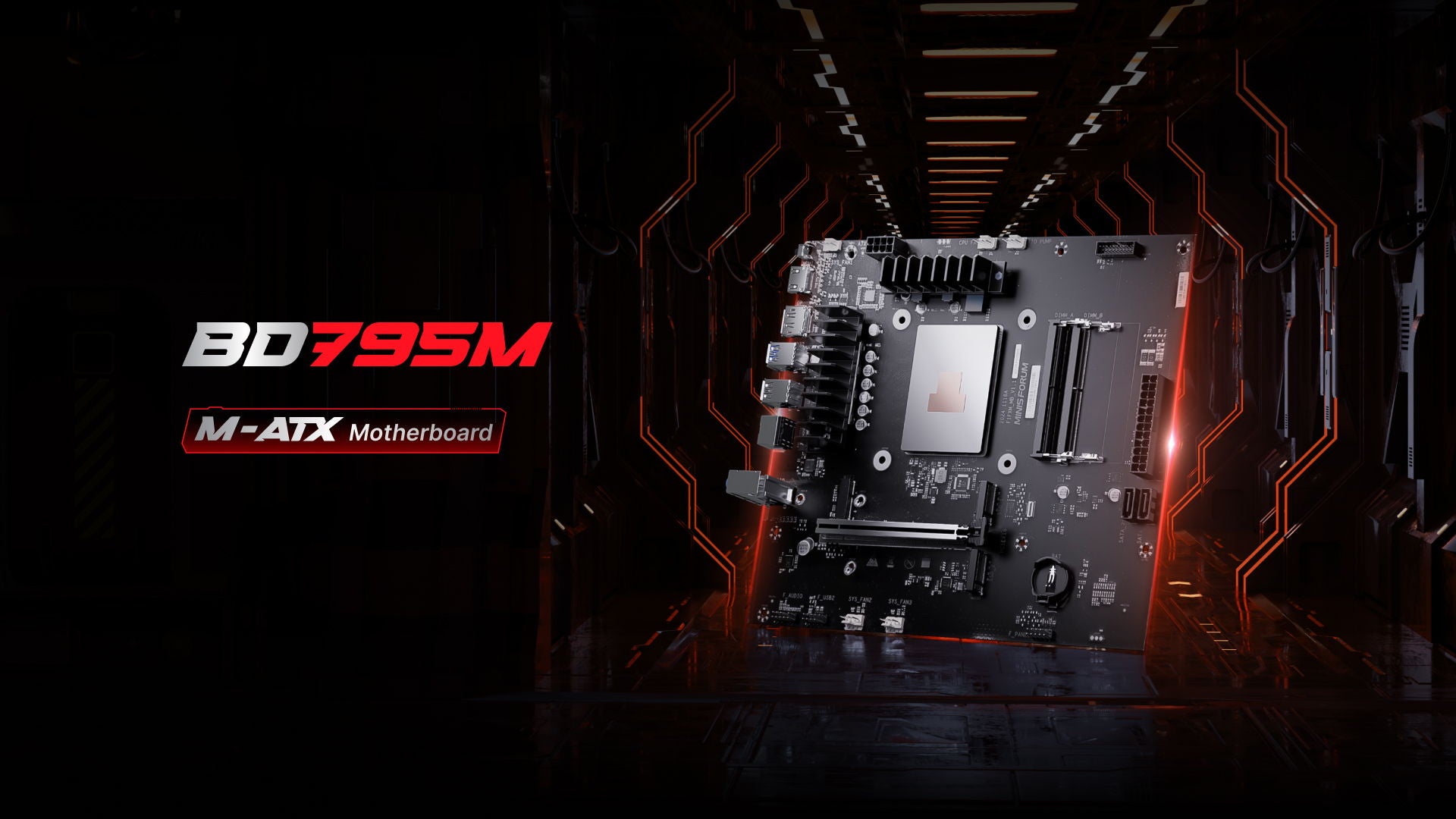

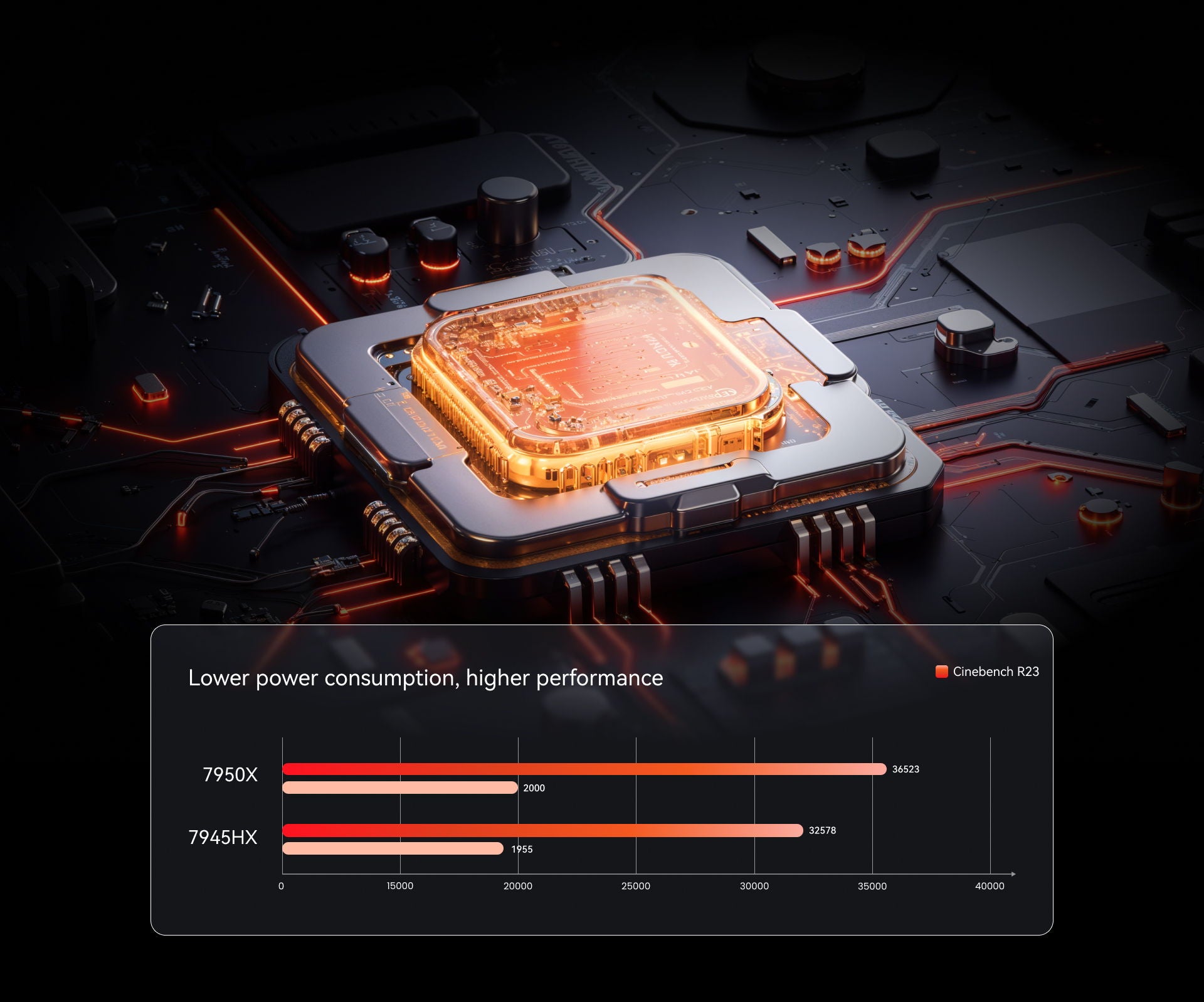

Powerful onboard CPU, Exceptional Performance

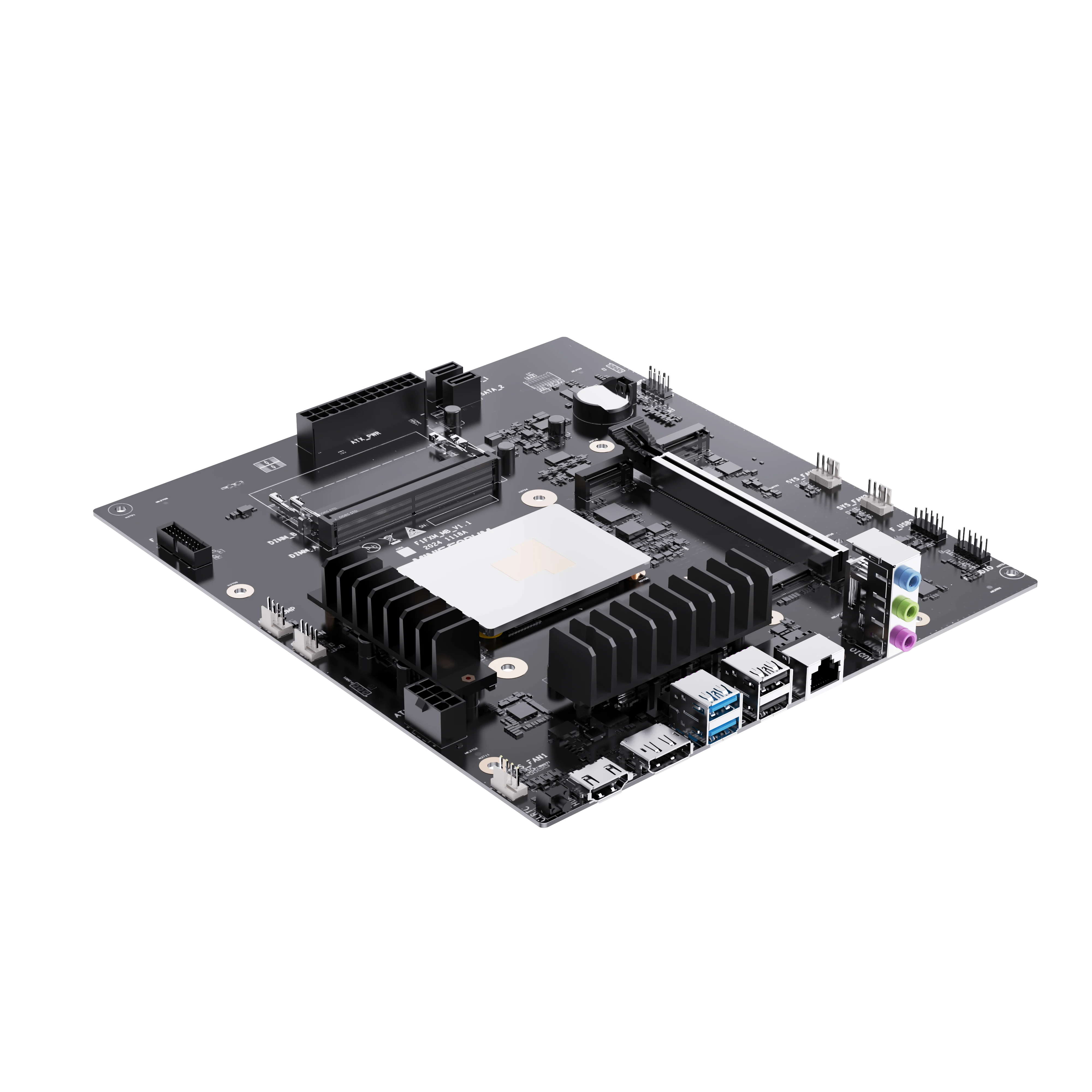

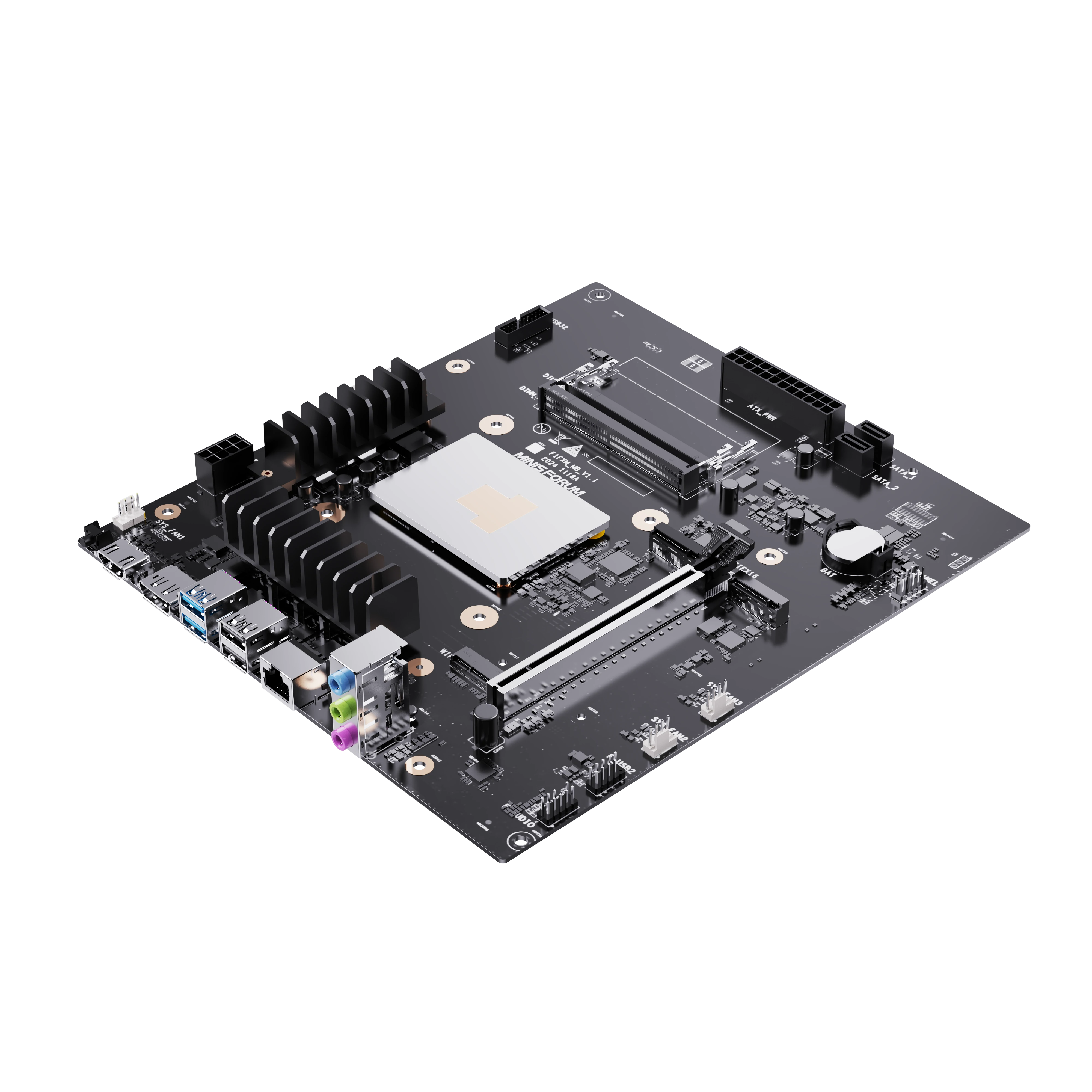

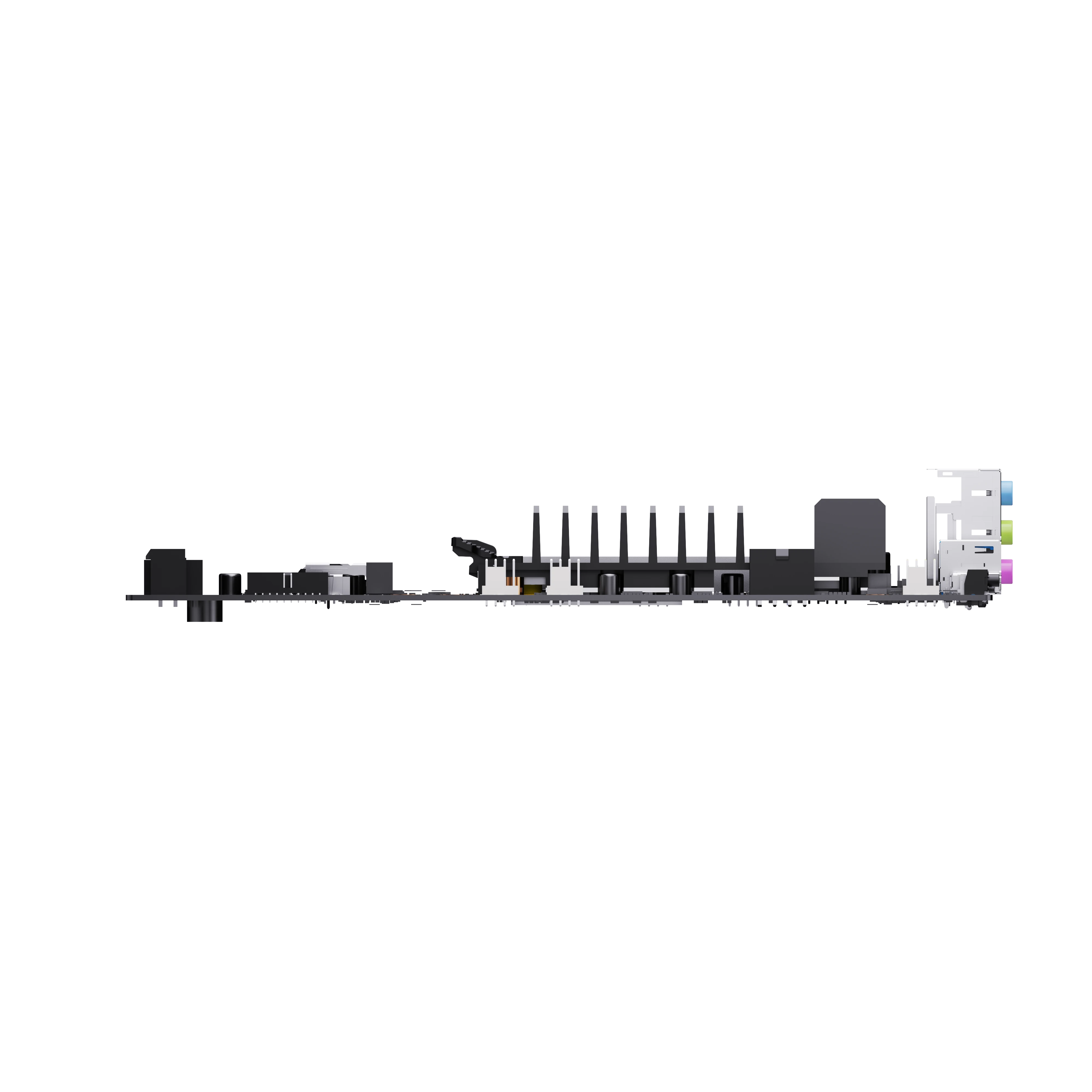

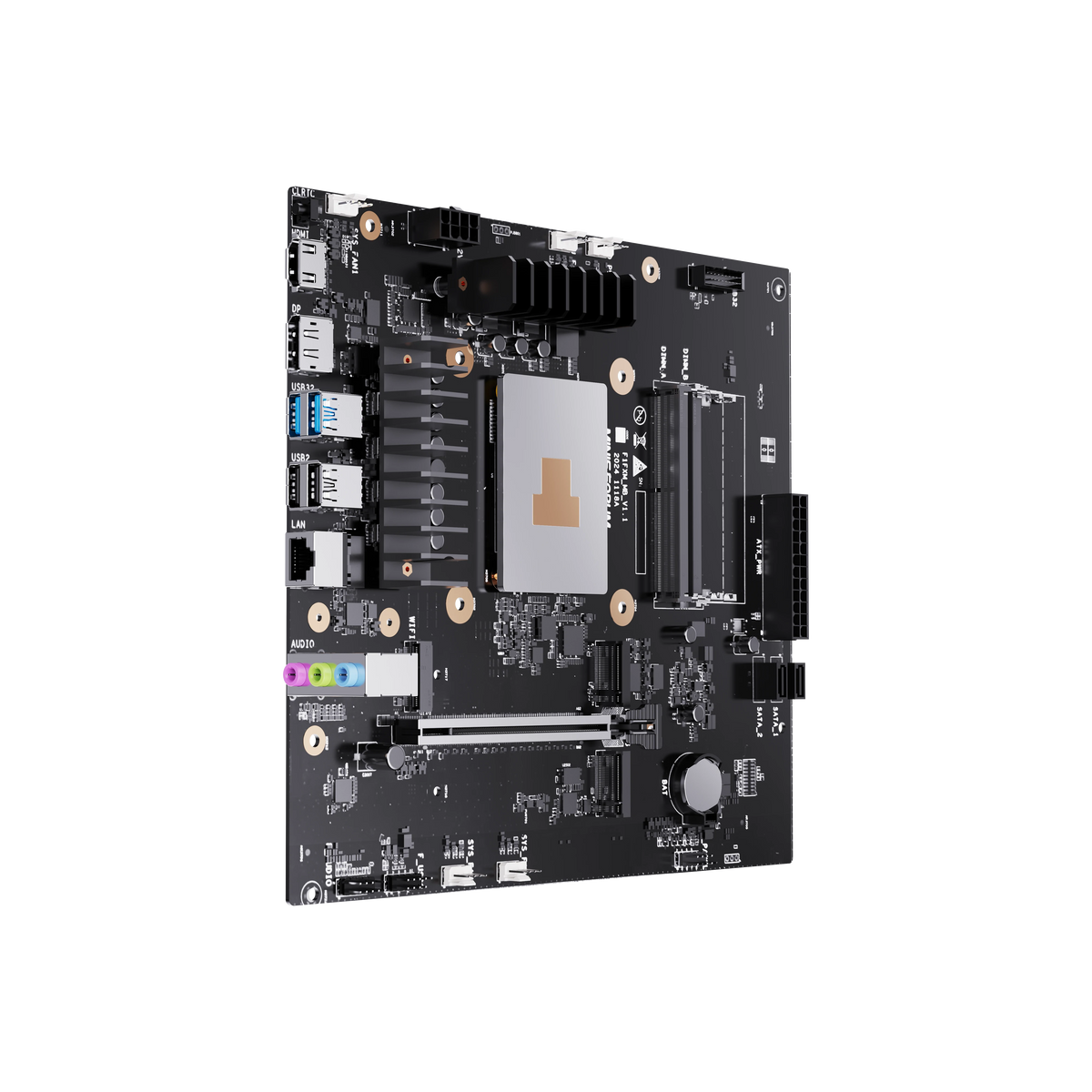

The BD795M motherboard is equipped with the AMD Ryzen™ 9 7945HX processor,with 16 cores and 32 threads, up to 5.4 GHz, bringing you unprecedented powerful computing power.

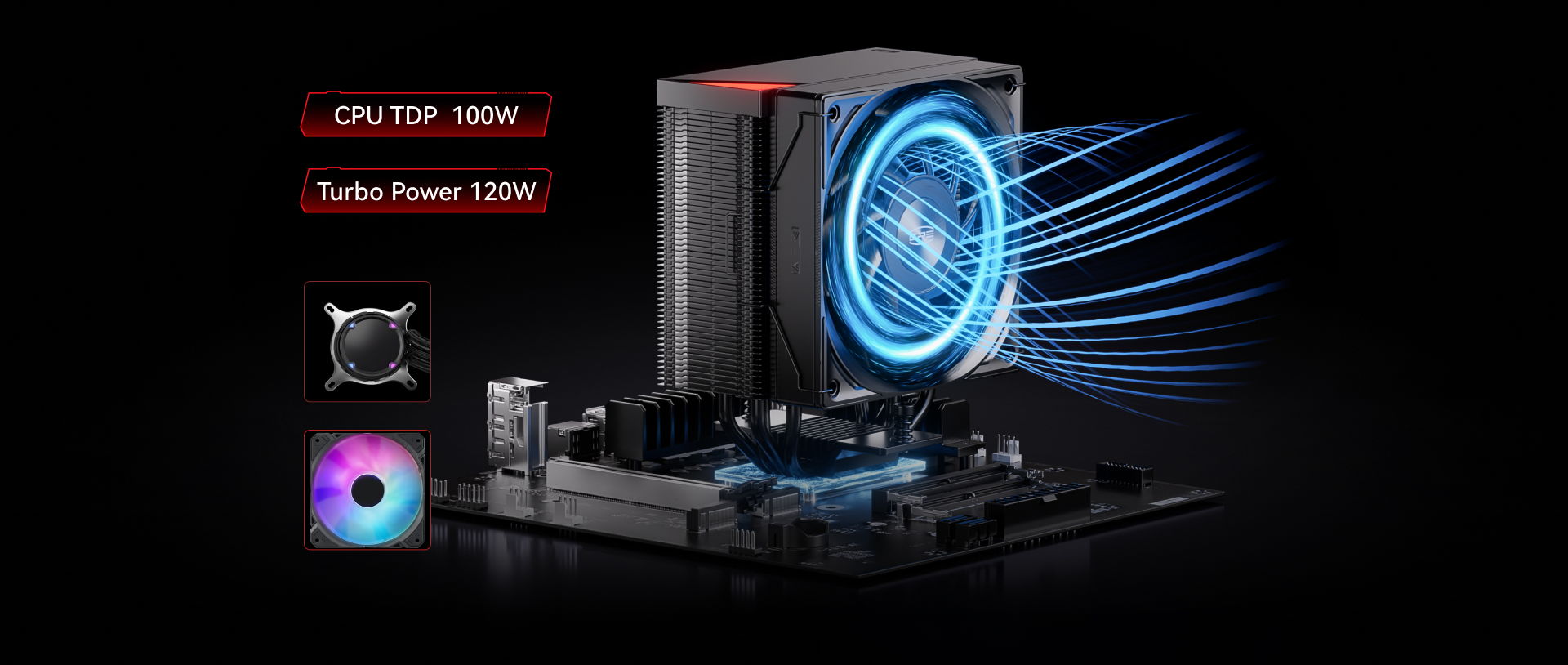

Radiator specifications
Supports standard LGA 1700 air cooling/liquid cooling radiator.
Integrated graphics for smooth visuals
Equipped with AMD Radeon™ 610M integrated graphics, it can provide you with dual-screen display and excellent graphics processing capabilities even without a discrete graphics card installed, allowing you to enjoy a smooth visual experience in multimedia applications.
Advantages of MoDT

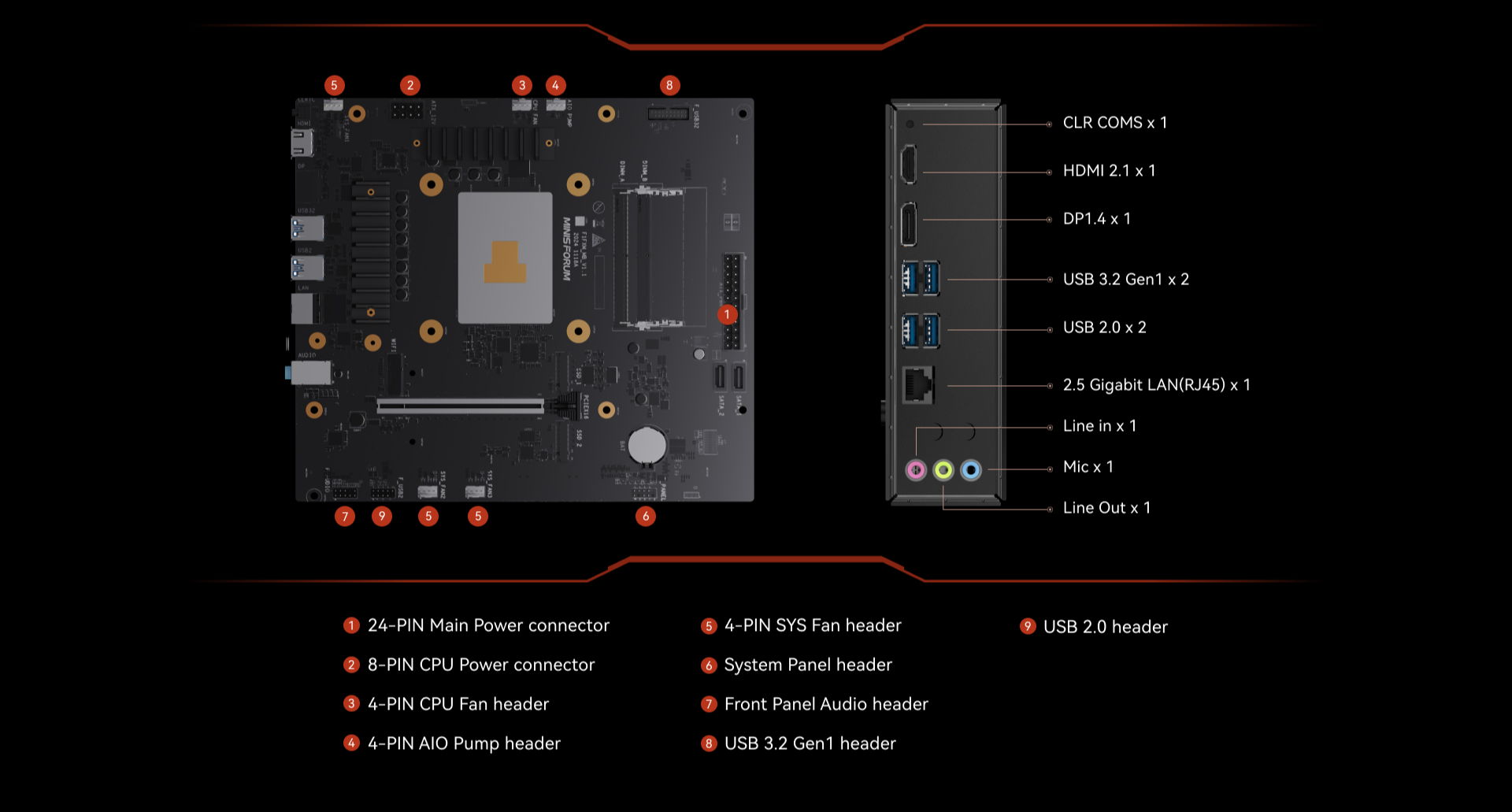

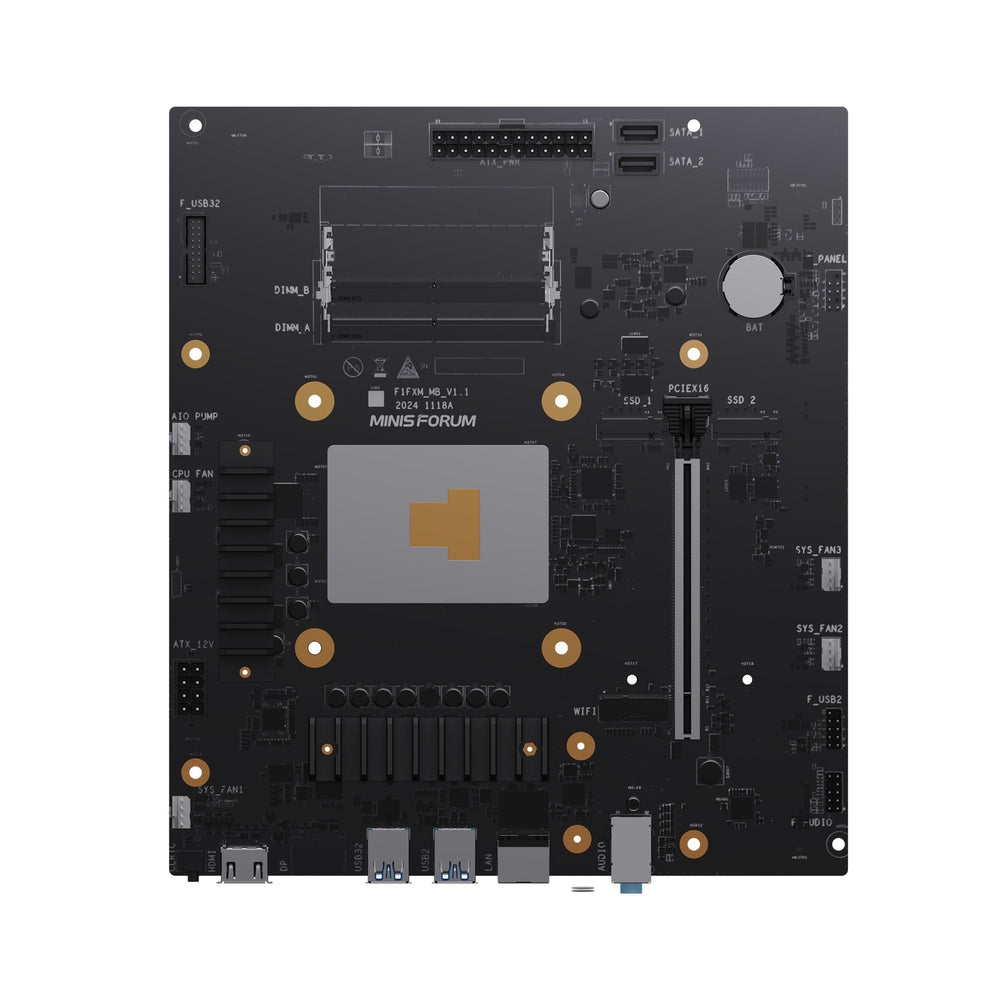

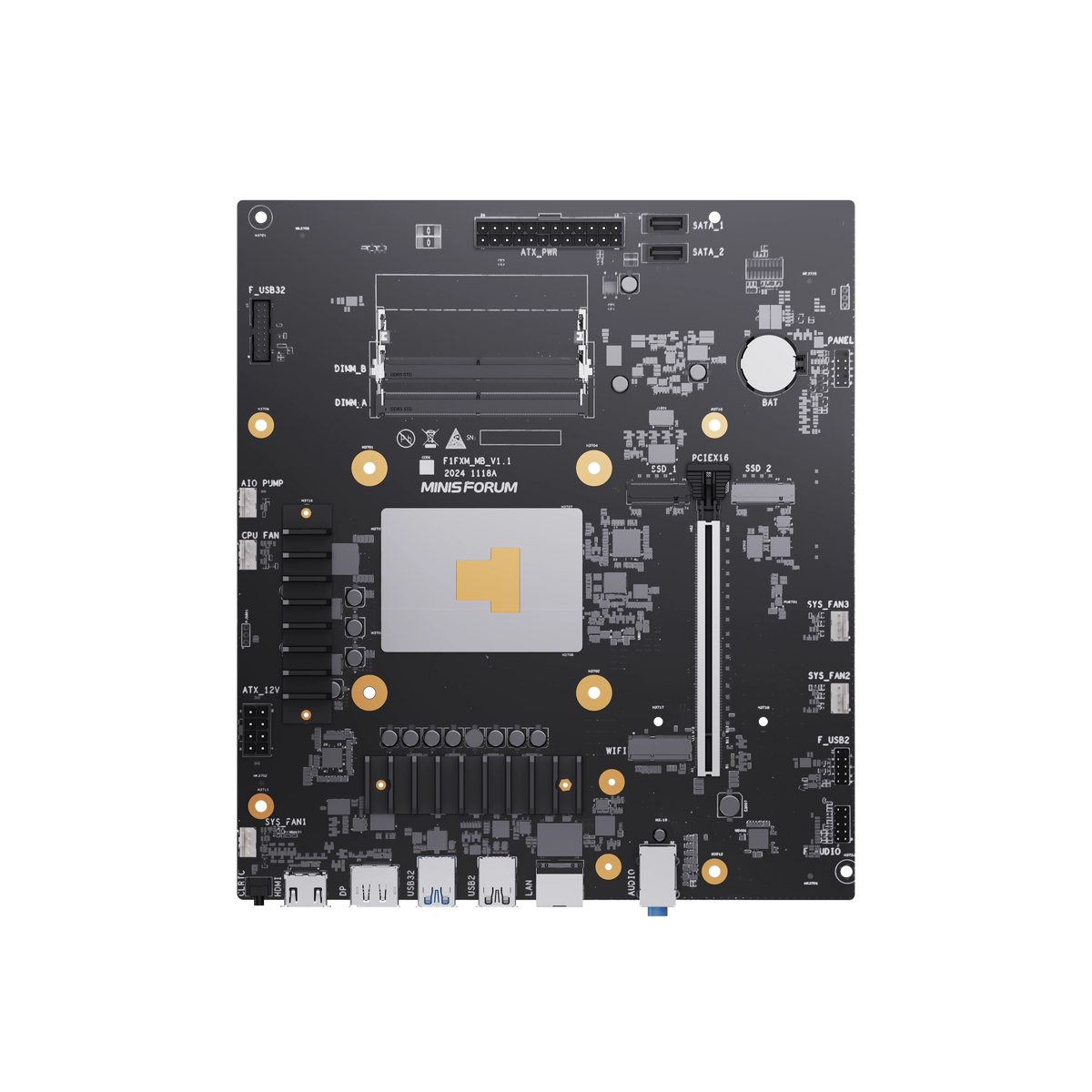

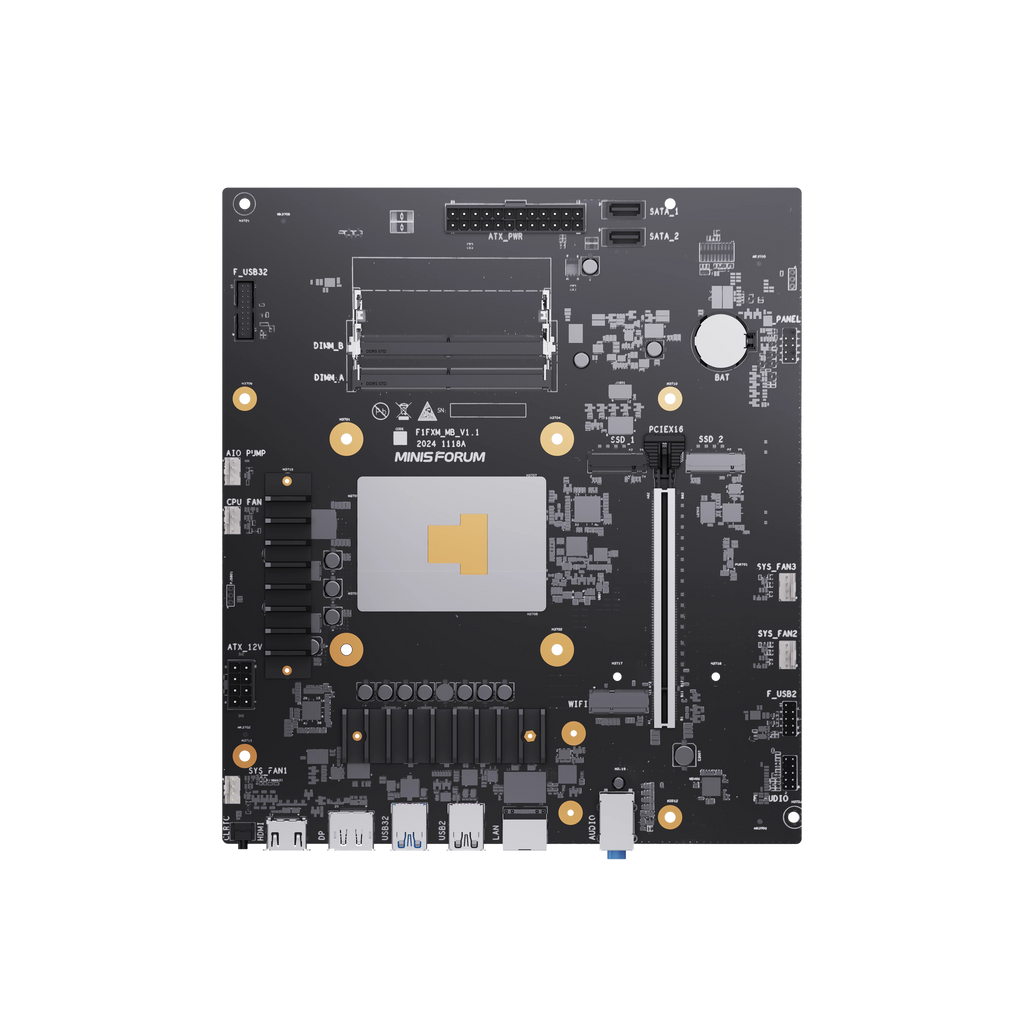

Headers & Connectors

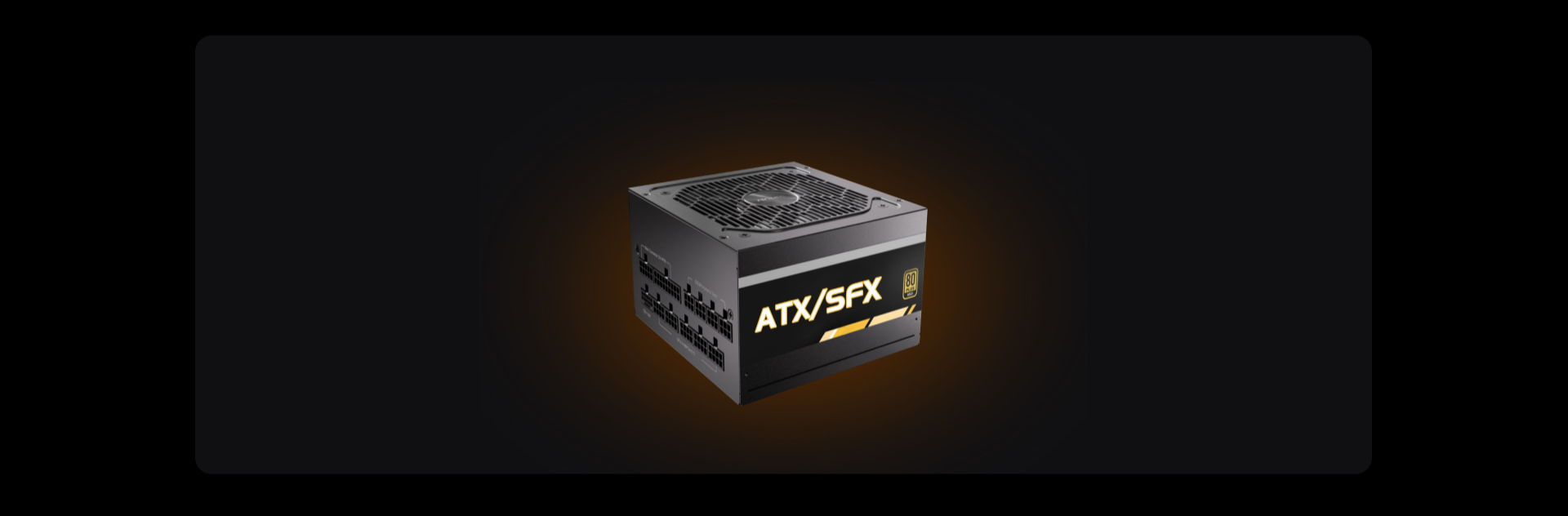

Power supplier selection
The BD795M motherboard is recommended to be paired with an ATX standard power supply (>200W) to ensure stable power delivery, achieving the perfect balance of high performance, reliability, and convenience.
Specification
MINISFORUM BD795M
AMD Ryzen™ 9 7945HX
AMD Radeon™ 610M

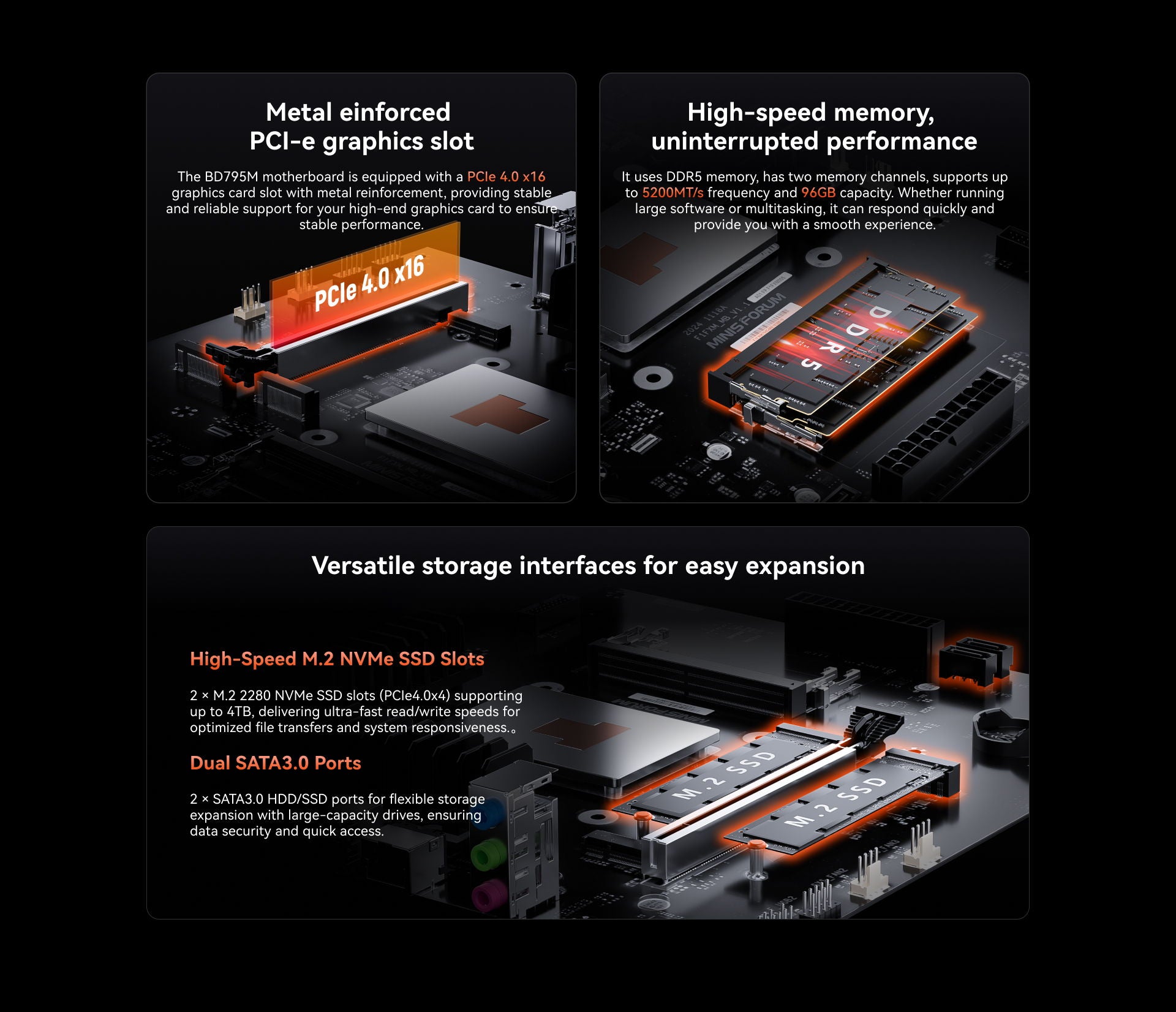

DDR5 Dual channel (SODIMM Slots×2, up to 5200 MT/s, Max 96GB)
2xM.2 2280 NVME SSD Slot (up to 4TB)(PCle4.0x4)
2xSATA HDD/SSD Slot (SATA3.0)
1 x24-pin Main Power connector
1 x8-pin +12V CPU Power connector
1 x4-pin CPU Fan header
1 x4-pin Alo Pump header
3 x4-pin SYS Fan header
1 xSystem Panel header
HDMI 2.1 FRL x1 (Up to 8K@60Hz/4K@120Hz)
DP1.4 x1 (Up to 8K@60Hz/4K@120Hz)
HDMI x1
Line Out x1
Line in x1
Mic x1
2.5Gigabit LAN(RJ45) x 1
USB Type A(USB2.0) x2
USB Type A(USB3.2 Gen1) x2
HDMI 2.1 x1
DP 1.4 x1
Line in x1
Line Out x1
Mic *1

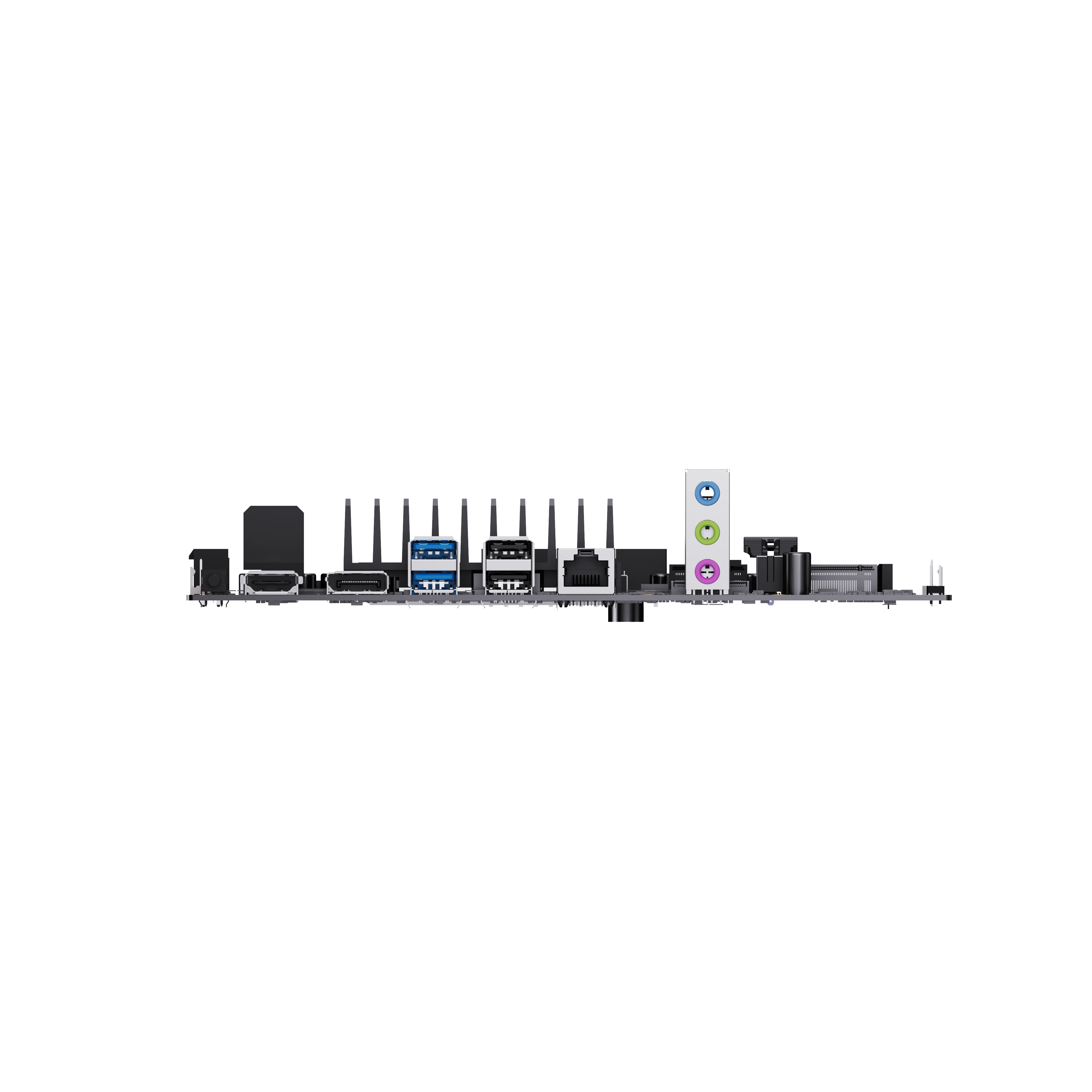

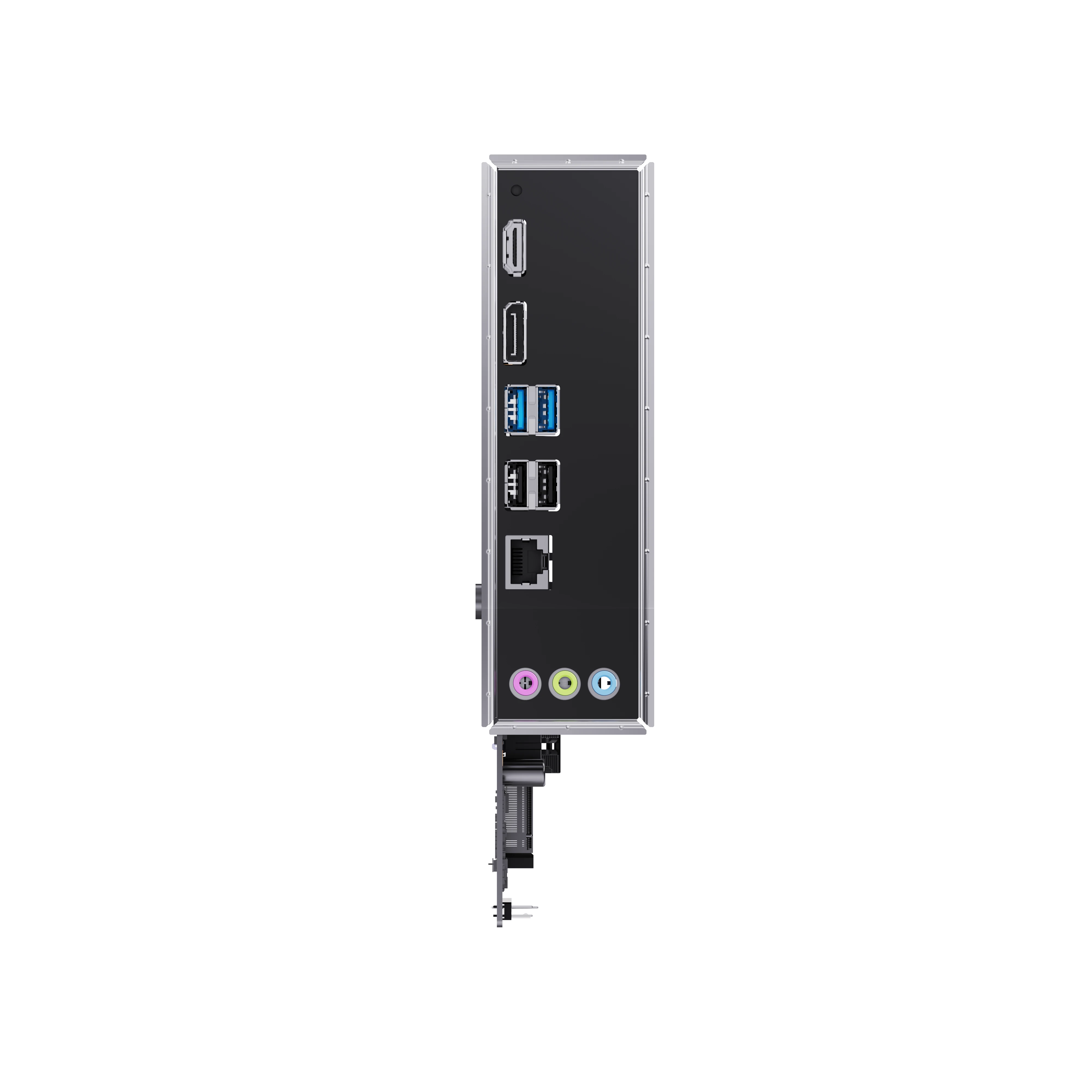

I/O Ports
CLR COMS x1
ATX Power(>200W)
Windows 11
240x220x1.6mm(LWH)
457g
